Product details
Description

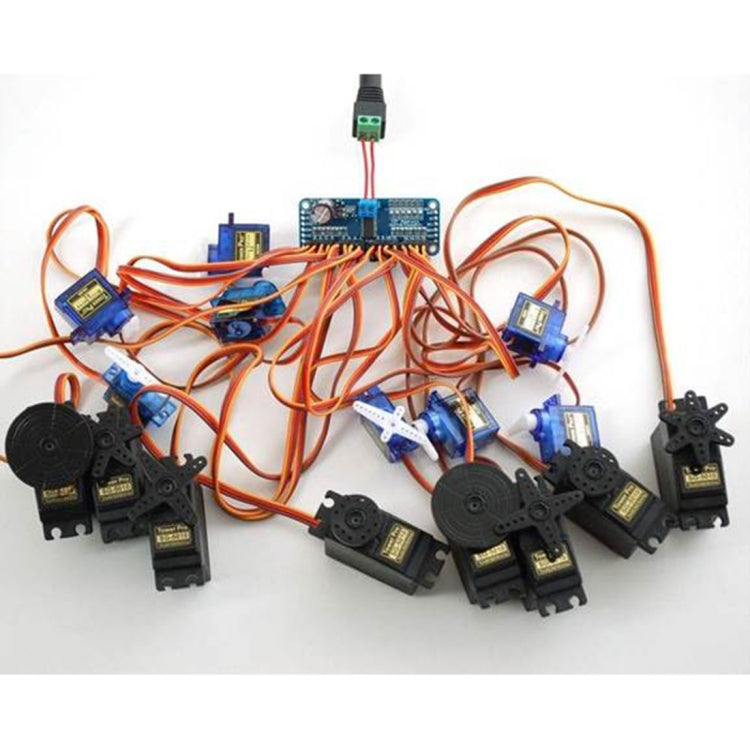

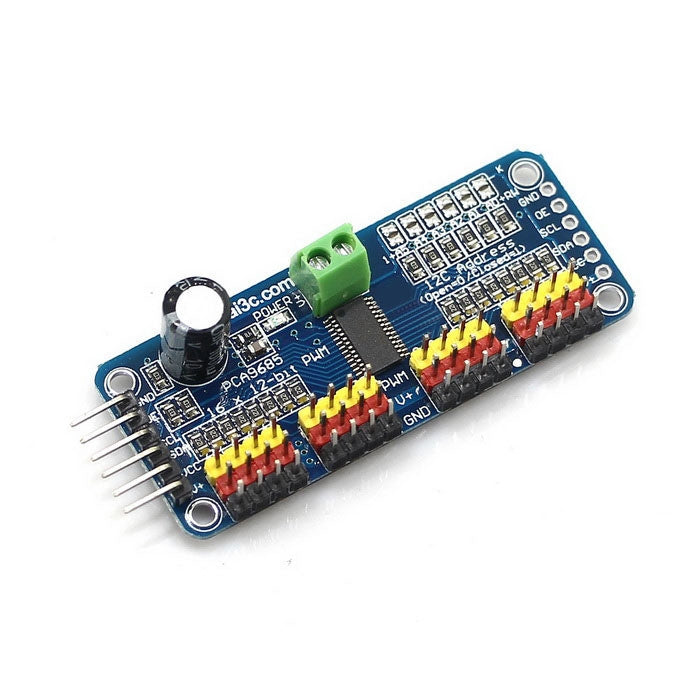

The 16 Channel PWM Servo Motor Controller is an I2C controlled PWM driver board designed for Arduino projects. It allows users to connect multiple servo motors, making it suitable for complex DIY robotics and automation tasks.
- Product Type: Other Accessories
- Compatibility: Arduino
- Key Feature: I2C controlled PWM driver
- Frequency Modulation: About 1.6KHz PWM output
- Chip: PCA9685
- Power Input Terminal: Yes
- Power Indicator Light: Green
- Number of Servos Supported: 16
- Address Select Pins: 6 (allows connection of up to 62 driver boards)
- Total PWM Channels: 992 (when using multiple boards)
- Voltage Control: 3.3V MCU to control output up to 6V
- Reverse Polarity Protection: Yes
- Cascade Design: Yes
- Capacitor: Bulky capacitor on V+ line
- Resistance: 220 ohm on all PWM output lines
