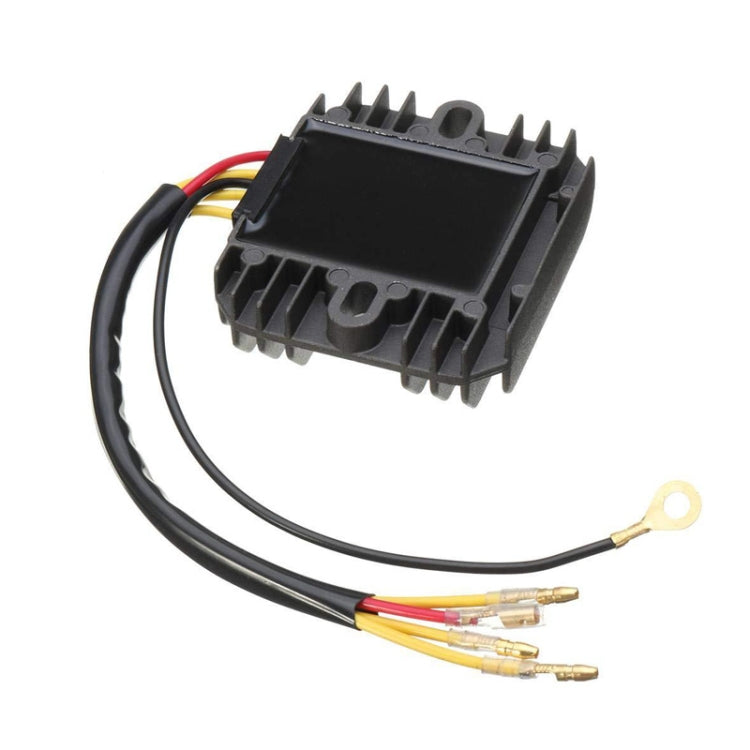

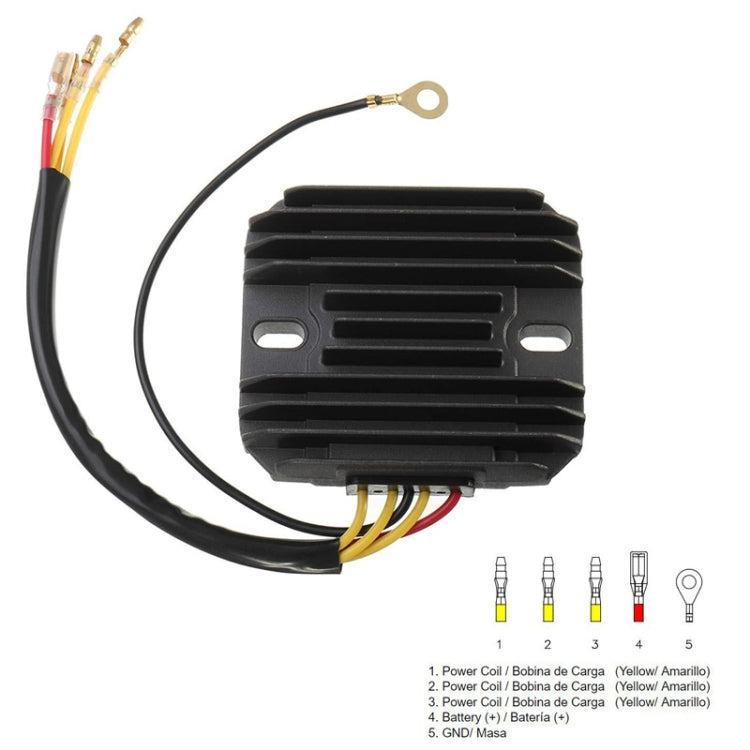

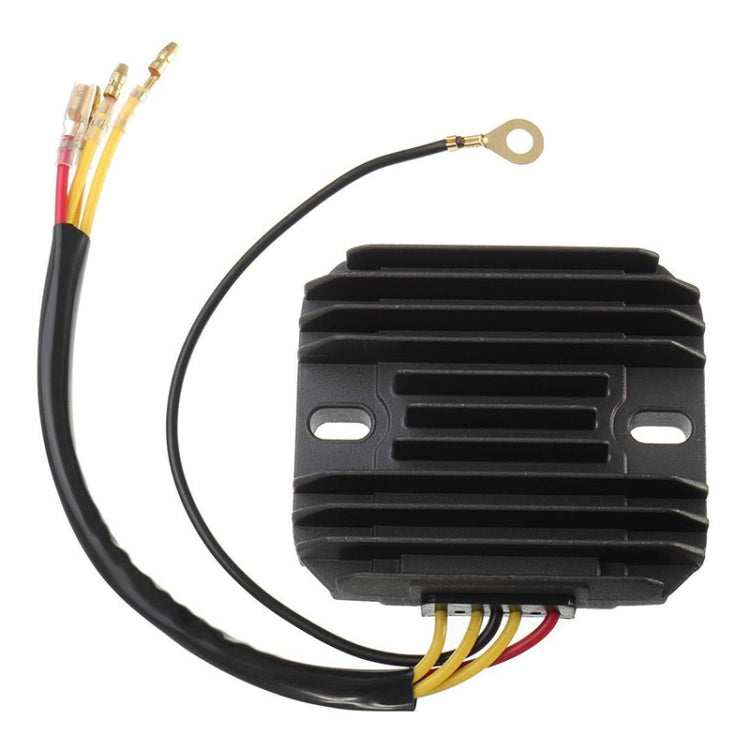

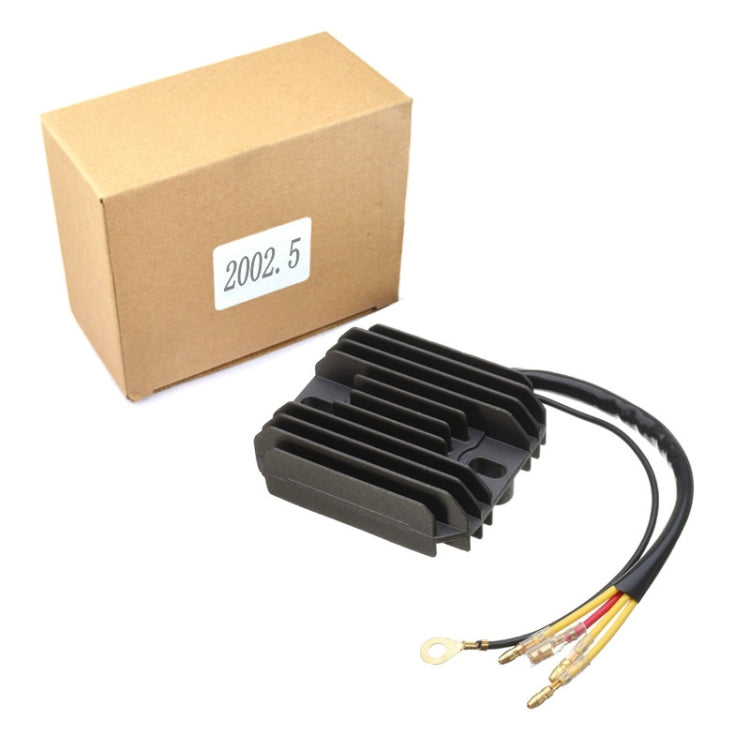

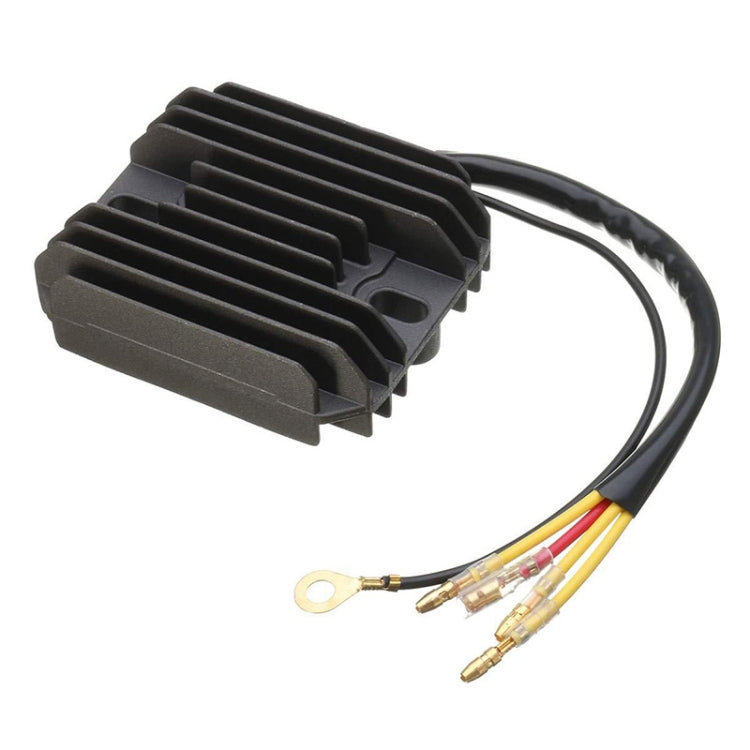

2002.5 Motorcycle Rectifier For Suzuki 32800-49X50 / 32800-47121
2002.5 Motorcycle Rectifier For Suzuki 32800-49X50 / 32800-47121
Sale
Sold out
Pre-order
Regular price
R 519.00
Regular price
Sale price
R 519.00
Unit price
per
Pay in monthly instalments with
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Type:
Voltage Stabilizer
Description
1. Weight: 240g
2. Wire length: 25CM
3. Output voltage: 14.5V
4. Output current: 25A
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Pay attention that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.
Applicable models:
For 2352 25A
For Reemplazo Shin Ngen SH590A-13
For Suzuki-32800-49X50
For Suzuki-32800-47121
For Suzuki GS T 750 1982 1983 32800-47120
For Suzuki GS L 450 1982 32800-44120
For Suzuki GS E 650 1981 1982 32800-47020
For Suzuki GS E 500 1982 1983 32800-47120
For Suzuki GS T 450 1996 32800-44040
For Suzuki GS S 1100 1983 32800-49320
For Suzuki GS 1100 1980 1981 32800-45210
For Suzuki GS S 450 1980 1982 32800-44040
For Suzuki GS GL 850 1982 1983 32800-49310
For Suzuki GS S 1000 1982 32800-45250
For Suzuki GS M 550 1981 1982 32800-47020
For Suzuki GS GL 850 1982 1983 32800-47120
For Suzuki GS GT / GX 1000 1996 32800-45240
For Suzuki GS 750 1980 1981 32800-45210
For Suzuki GS E / S 1000 1980 32800-45210
For Suzuki GS 425 1992 32800-44030
For Suzuki GS GT 850 1996 32800-45210
For Suzuki GS G 850 1979 32800-45110
For Suzuki GS T 550 1981 32800-47020
For Suzuki GS G / GL 1000 1980 1981 32800-45240
For Suzuki GS L 550 1980 1982 32800-47020
For Suzuki GS 550 1979 1980 32800-44040
For Suzuki GS TX 250 1999 32800-44040
For Suzuki GS E 425 1979 32800-44030
For Suzuki GS 1000 1996 32800-45210
For Suzuki GS EX 550 1981 32800-47020
For Suzuki GS T / TX 450 1981 1982 32800-44120
For Suzuki GS E 450 1980 1982 32800-44040
For Suzuki GS S 750 1983 32800-49320
For Suzuki GS G / GL 1000 1980 1981 32800-49140
For Suzuki GS G / GL 850 1980 1981 32800-45210
For Suzuki GS E 750 1982 32800-49140
For Suzuki GS GX 850 1999 32800-45210
For Suzuki GS L 450 1999 32800-44120
For Suzuki GS L 450 1980 1982 32800-44040
For Suzuki GS TT 250 1996 32800-44040
For Suzuki GS E 1100 1980 1981 32800-49310
For Suzuki GS L 750 1979 32800-45110
For Suzuki GS T 250 1980 1981 32800-44040
For Suzuki GS 850 1986 32800-45110
For Suzuki GS L 450 1996 32800-44120
For Suzuki GSX 400 1996 32800-44040
For Suzuki GSX 1100 1980 1981 32800-45210
For Suzuki GSX 750 1981 32800-45210
For Suzuki GSX 400 1999 32800-44040
For Suzuki GSX S 750 1982 1983 32800-45250
For Suzuki GSX 750 1982 1983 32800-49320
For Suzuki GSX 750 1999 32800-45210
For Suzuki GSX S 1000 1982 32800-45250
For Suzuki GSX 750 1996 32800-45210
For Suzuki LT QuadRunner 230 1987 1993 32800-49X51
For SH590A-13 Suzuki-32800-49X50
For Suzuki-32800-47121
For Suzuki GS L 550 1980 1982 32800-47020
For Suzuki GS G / GL 1000 1980 1981 32800-45240
For Suzuki GS GT / GX 1000 1996 32800-45240
For Suzuki GS T 550 1981 32800-47020
For Suzuki GS G 850 1979 32800-45110
For Suzuki GS GT 850 1996 32800-45210
For Suzuki GS 425 1992 32800-44030
For Suzuki GS L 450 1996 32800-44120
For Suzuki GS 850 1986 32800-45110
For Suzuki GS T 250 1980 1981 32800-44040
For Suzuki GS E 650 1981 1982 32800-47020
For Suzuki GS TX 250 1999 32800-44040
For Suzuki GS 550 1979 1980 32800-44040
For Suzuki GS 1100 1980 1981 32800-45210
For Suzuki GS S 1100 1983 32800-49320
