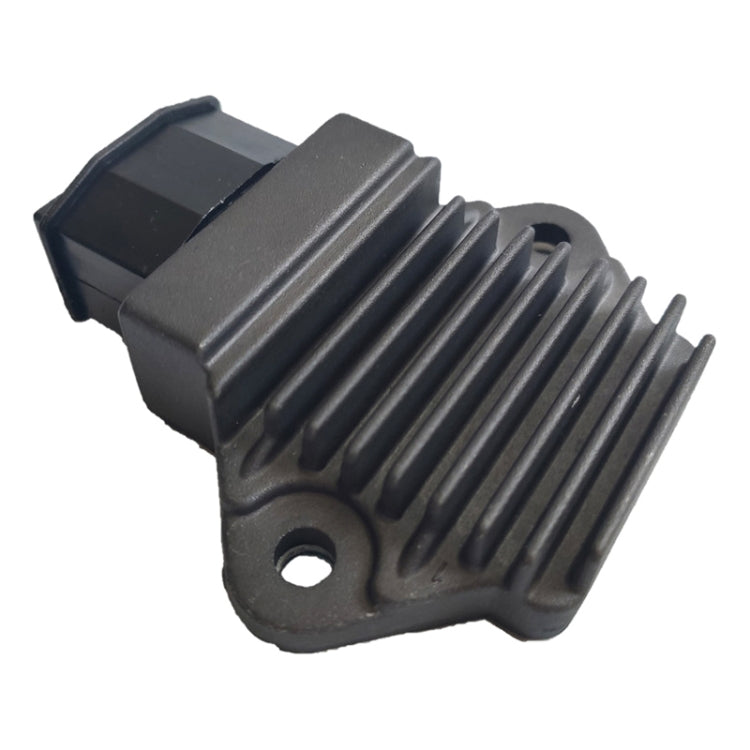

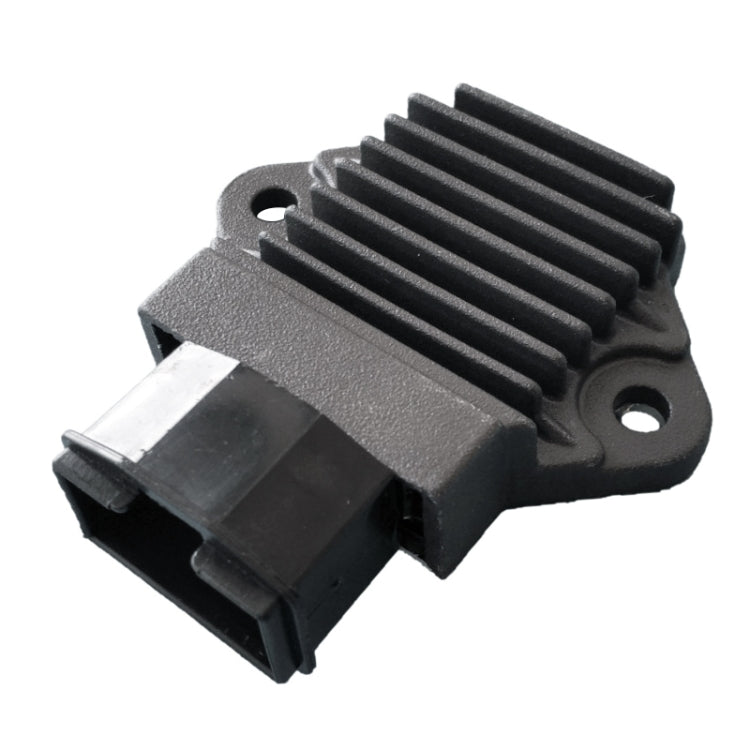

Product details
Description
1. Weight: 115G
2. Output voltage: 14.5V
3. Category: single-phase full-wave rectifier
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier

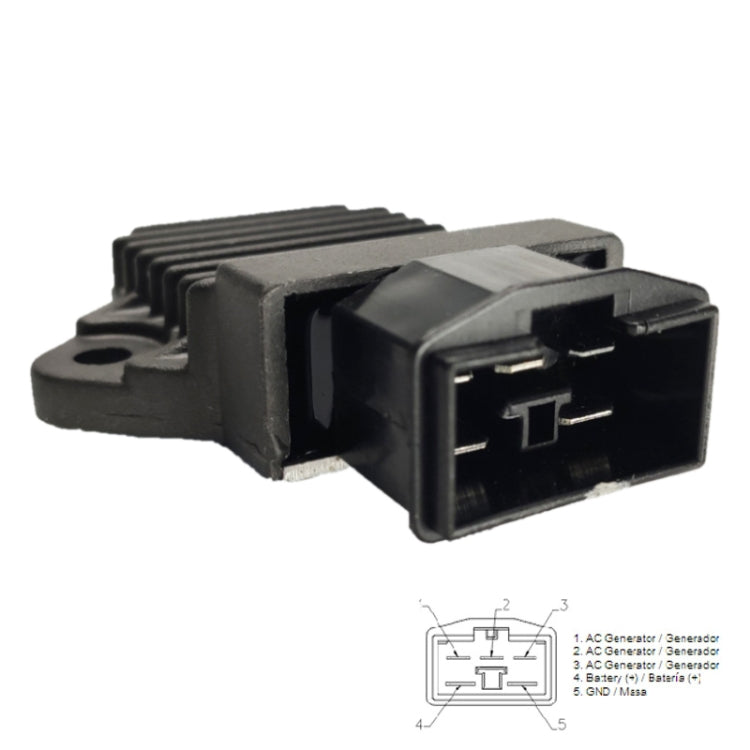

2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.

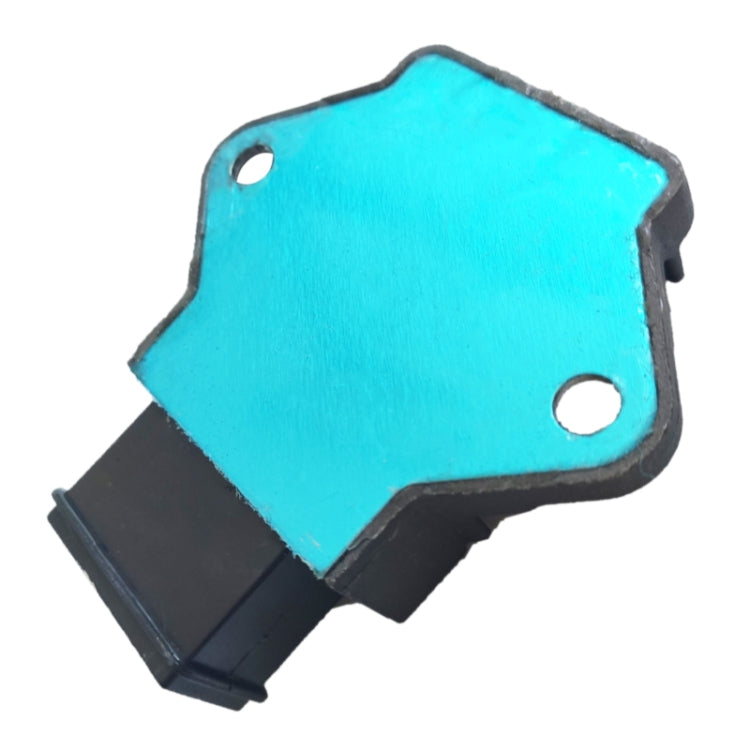

3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models:
For Honda CB S 600 2004 2007 31600-KFG-861
For Honda CB F 600 2004 31600-KFG-861
For Honda CB F 400 1989 1990 31600-KY2-702
For Honda CB Nighthawk A/AC 250 1991 2000 31600-KBG-008
For Honda CB HORNET 600 1998 2006 31600-KFG-861
For Honda CBR F2/F3/F4 600 1991 2000 31600-MV4-010
For Honda CBR A/AC 900 1993 1999 31600-MV4-010
For Honda CBR SE Hurricane A/AC 600 1998 31600-MV4-010
For Honda CBR SJR Replica A/AC 600 1996 31600-MV4-010
For Honda CBR RR W X SC33 900 1992 1999 31600-MV4-010
For Honda CBR Hurricane 600 1991 2000 31600-MV4-010
For Honda NTV AUVILLE 650 1998 2001 31600-KFG-861
For Honda NV C2 V W X 750 1997 2004 31600-MV4-010
For Honda VT SHADOW 750 1997 2003 31600-MV4-010
For Honda VT CA/CAC/CD/CD2 750 1998 2000 31600-MV4-010
For Honda VTR F A/AC 1000 1997 2000 31600-MV4-010
For Honda VTR NC29 / NC30 / NC31 1000 2002 2005 31600-MV4-010
For Honda XLV Vara ro 1000 1999 2000 31600-MV4-010
