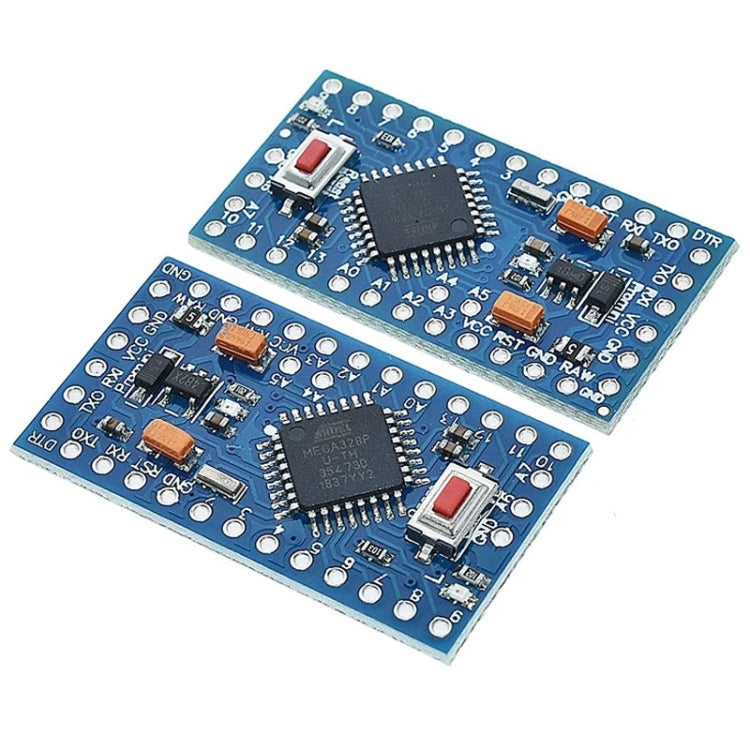

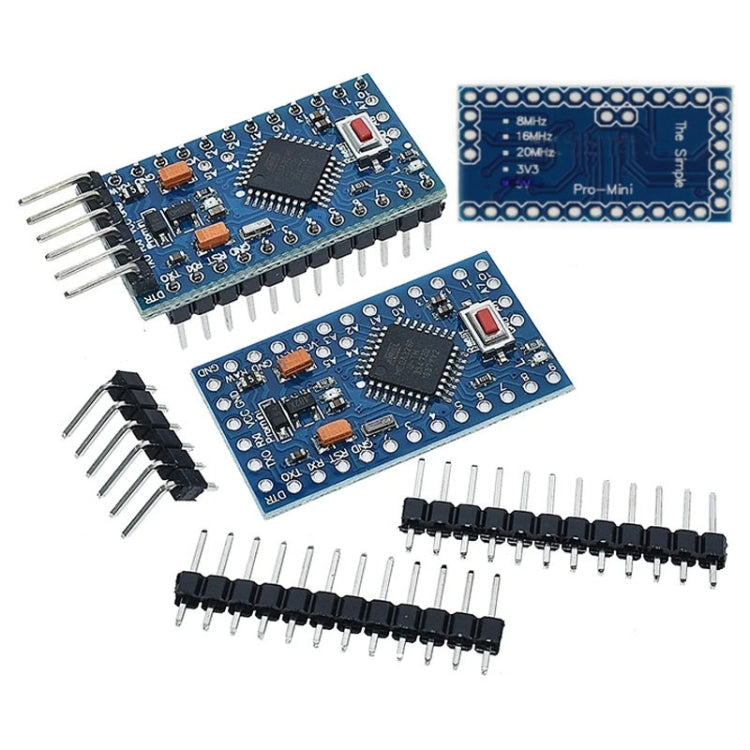

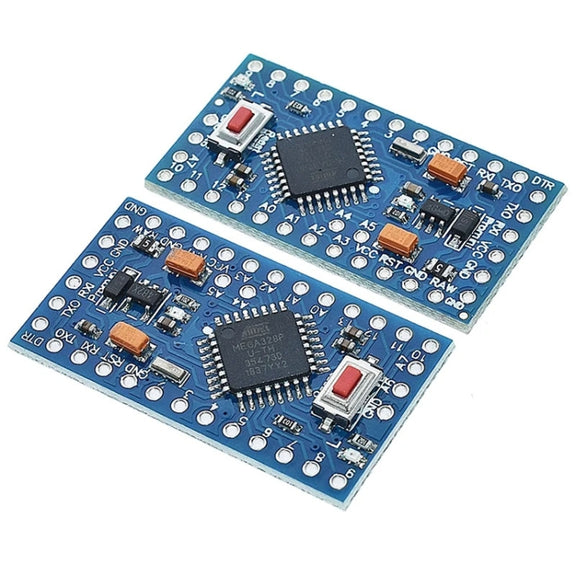

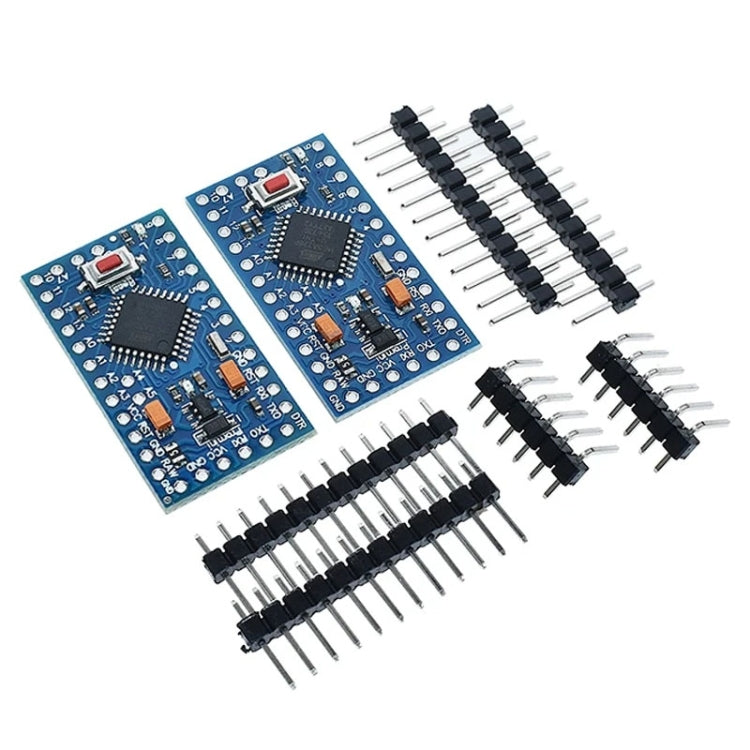

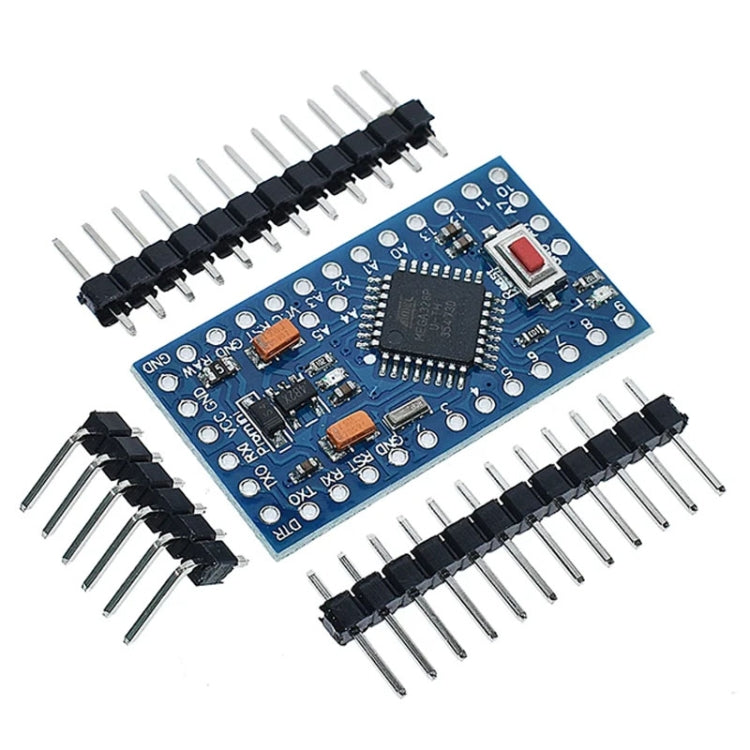

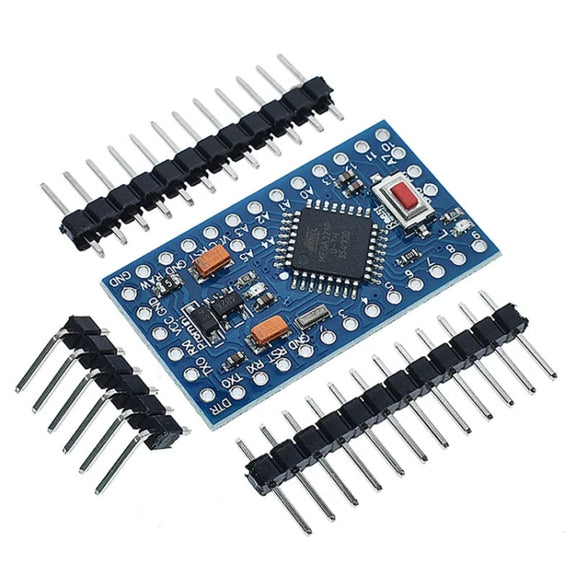

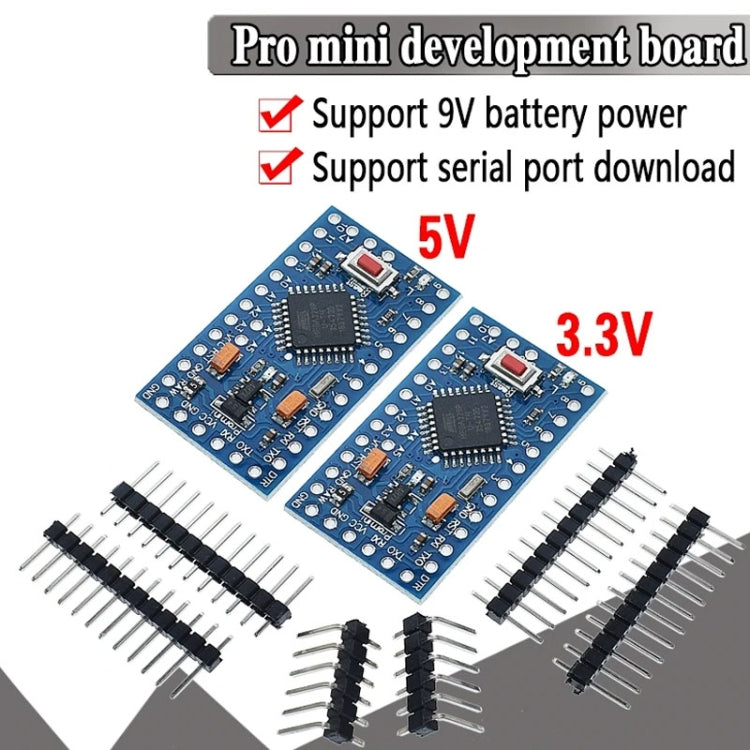

5V/16M Pro Mini Improved ATMEGA328P For Arduino Development Board
5V/16M Pro Mini Improved ATMEGA328P For Arduino Development Board
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description
1. 14 digital input/output ports: RX, TX, D2-D13
2. 8 analog input ports: A0-A7
3. 1 pair of TTL level serial transceiver ports: RX/TX
4. 6 PWM ports: D3, D5, D6, D9, D10, D11
5. Clock frequency: 16MHz
6. Using Atmel Atmega328P-AU microcontroller
7. Support serial port download, support external 3.3V-12V DC power supply, support 9V battery power supply.
8. The professional version of Mini Pro is a microcontroller board which has 14 digital input/output pins (6 of which can be used as PWM outputs), 8 analog inputs, a 16MHz resonator, a reset button, and mounting holes pin header
9. Size: about 33.3 x 18 mm
