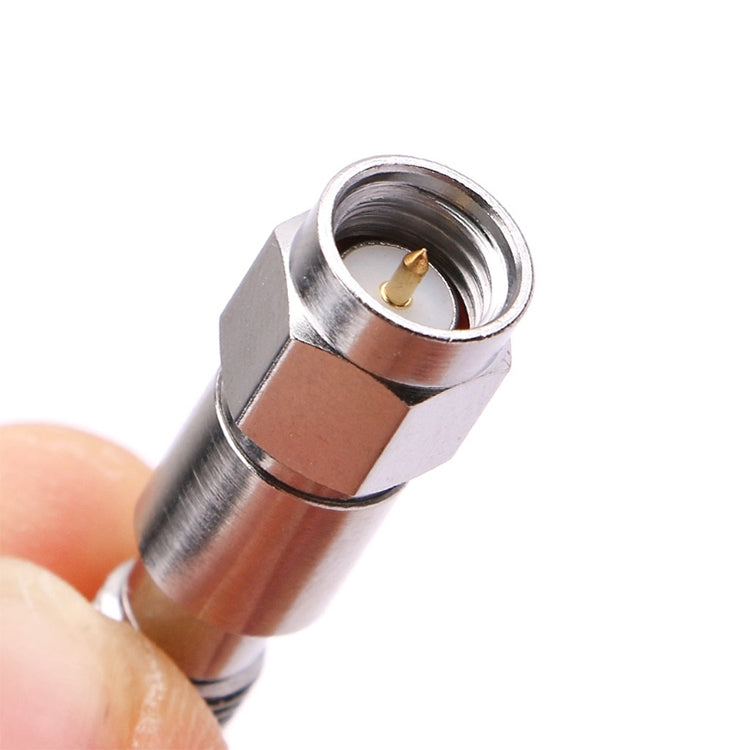

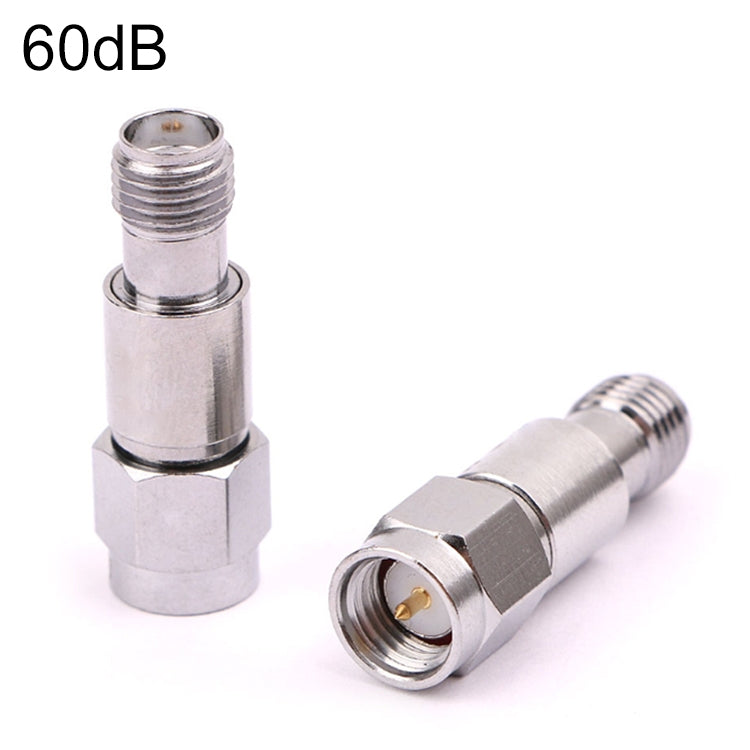

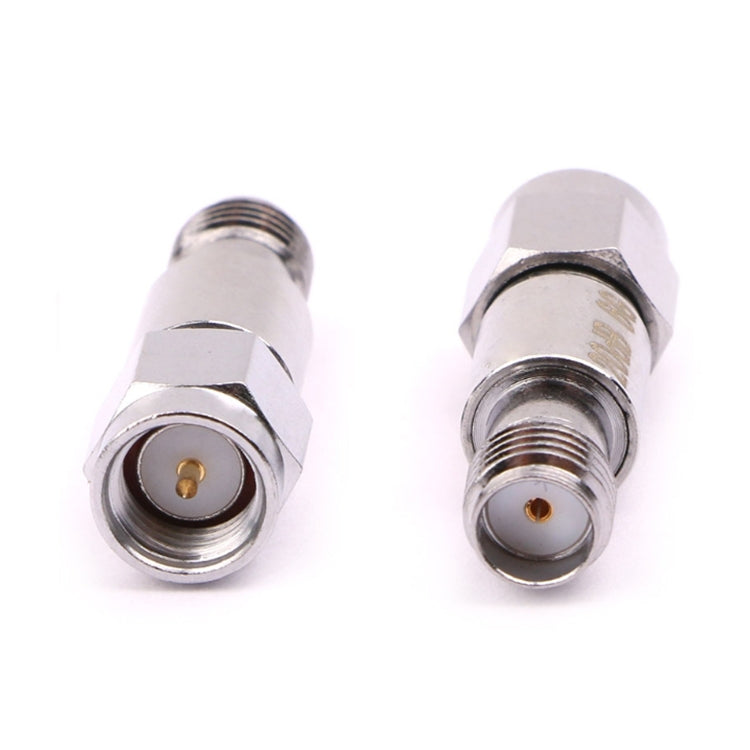

60dBi SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors
60dBi SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description
1. Useful in a wide variety of applications including impedance matching and level control.
2. With diffrent attenuation values of fixed attenuator to be chosen from. Good quality, rugged construction.
3. Suitable for microwave equipment, electronic equipment or communication systems. The use of features frequency bandwidth, low standing wave, power, stable performance.
4. It can promote your work efficiently.
Specification:
1. Materila: stainless steel
2. Power: 2W
3. Frequency Range: DC-6GHz
4. Impedance: 50 ohm
5. tanding-wave ratio (SWR): <=1.20
6. Connector Type: SMA-J ~ SMA-K
7. perating Temperature: -20~115 degrees Celsius

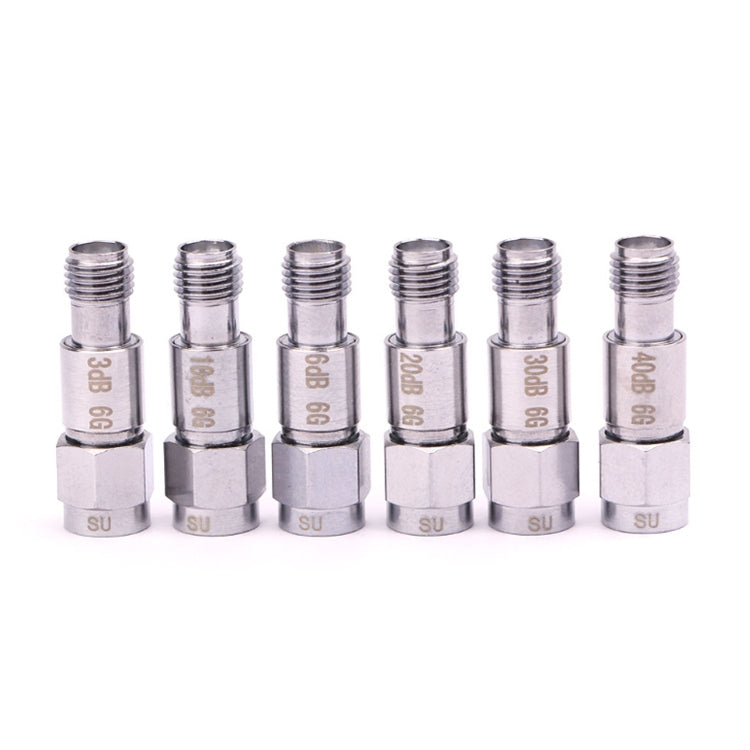

8. Attenuation: 60dB/50dB/40dB/30dB/25dB/20dB/10dB/6dB/5dB/3dB/2dB/1dB
9. Attenuation Range: +/-0.5dB; 30+/-0.8dB; 40-50dB+/-1.5dB; 60dB+/-1.8dB

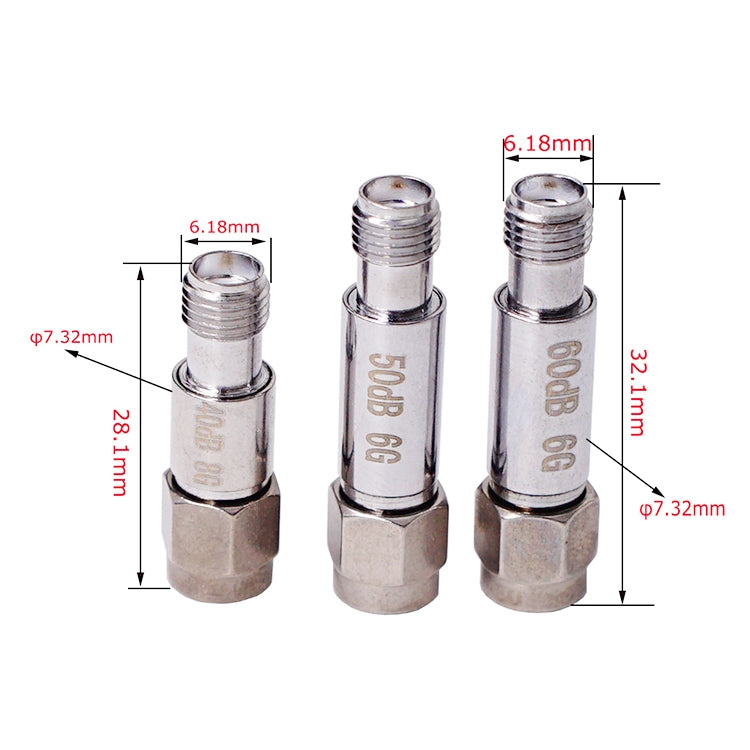

10. Size: 1dB~40dB app.28.1x9.1mm 50dB/60dB app.32.1x9.1mm
