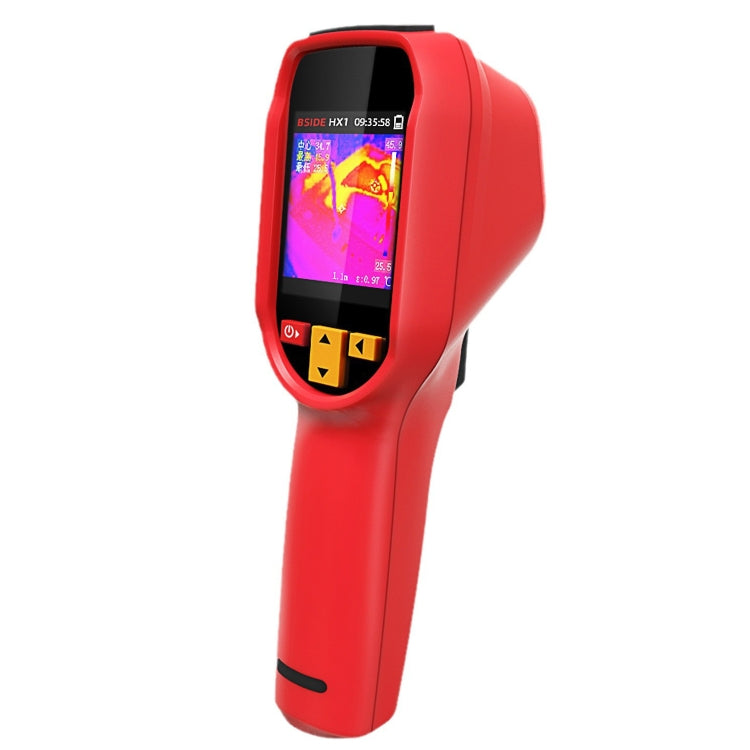

BSIDE HX1 Handheld Thermal Imaging Device Power Non-Contact Thermometer

SKU: TBD0605569801

Sale Sold out Pre-order

R 3,869.00

Pay in monthly instalments with

Duties & Import Tax Information

In Stock

Processing: 1–3 days

Product details

Brand:BSIDE

Type: Thermostat & Thermometer

Description

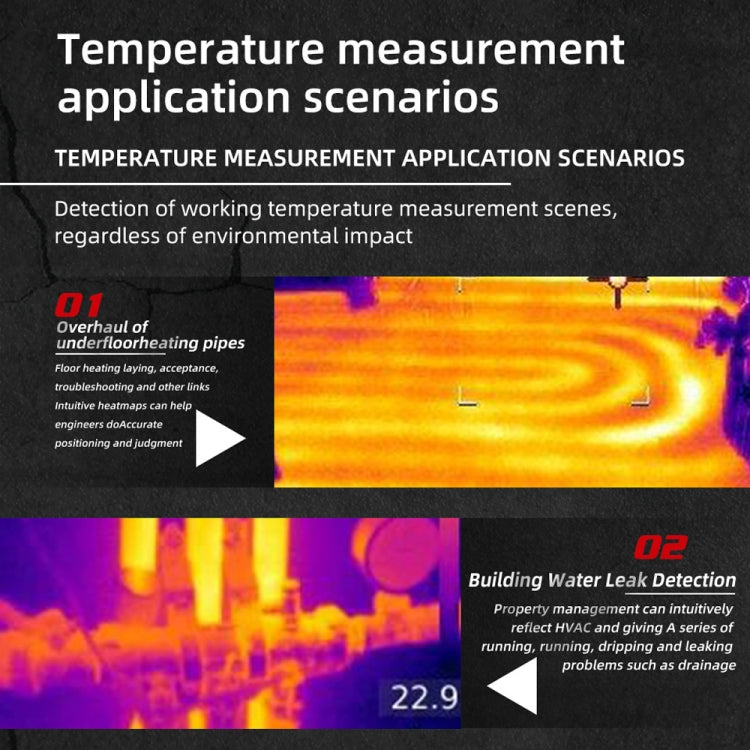

The BSIDE HX1 Handheld Thermal Imaging Device is a non-contact thermometer designed for temperature measurement and thermal imaging. It is suitable for applications such as electrical inspections, HVAC diagnostics, and building inspections.

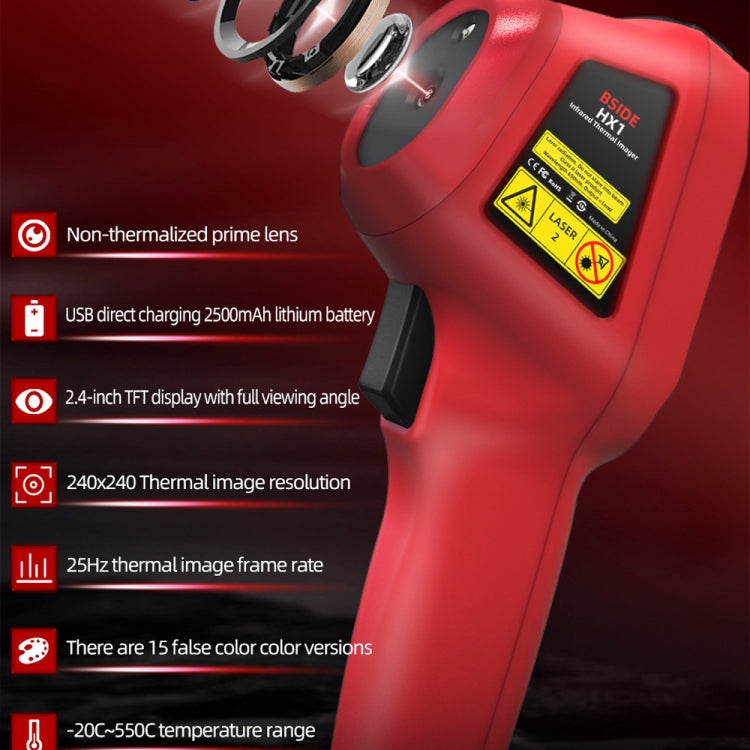

Sensor type: vanadium oxide (VOx) microbolometer
Response band: 8-14um
Thermal image resolution: 240 x 240 pixels
Noise equivalent temperature difference: within 60mK (25 degrees Celsius, F 1.0)
Field of view (FOV): 50.0 degrees (H) x 50 degrees (V) / 72.1 degrees (D)
Spatial resolution: 8.89 mrad
Frame rate: 25Hz
Focal length of imaging lens: 1.35mm
Temperature measurement focal length: adjustable from 0.3m to 3m
Temperature measurement range: -20 to 550 degrees Celsius
Temperature measurement accuracy: ±2 degrees Celsius or ±2% of the reading
Temperature measurement units: degrees Celsius, degrees Fahrenheit, Kelvin
Temperature measurement resolution: 0.1 degrees Celsius
Emission rate: adjustable from 0.01 to 1.00

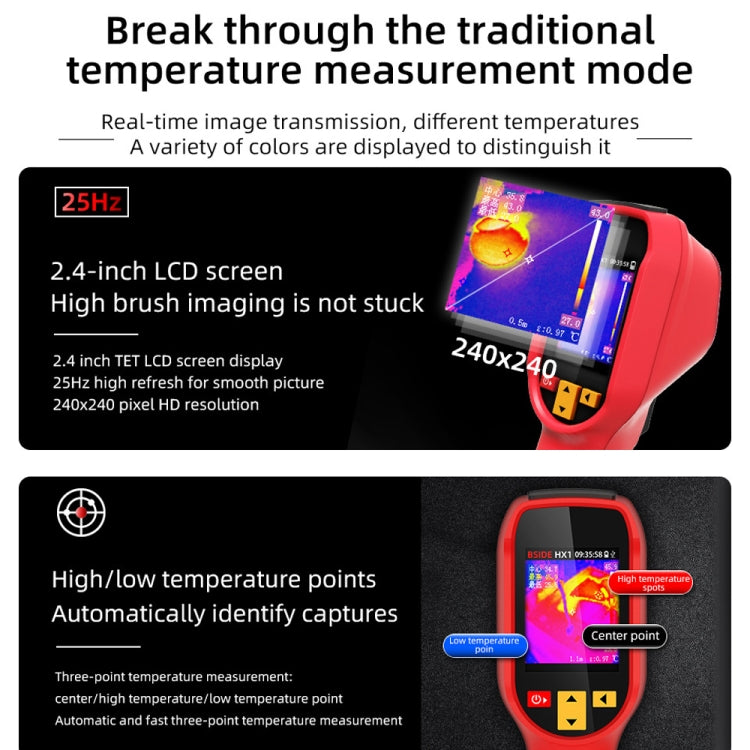

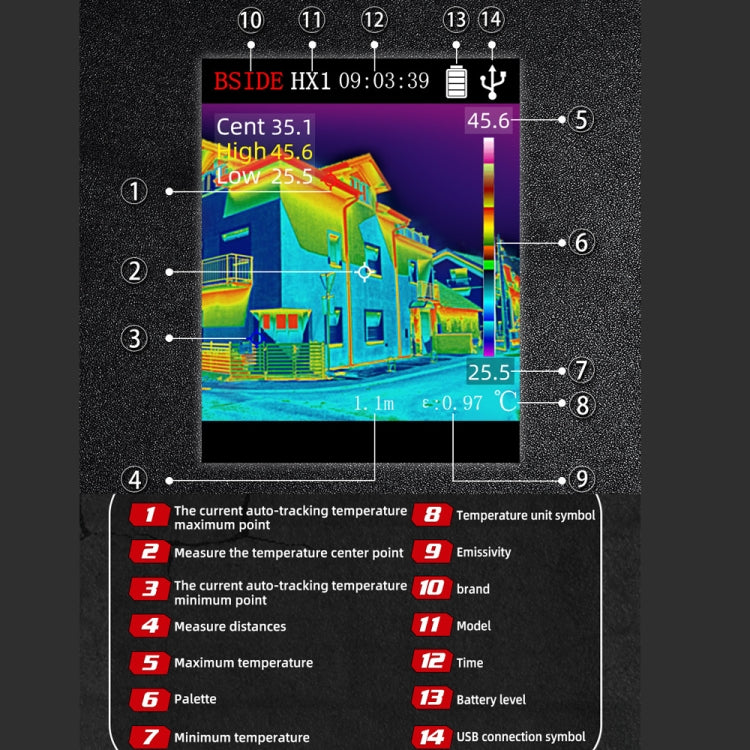

Temperature measurement display: center point temperature measurement, high and low temperature tracking

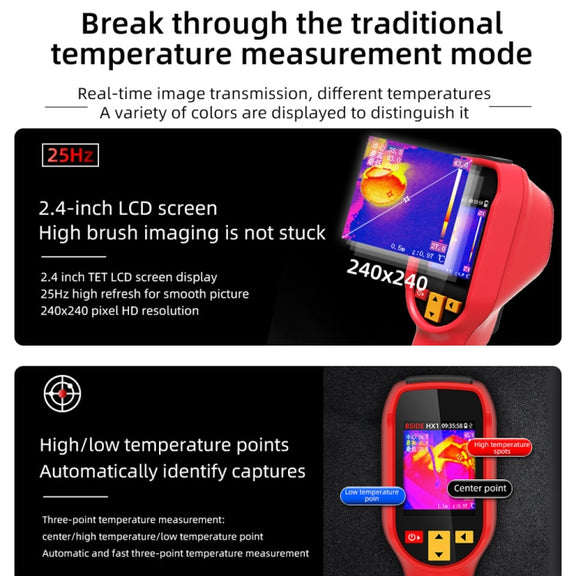

Display: 2.4 inch TFT LCD
Display resolution: 320 x 240
Laser indication: supported

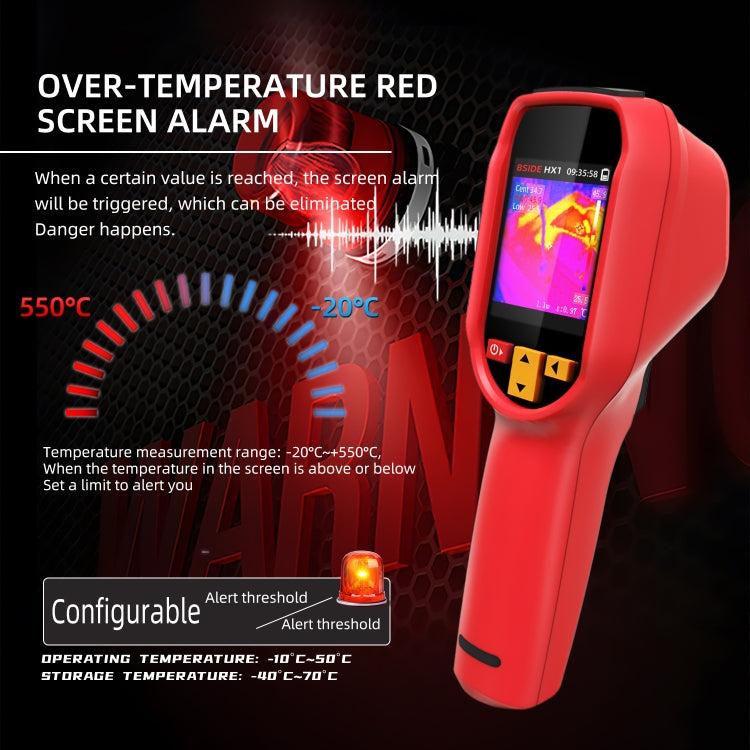

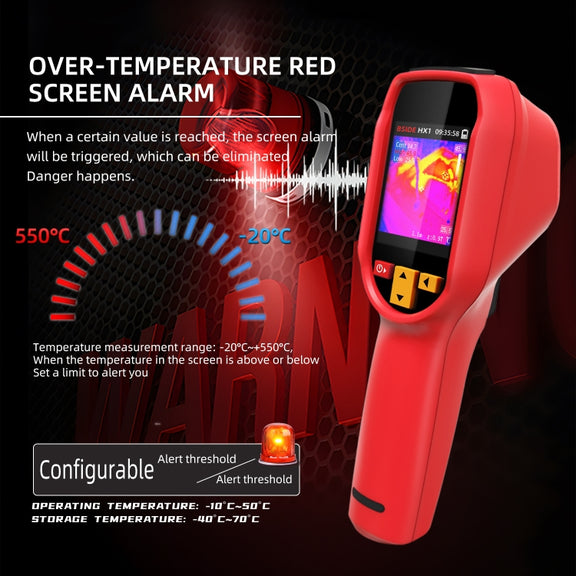

Temperature alarm: screen font color alarm

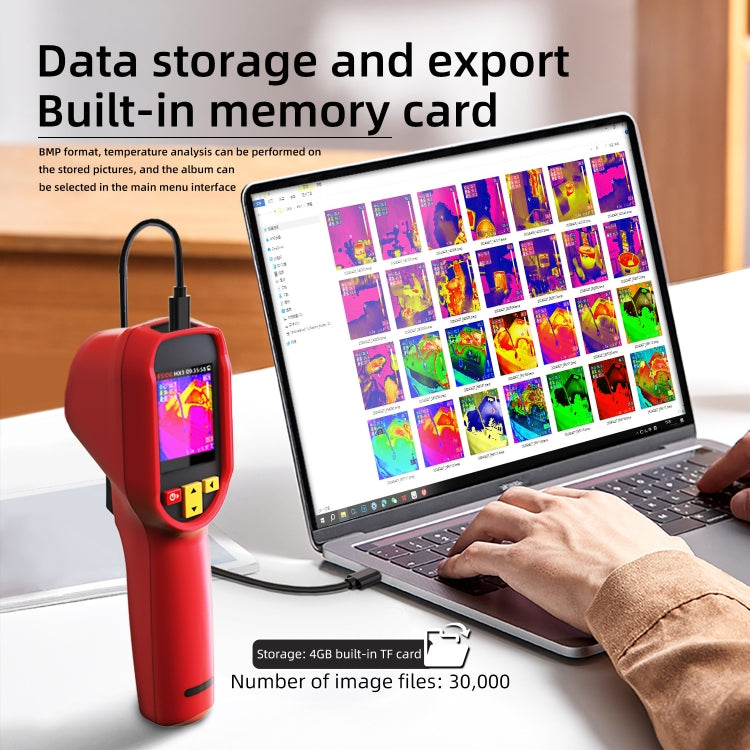

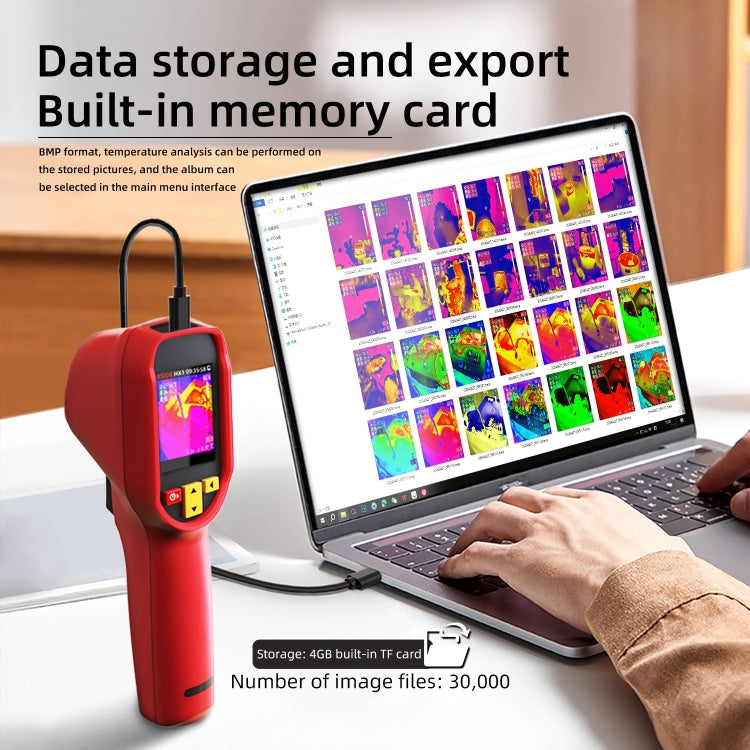

Image storage: built-in memory card
Number of image files: 30000
Image format: BMP
Focus mode: focus-free

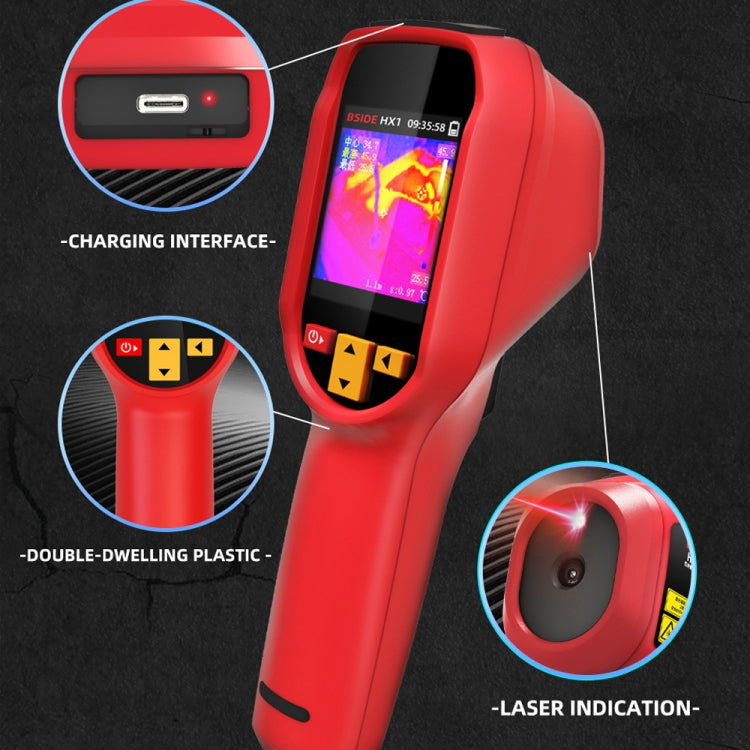

Hardware interface: Type-C USB

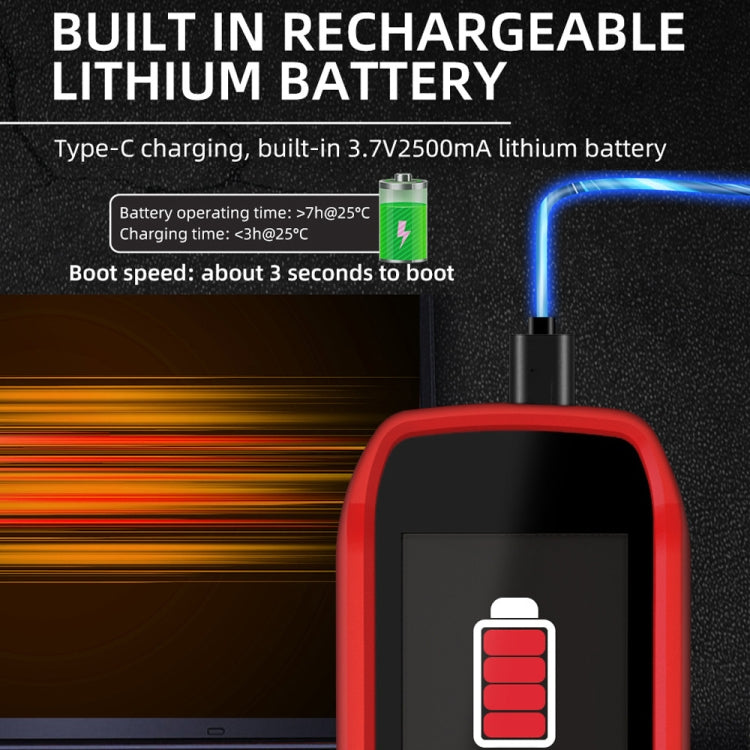

Battery type: rechargeable lithium battery (3.7V/2500mAh)
Battery operating time: more than 7 hours (at 25 degrees Celsius)
Charging time: less than 3 hours (at 25 degrees Celsius)
Charging voltage/current: 5V/2A
Auto shutdown: configurable (10/20/30/40/50/60 minutes)
Operating temperature: -10 to 50 degrees Celsius
Storage temperature: -40 to 70 degrees Celsius
Operating humidity: within 85% RH (non-condensing)

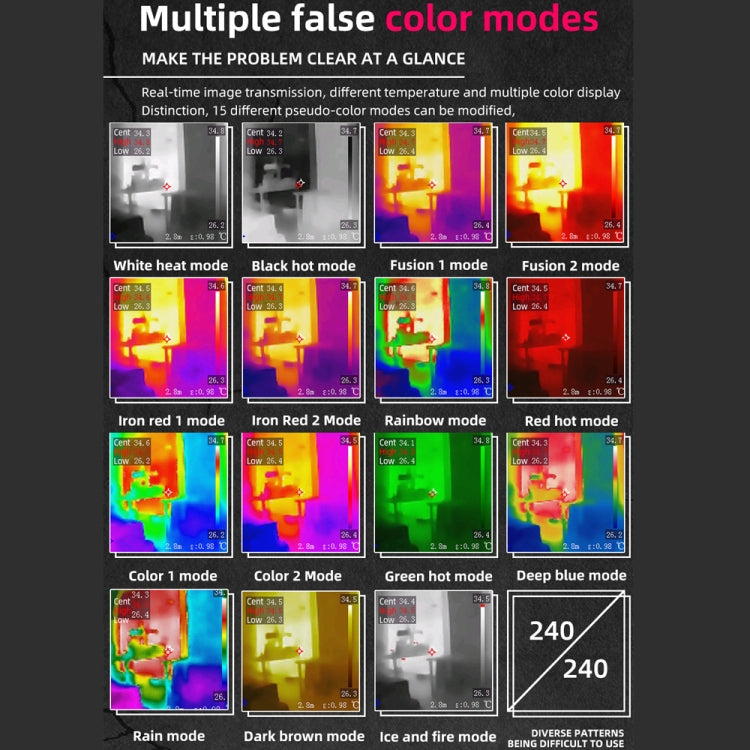

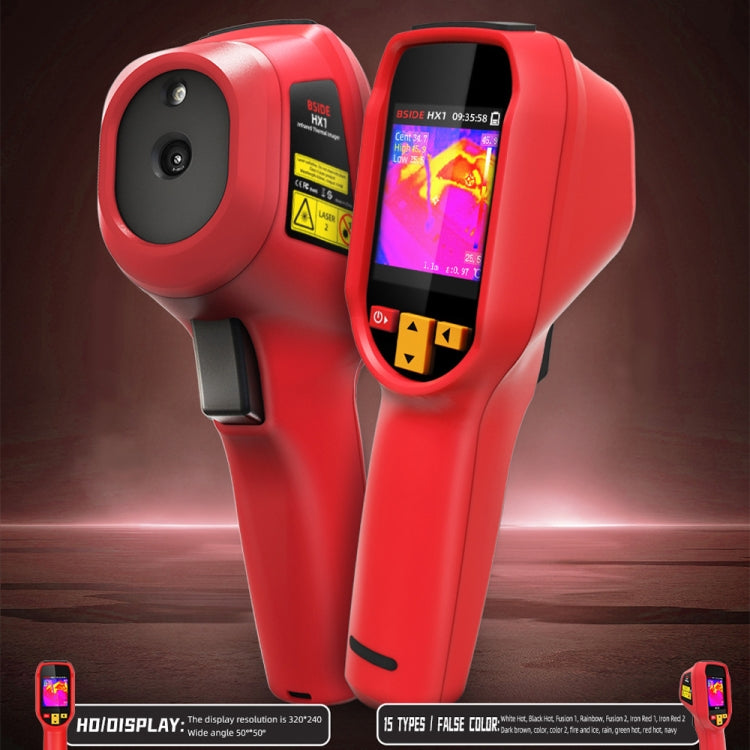

Color palette options: white hot, black hot, fusion 1, rainbow, fusion 2, iron-red 1, iron-red 2, sepia, color 1, color 2, ice and fire, rain, green hot, red hot, dark blue

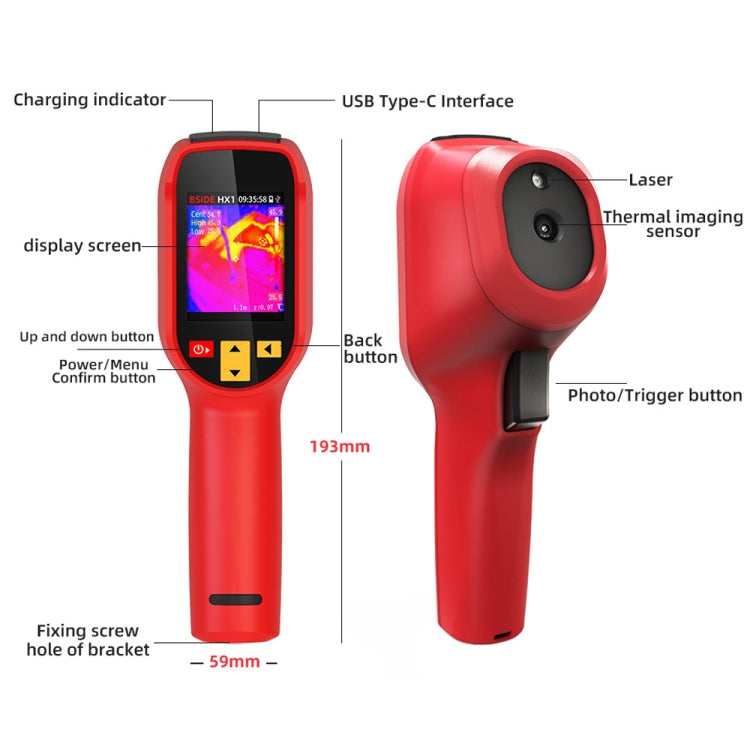

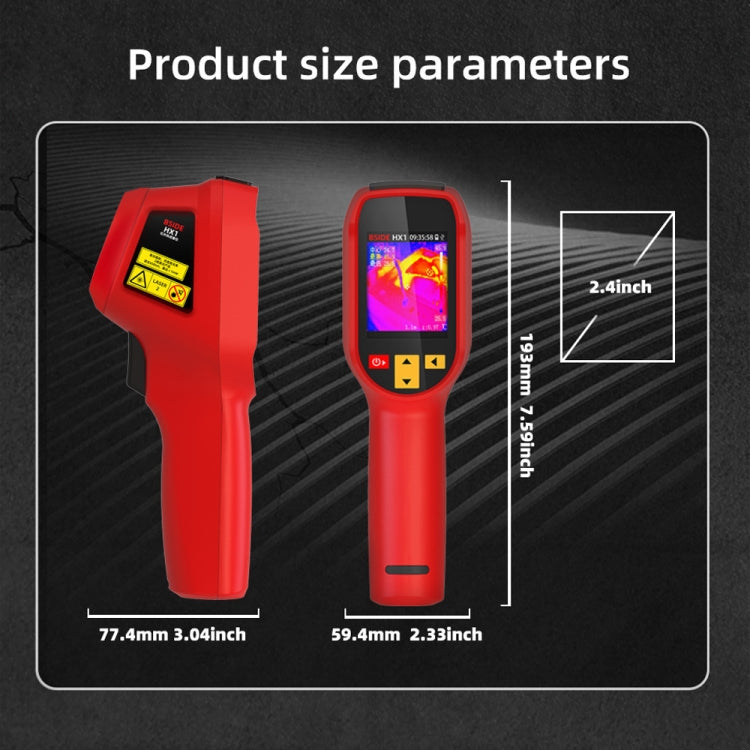

Dimensions: approximately 19.3 x 5.94 x 7.74 cm
Weight: approximately 277 g

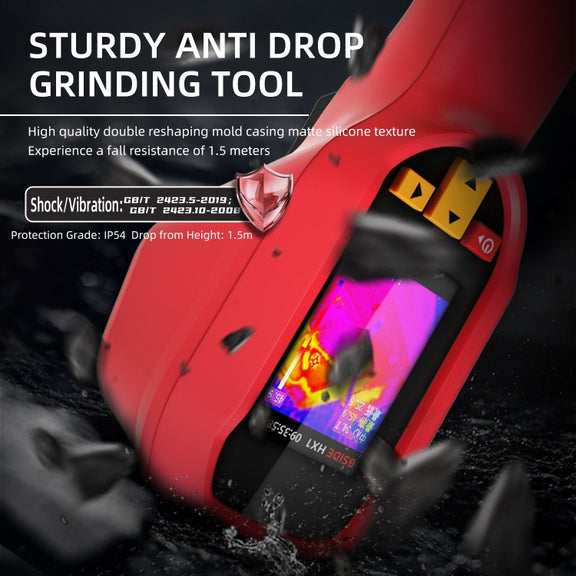

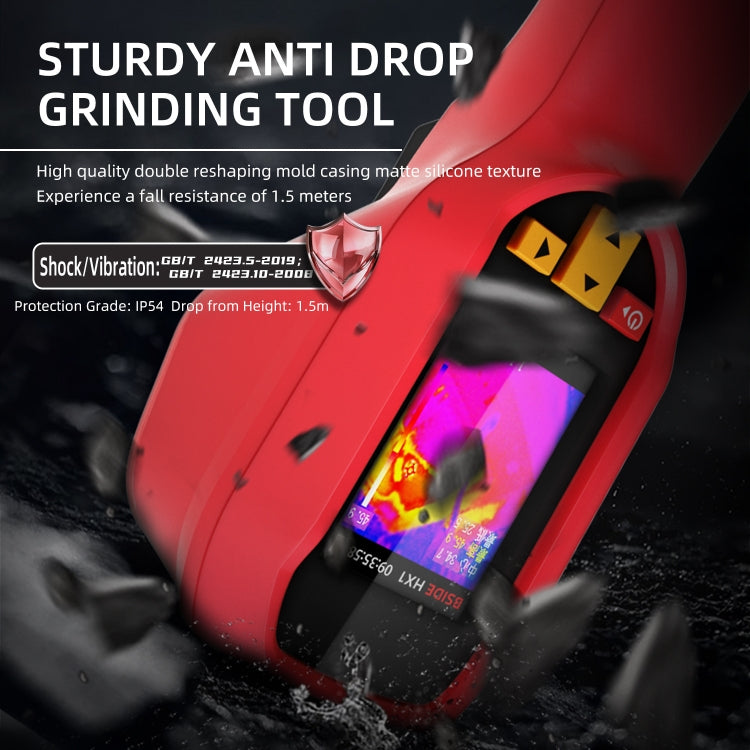

Features: infrared thermal camera for surface temperature detection, full-viewing angle TFT color LED screen, real-time image transmission, over-temperature red screen alarm, double plastic mold case with frosted silicone texture

Questions about features, compatibility, or warranty? Chat with our local support team!

View the full product details

BSIDE HX1 handheld thermal imaging thermometer helps South African buyers inspect surface temperatures with non-contact thermal imaging, 240 x 240 resolution, laser indication, image storage, color palettes, and Type-C charging.

Confirm HX1 thermal imaging needs, non-contact temperature range, 240 x 240 thermal resolution, Type-C charging, image storage, color palette needs, inspection distance, and alarm expectations before ordering.

Brand/vendor: BSIDE. Product type: Thermostat & Thermometer. VOx microbolometer, 8-14um response band, 240 x 240 thermal resolution, 25Hz frame rate, -20 to 550 degrees Celsius range, 2.4-inch TFT LCD, laser indication, 30000 BMP image storage, Type-C USB, and 2500mAh rechargeable battery. From R3869.00. Stock signal: 47 available.

What is the BSIDE HX1 used for?

It is listed for non-contact temperature measurement and thermal imaging in tasks such as electrical inspections, HVAC diagnostics, and building checks.

Does the BSIDE HX1 store images?

Yes. The listing describes built-in image storage with BMP image format and capacity for many image files.
