Product details
Description

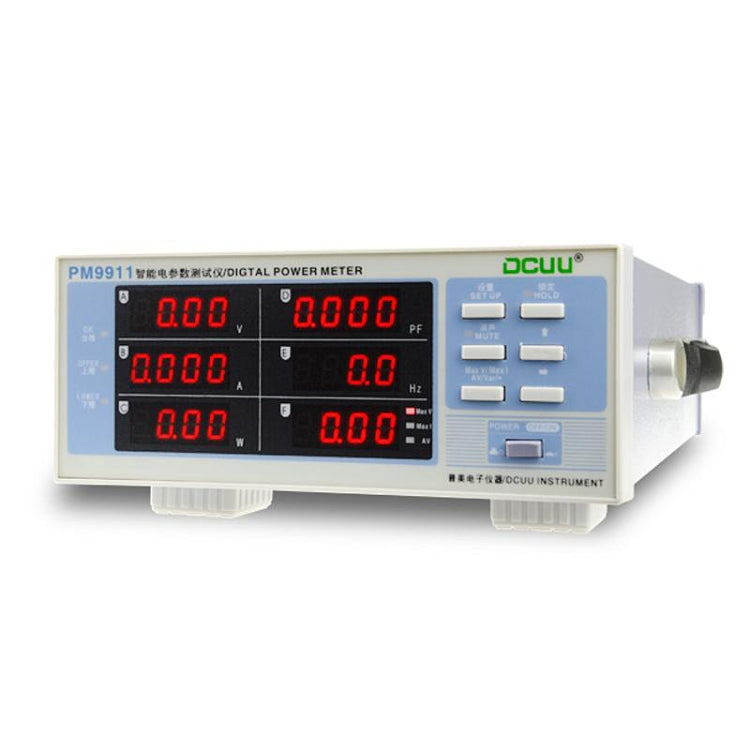

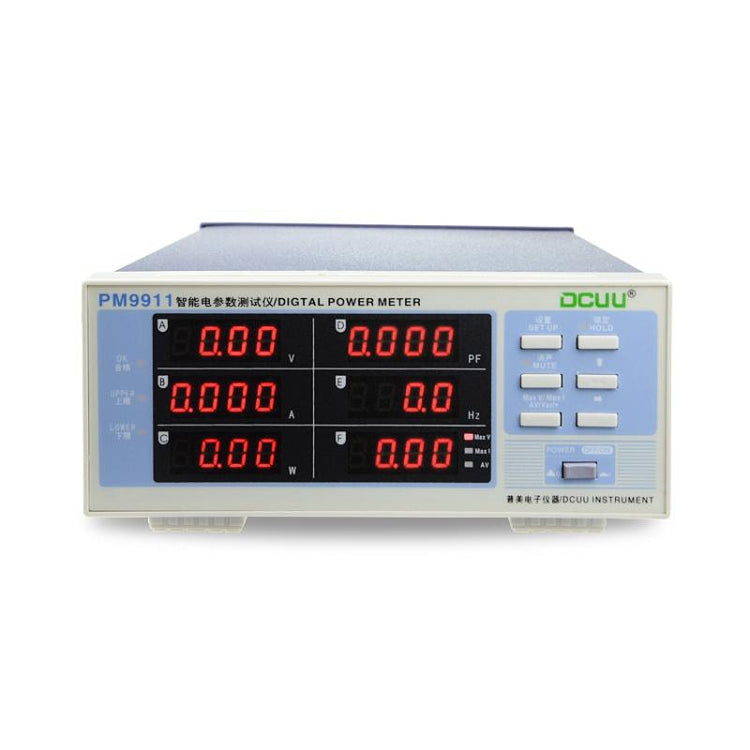

DCUU PM9911 is an intelligent electrical parameters measuring instrument designed for multi-functional testing of electrical parameters. It is suitable for line measurement and can help prevent misjudgment and inefficiency in traditional manual discrimination.
- Type: Intelligent electrical parameters measuring instrument

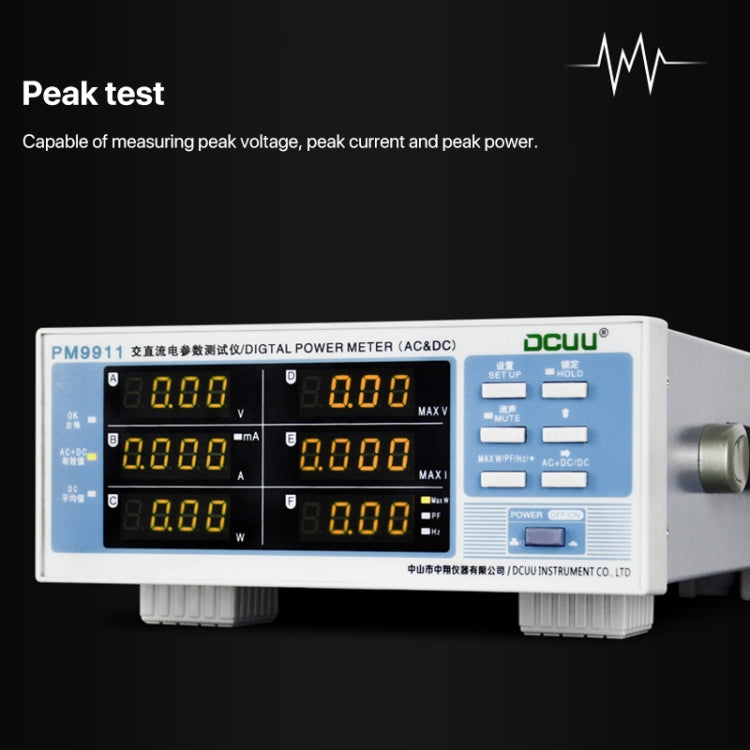

- Functions: Voltage test, current test, power test, power factor test, frequency test, crest value voltage and current test, active power, reactive power test

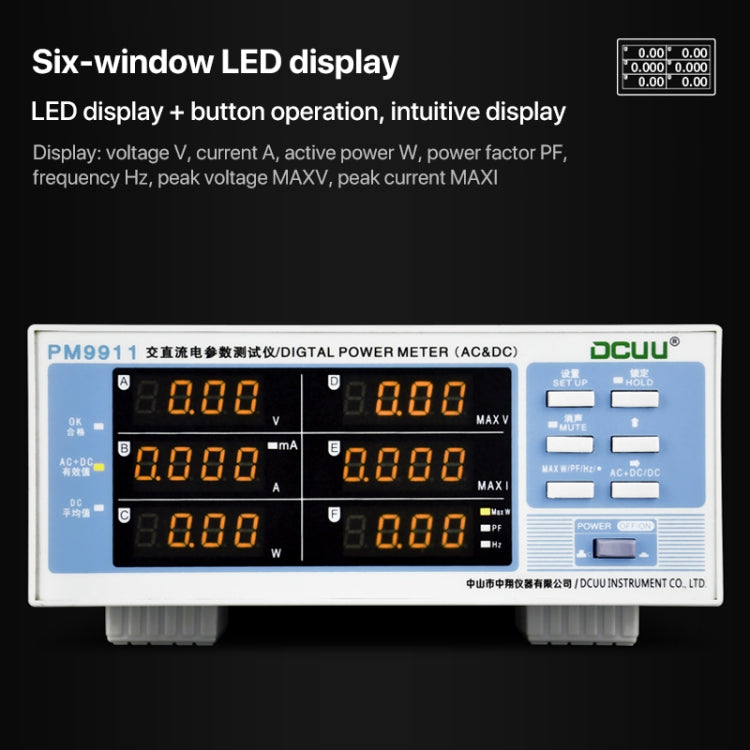

- Display: Six windows showing Voltage (V), Current (A), Active Power, Power Factor (PF), Frequency (Hz), Peak Voltage (MAX V), Peak Current (MAX I), Apparent Power (VA), Reactive Power (Var)
- Voltage Range: 3V to 600V
- Current Range: 5mA to 20A
- Accuracy: +/- (0.4% reading + 0.1% range + 1 word)

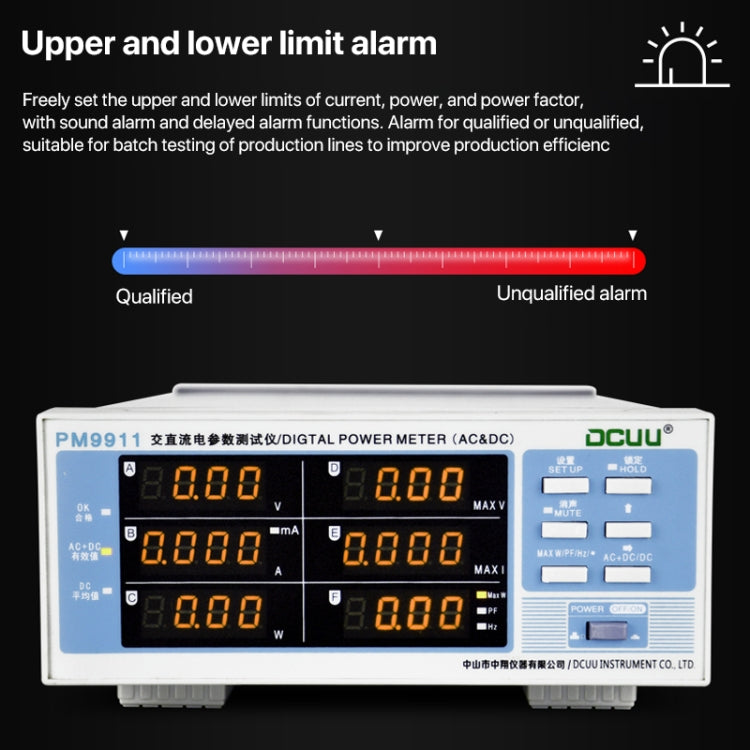

- Upper and Lower Limit Judgment: Current, power, and power factor upper and lower limit setting, judgment and alarm function (delayed alarm)
- Latch Function: Used for stable data reading during fluctuations
- AC Frequency Range: 45Hz to 65Hz / 400Hz
- Bandwidth: 5KHz
- Package Contents: Host x 1, Power cord x 1, Product manual (electronic file) x 1, Product certificate x 1, Product warranty card x 1
