HWAUT QDB-5A Automotive Actuator Drive Detector Oscilloscope
HWAUT QDB-5A Automotive Actuator Drive Detector Oscilloscope
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability

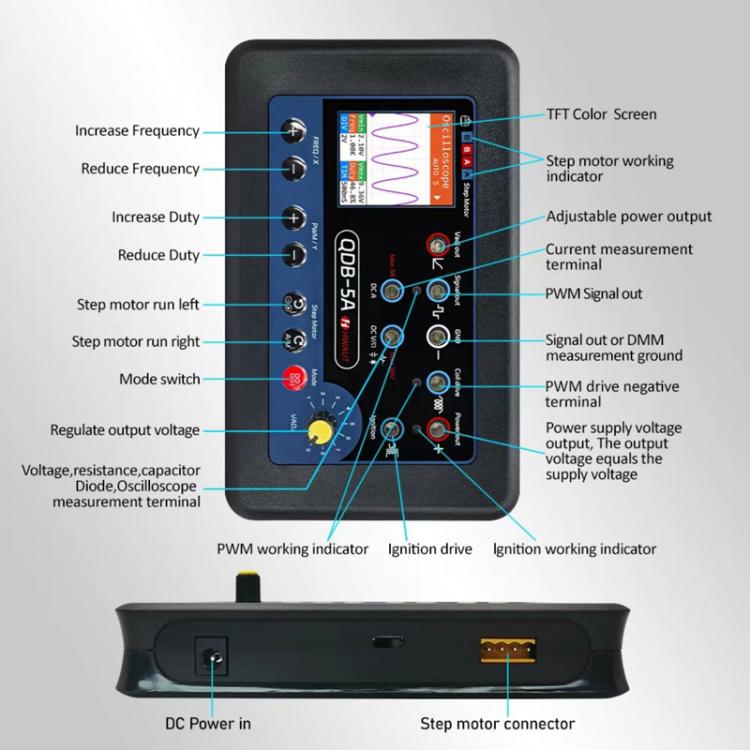

Product details
Description
1. Drive test ignition coil: including independent ignition, coil type, and module type
2. Driving test fuel injector: including 12V fuel injectors for gasoline vehicles and 12V/24V fuel injectors for diesel vehicles
3. Drive and test various duty cycle-controlled solenoid valves and fuel metering valves
4. Drive and test various duty cycle-controlled motors, urea pump motors, etc
5. Drive and test idle stepping motors, instrument stepping motors, headlight follow-up steering stepping motors, etc
6. Hall signal output frequency, amplitude, and duty cycle can be adjusted to simulate various duty cycle sensors, such as air conditioning pressure sensors (duty cycle type), air flow meters (duty cycle type), etc
7. Oscilloscope function, allowing for intuitive viewing of circuit signal waveforms, facilitating quick location of wiring and electronic control faults

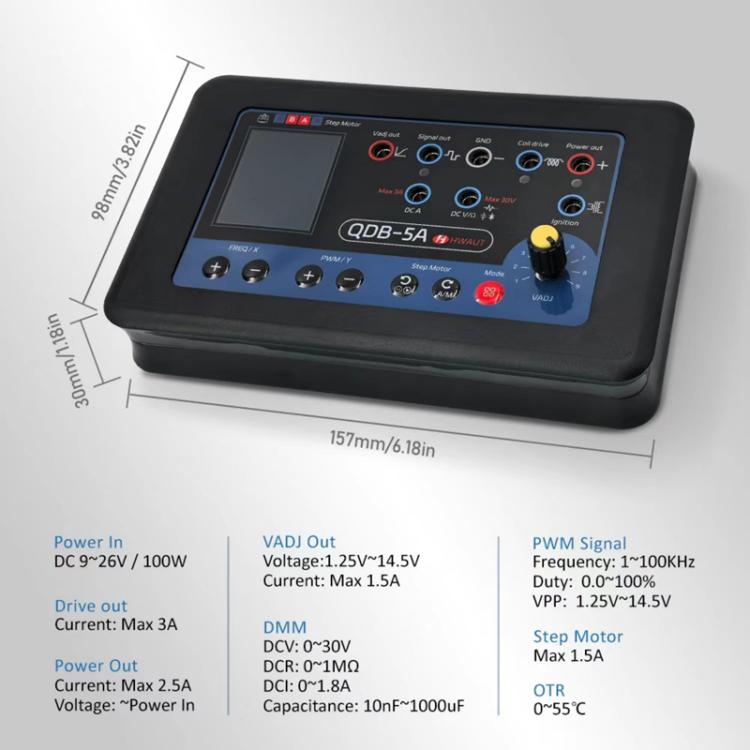

Parameters
1. Power input: DC 8-28V
2. Output power: 0-2.5A
3. VADJ output: 0-1.5A
4. Digital multimeter: DC 0-30V/0-1M
5. Pulse width modulation: 1-100KHz/0-100%
6. Stepper motor: maximum 15A
7. Size: about 15.7 x 9.8 x 3cm
