Product details
Description

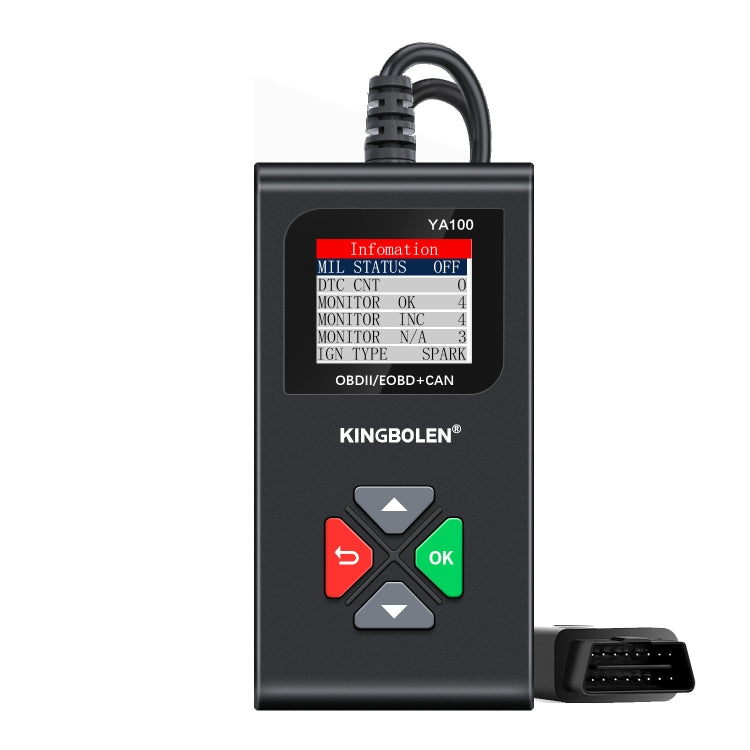

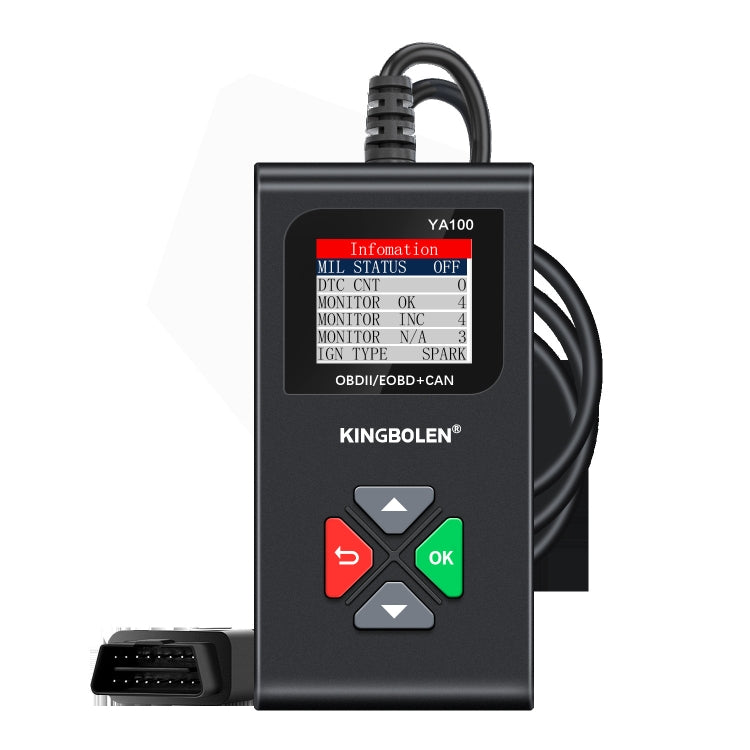

The KINGBOLEN YA100 OBD2 Car Engine Fault Diagnosis Tool is a diagnostic tool designed for OBD2 vehicles. It provides essential functions such as reading and erasing diagnostic trouble codes, making it suitable for everyday vehicle maintenance.
- Product Type: Code Readers & Scan Tools
- Compatibility: OBD2 vehicles
- Material: Durable
- Key Feature: Diagnostic tool

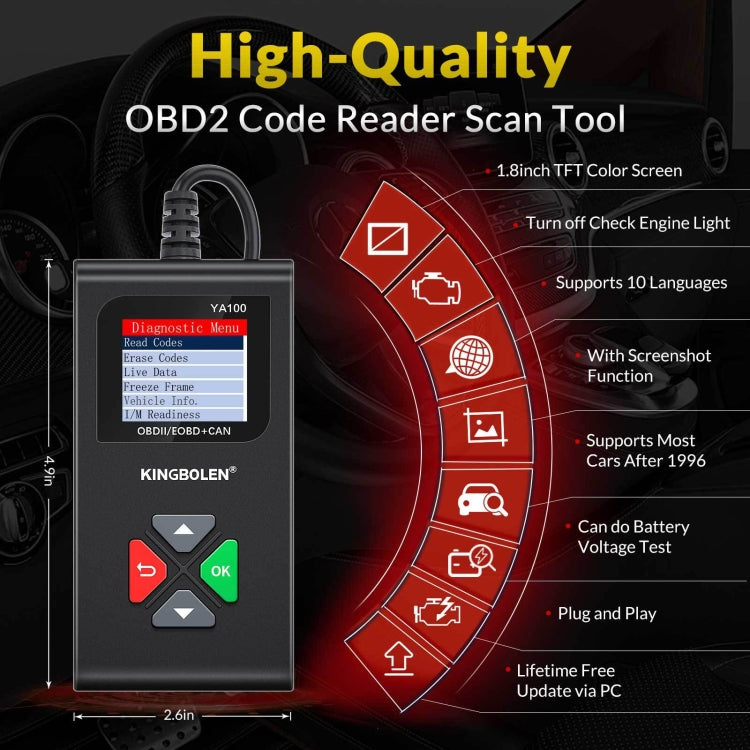

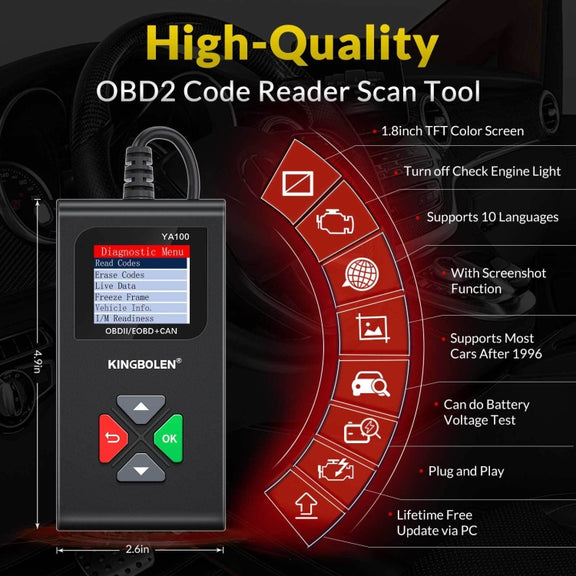

- Screen Size: 1.8 inches TFT Color Display
- Resolution: 128 x 64 pixels
- Unit: Metric/Imperial
- Working Voltage Range: 8~18V
- Dimension: 125mm x 65mm x 22mm
- Operating Temperature: 0~60 degrees Celsius
- Storage Temperature: -20~70 degrees Celsius
- Supported Languages: English, French, Russian, German, Italian, Spanish, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Polish

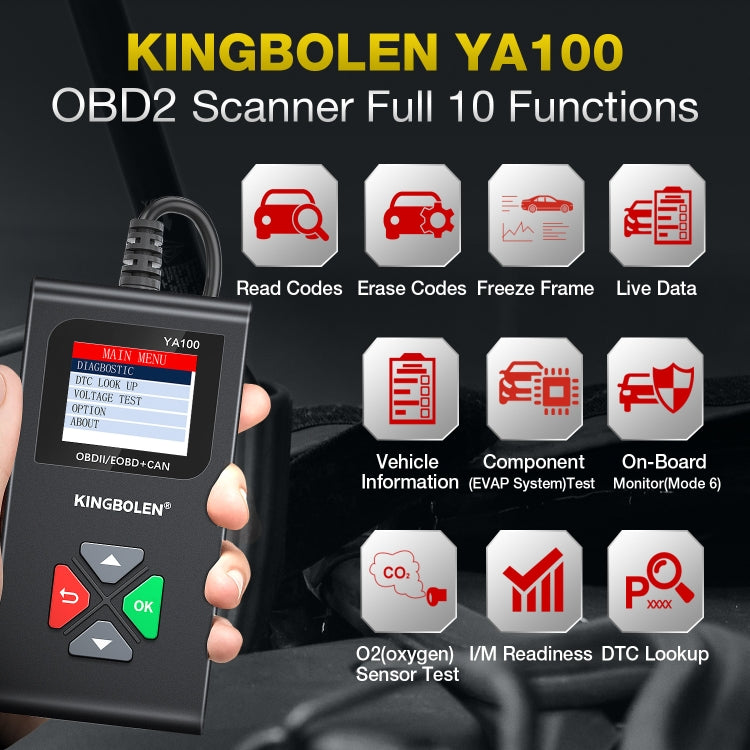

- Functions:

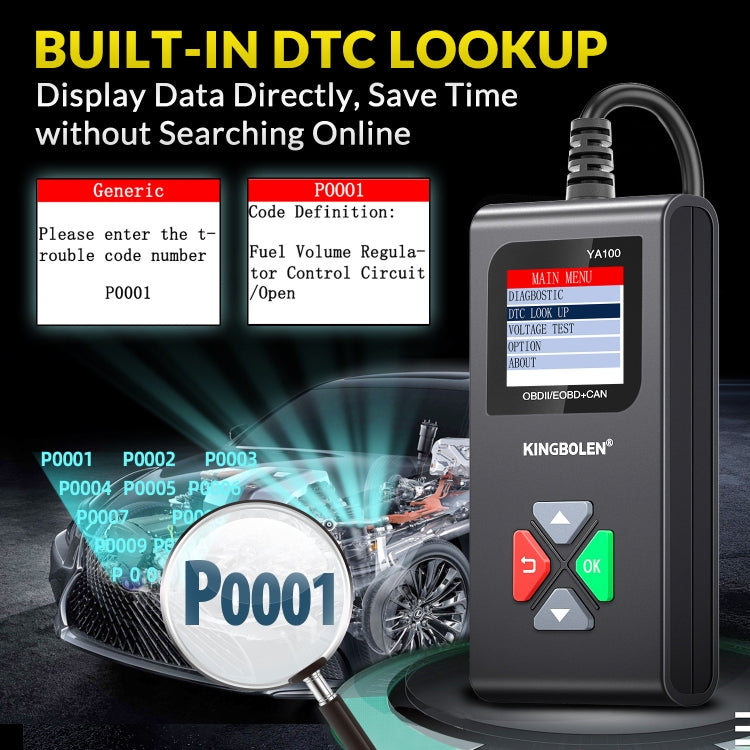

- Read codes: shows detailed descriptions of Diagnostic Trouble Codes (DTCs)
- Erase codes: turns off Check Engine Light (MIL), clears codes, and resets monitor
- Read data stream: displays live ECU/PCM data stream

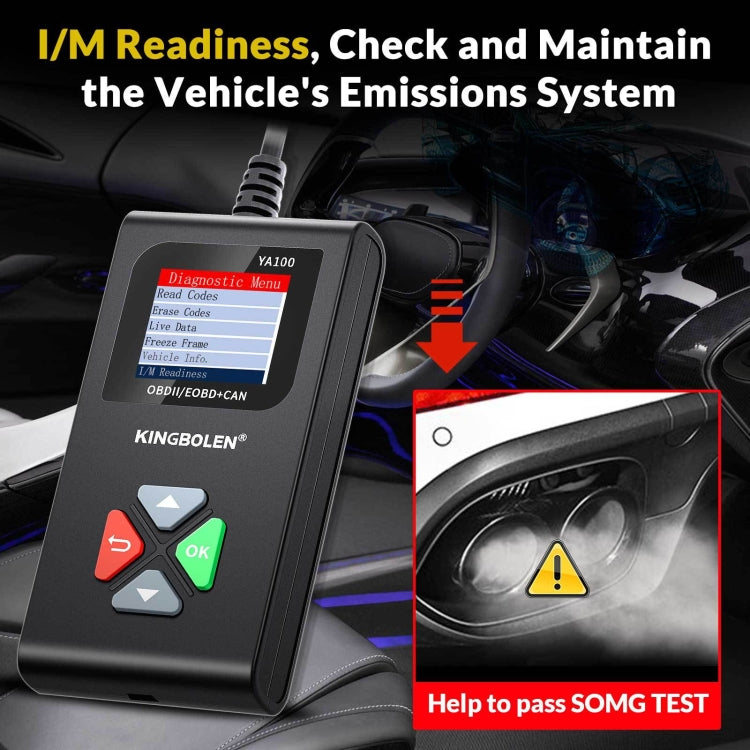

- I/M readiness status: indicates if emissions-related systems are operating properly
- View freeze frame data: checks vehicle conditions recorded during emission-related faults
- O2 sensor test: retrieves O2 sensor monitor test results
- EVAP test: detects leaks in the EVAP system
- On-board monitor test: retrieves test results for emission-related components
- Read vehicle information: displays VIN, CID, and CVN
- Component test: actuates vehicle components for operability testing
- Protocols:
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
