MK00132 DC-DC 400W 15A Boost Converter Constant Current Power Supply LED Driver Voltage Charger Module
MK00132 DC-DC 400W 15A Boost Converter Constant Current Power Supply LED Driver Voltage Charger Module
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description
1. Module nature: non-isolated boost module
2. Input voltage: DC8.5-50V
3. Input current: 15A ((MAX) more than 8A please strengthen the heat dissipation)
4. Static operating current: 10mA (12V to 20V, the higher the output voltage, the static current will increase)
5. Output voltage: 19V
6. Output current: 12A (MAX) over 7A, please strengthen the heat dissipation
7. Operating temperature: -40-85 degrees celsius
8. Operating frequency: 150KHz
9. Conversion efficiency: 96 percent MAX
10. Overcurrent protection: yes (input more than 15A, automatically reduce the output voltage, there is a certain error range)
11. Input reverse connection protection: no
12. Constant current range: 0.2-12A
13. Installation mode: four 2.5mm screws
14. Output mode: wired output

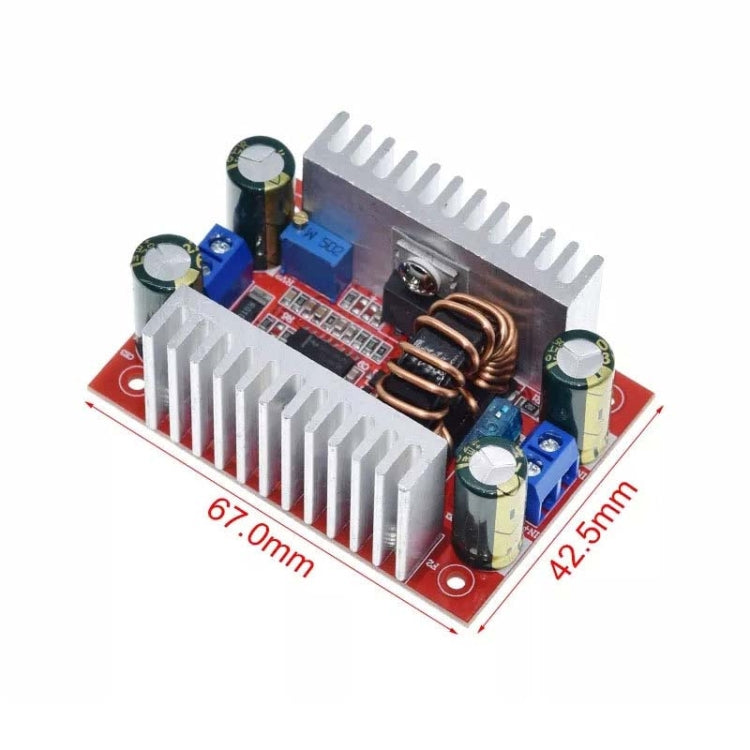

15. Size: 67 x 48 x 28mm
16. Weight: 60g
