Shortwave 1.5-30MHz Outdoor Full-Band Antenna Radio With No Dead Zone(HF20A)
Shortwave 1.5-30MHz Outdoor Full-Band Antenna Radio With No Dead Zone(HF20A)
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description
1. Rated power: 100W
2. Operating frequency: 1.5-30MHz
3. Transmitted VSWR: less than 2.0
4. Power: 1000W, average power: 50W
5. Standard vibrator: 20 meters
6. Vibrator material: 1-1.5mm multi-core copper wire
7. Recommended installation height for the HF20A: 0.5m-6m. The basic installation form is either an inverted V or horizontal, with an inverted V form recommended. However, in special geographical locations (such as small rooftop areas, windows, or balconies), or where the space is too narrow to allow for antenna installation, any shape can be used.
8. General guidelines for antenna installation: the larger the unfolded area, the better; the higher the height, the better; the farther away from walls, the better; and ideally, away from metal objects.
9. The antenna has good concealment, is easy to install, requires no debugging or tuning, and can operate across the entire 1.5-30MHz shortwave band with no blind spots from 0-500km.

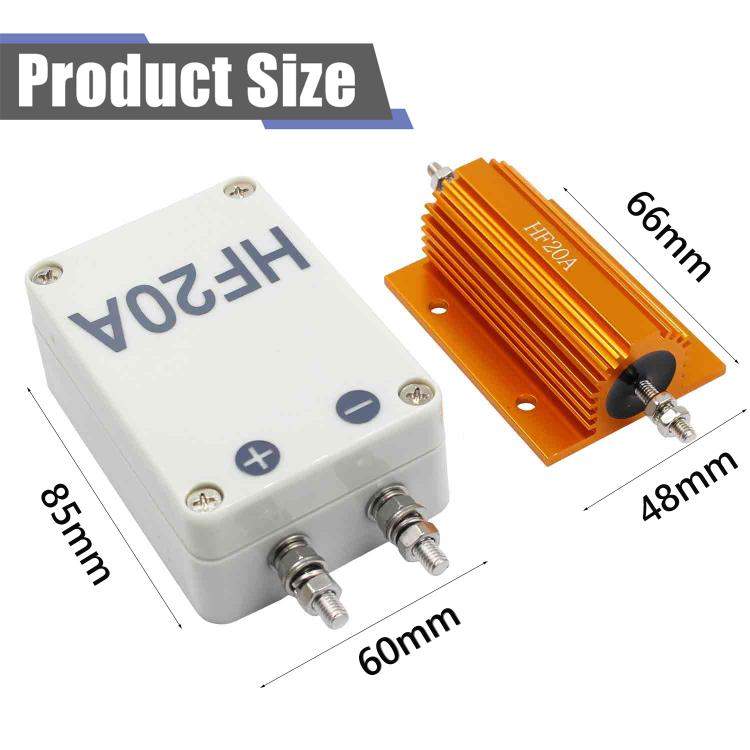

10. Dimensions: 85x60mm; 48x66mm

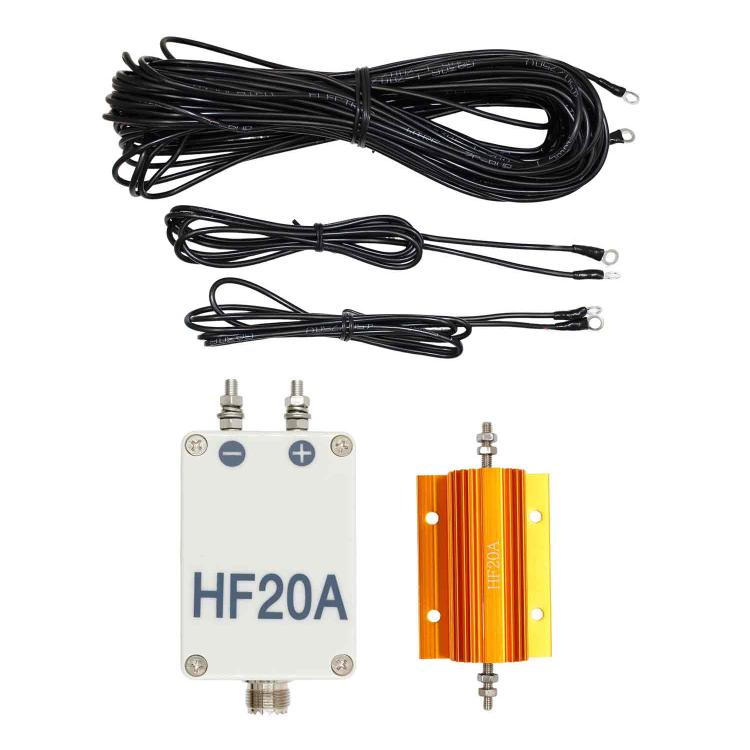

Package list:

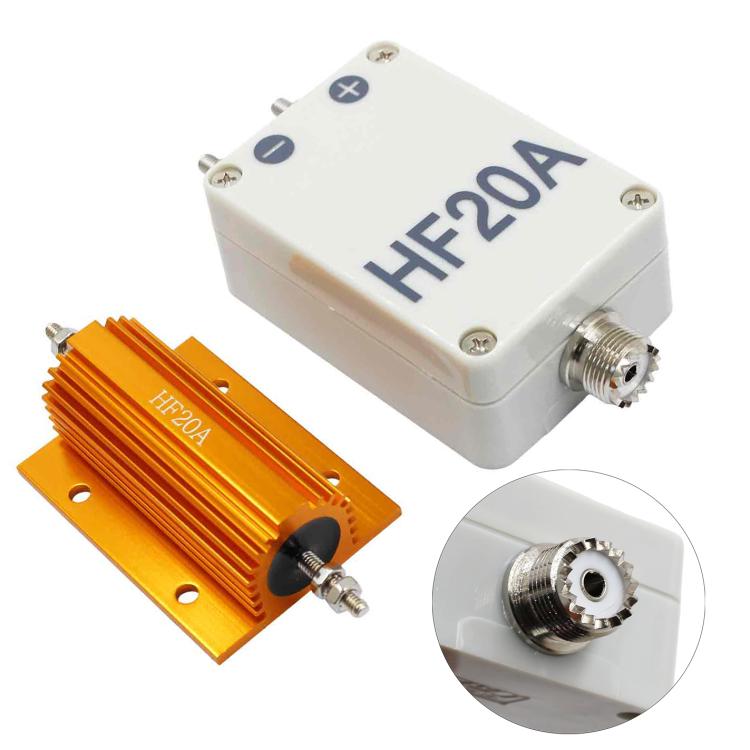

1. HF20A dedicated balun x 1 (white box)
2. HF20A dedicated parts x 1 (gold)

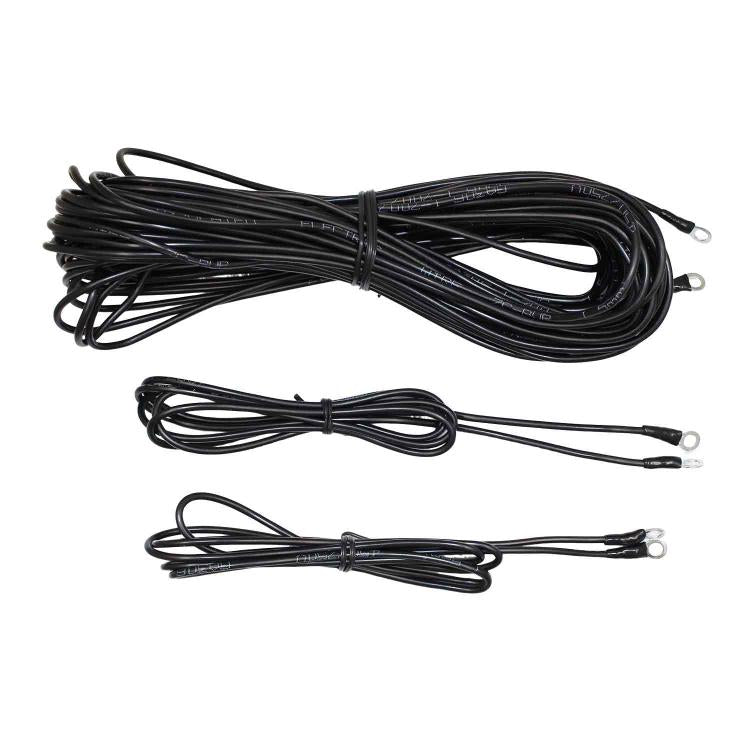

3. Vibrator: 20m x 1 (main vibrator)
4. 1.5m x 2 (lead wires)
