Product details
Description

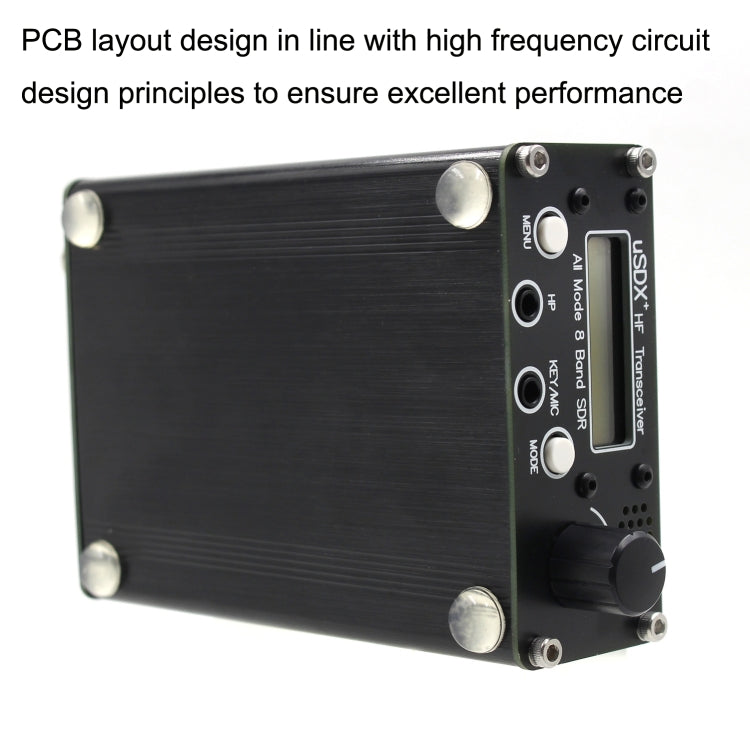

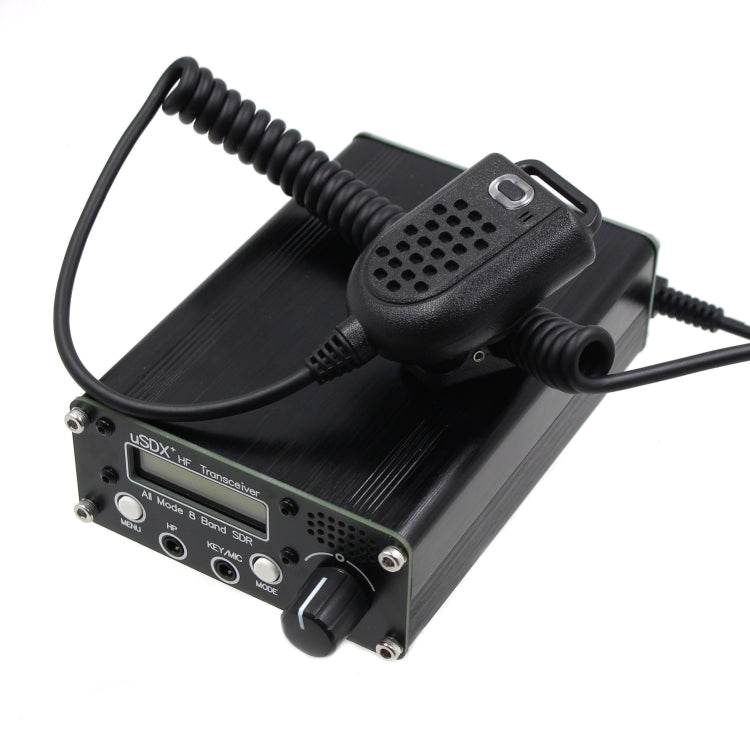

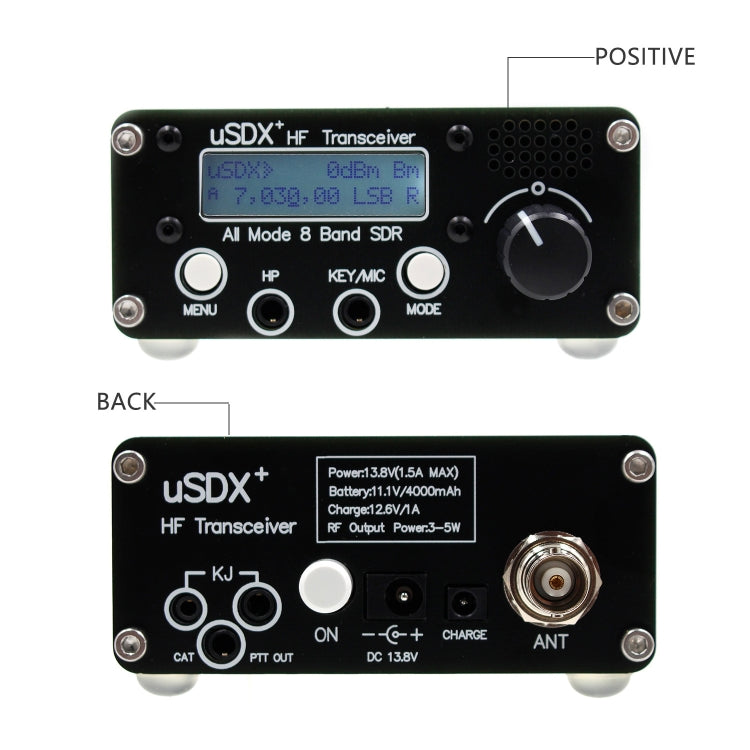

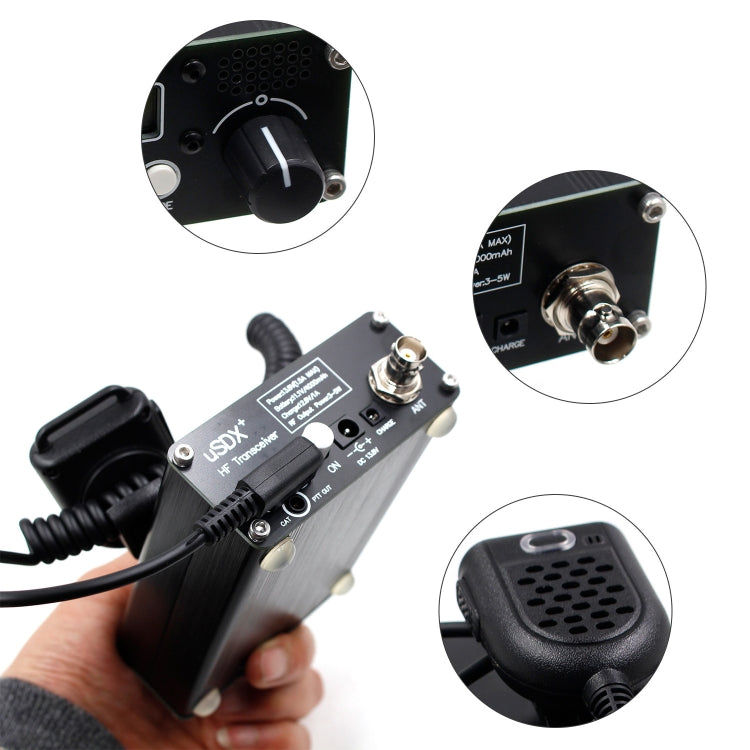

The Usdr Usdx + V2 Plus is an 8-band HF SSB QRP transceiver designed for shortwave communication. It is suitable for portable outdoor use, featuring a built-in 4000mAh lithium battery and various connectivity options for digital mode software control.
- Frequency Coverage: 80M, 60M, 40M, 30M, 20M, 17M, 15M, 10M

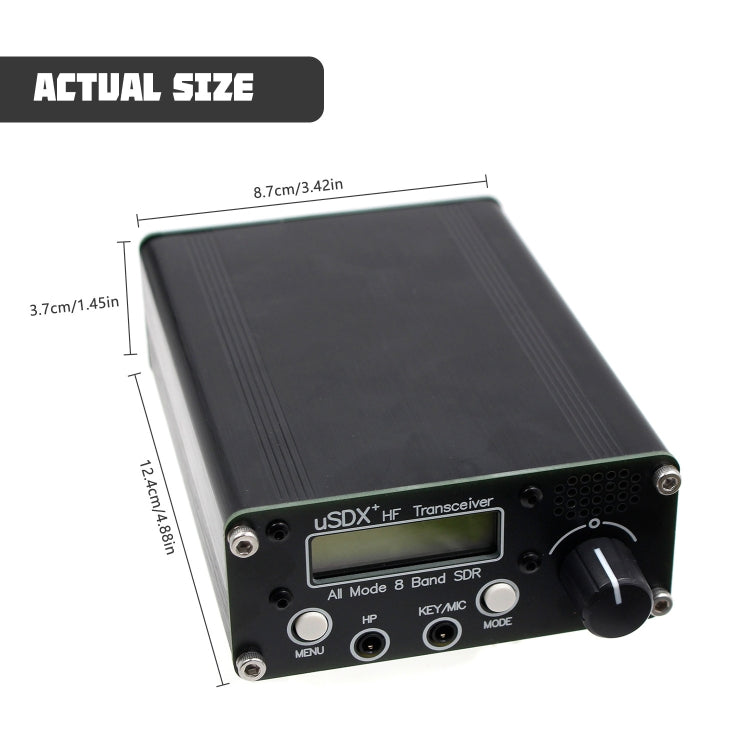

- Dimensions: 88mm x 39mm x 124mm (without bulge)
- Weight: Not specified
- Power Supply: Built-in 4000mAh lithium battery or external 13.8V power supply
- Output Power: 3-5W across 8 bands
- Display: 1602n LCD screen
- Speaker: Built-in speaker with cavity
- Connectivity: USB, LSB, CW, AM, FM modes supported
- DSP Filter: 4000, 2500, 1700, 500, 200, 100, 50 Hz passband
- AGC: Automatic Gain Control
- Noise Reduction: Yes
- Vox: XMIT Voice Trigger
- RX Attenuator: Yes
- TX Noise Gate: Yes
- Volume Control: Yes
- DBM/S Instrument: Yes
- Receiver Background Noise MDS: -135 dBm at 28 MHz (200 Hz BW)
- Blocking Dynamic Range: 20 kHz offset 123 dB, 2 kHz offset 78 dB
- Receiver Front-end Selectivity: +/-2 kHz scrolling at steep 45 dB/decade tuning frequency
- CW Decoder: Direct/Iambic-A/B keying
- Firmware: Open source, compatible with Arduino IDE
- Software Complexity: 2000 lines of code
- PTT/PA Output: Externally controlled
- CAT Protocol: Kenwood TS-480

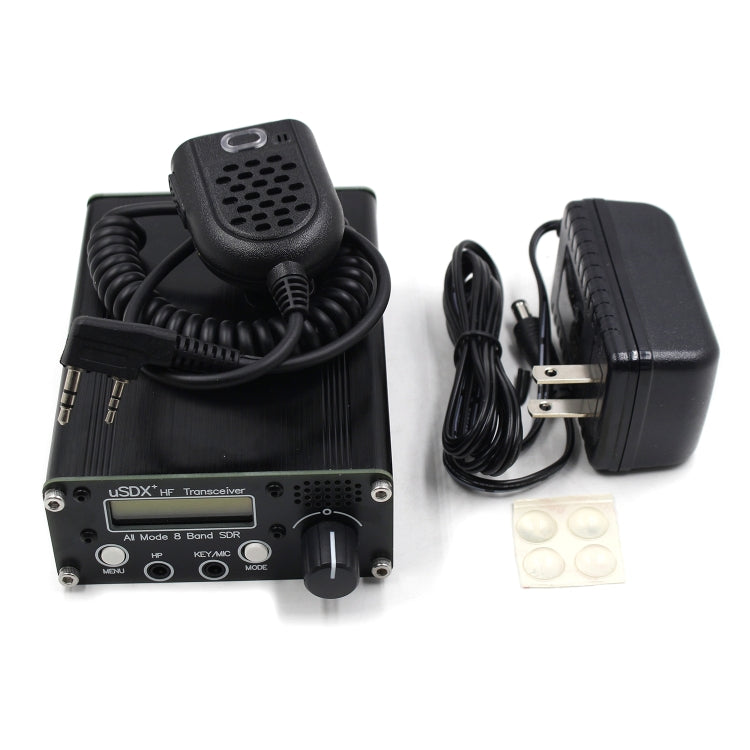

- Package Includes: Transceiver, microphone, charger, 4 machine floor mats
