Product details
Description

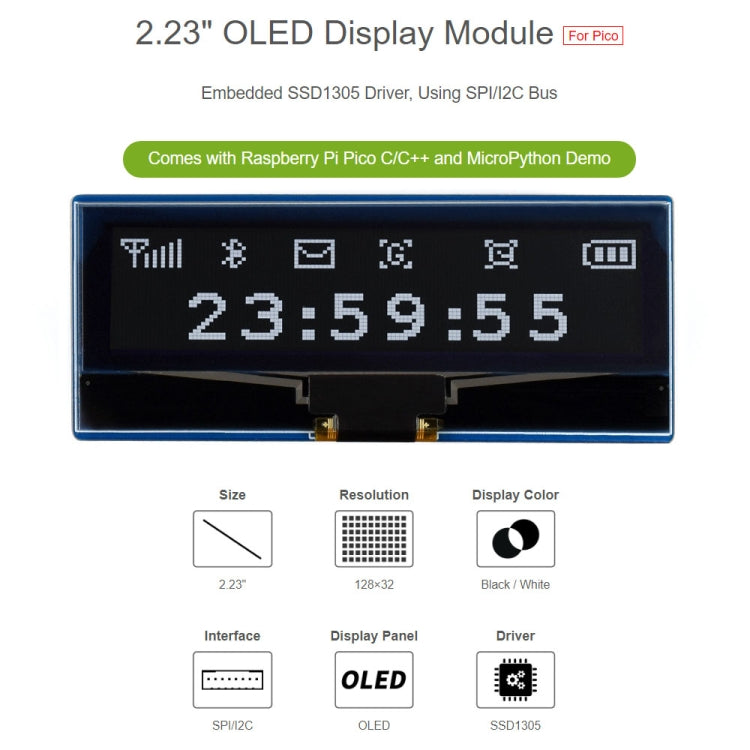

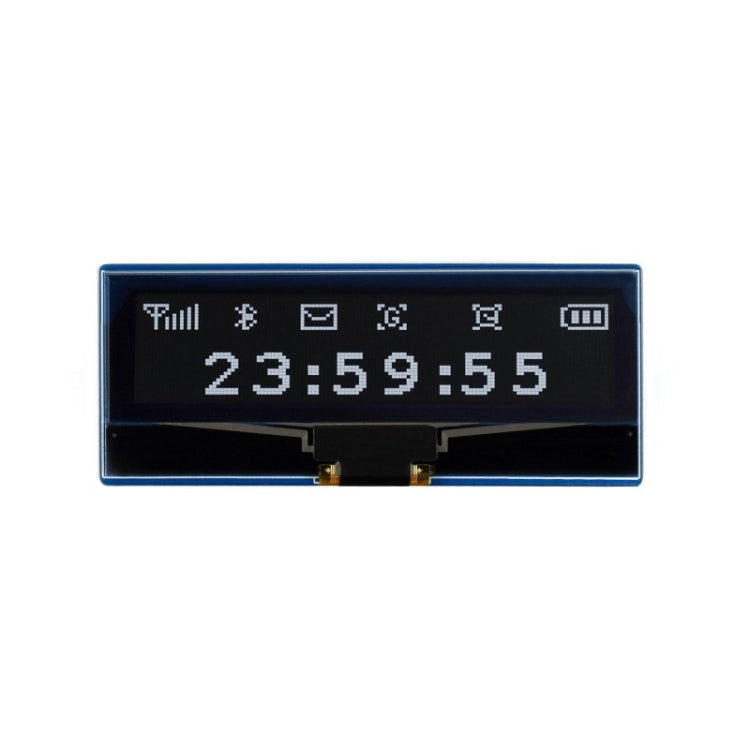

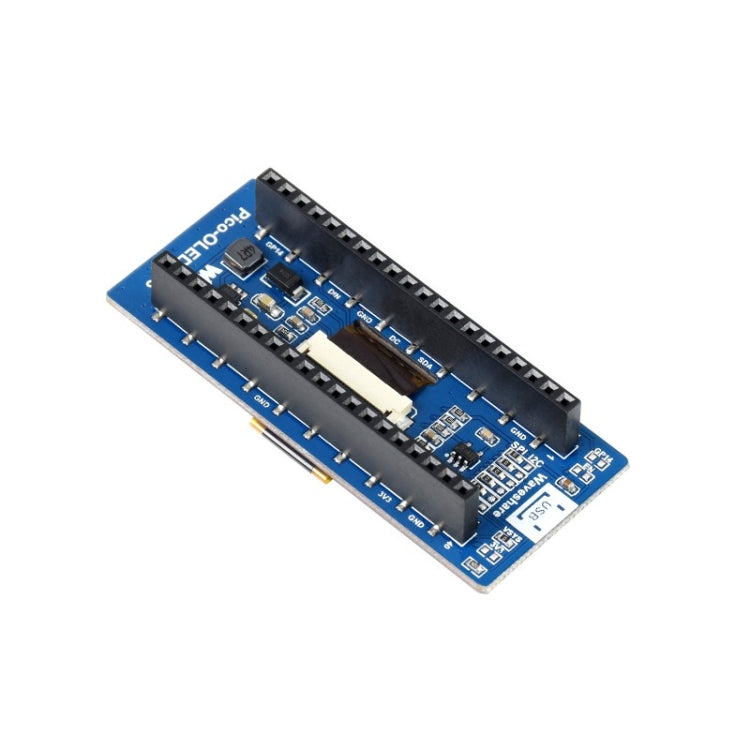

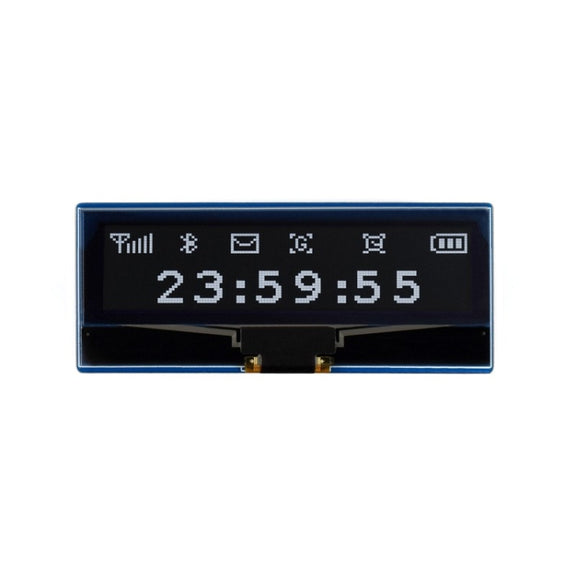

The WAVESHARE 128 x 32 Pixel 2.23 inch OLED Display Module is designed for use with the Raspberry Pi Pico. It is suitable for everyday applications requiring a compact display solution.
- Product Type: Module

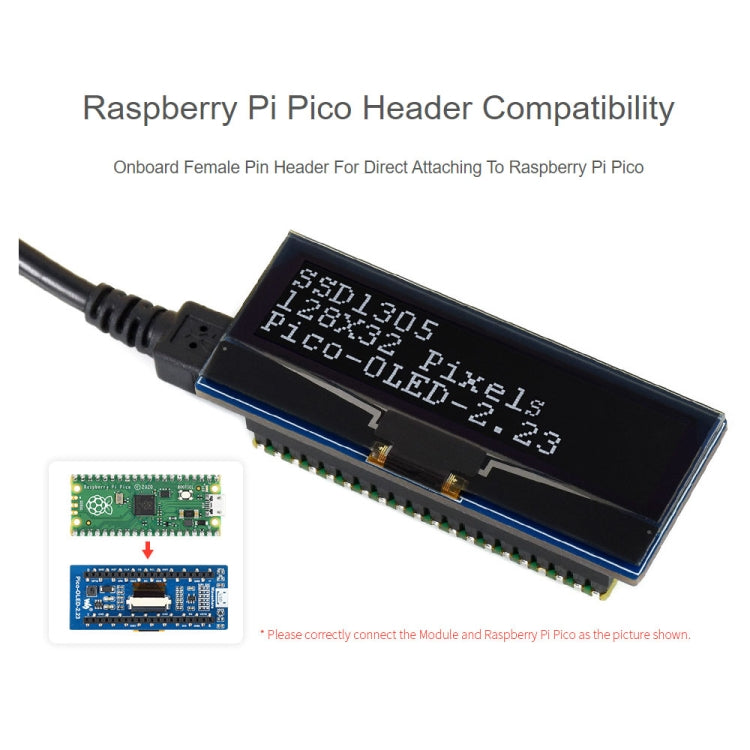

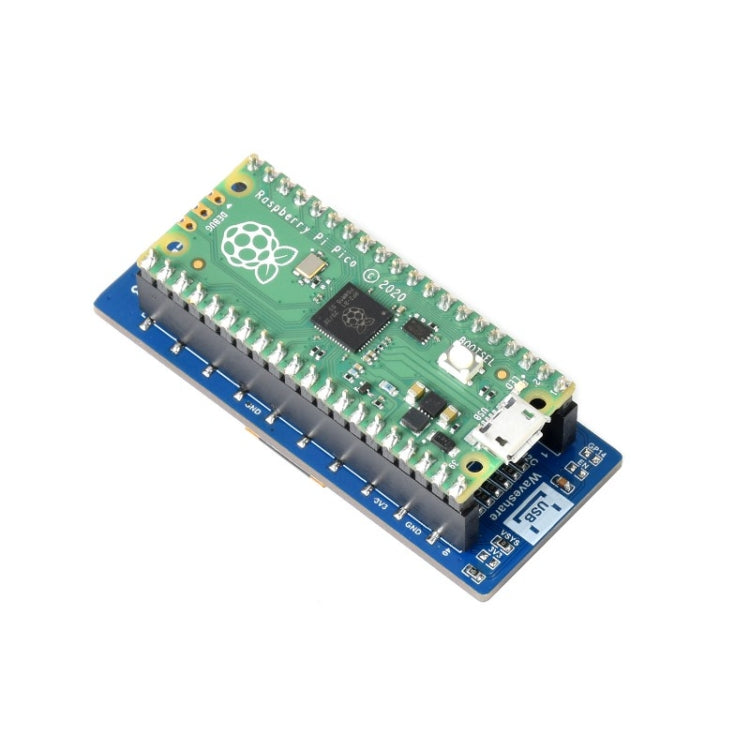

- Compatibility: Raspberry Pi Pico
- Material: OLED
- Key Feature: SPI/I2C interface
- Operating Voltage: 3.3V / 5V
- Logic Voltage: 3.3V
- Resolution: 128 x 32 pixels
- Viewing Angle: Greater than 160 degrees

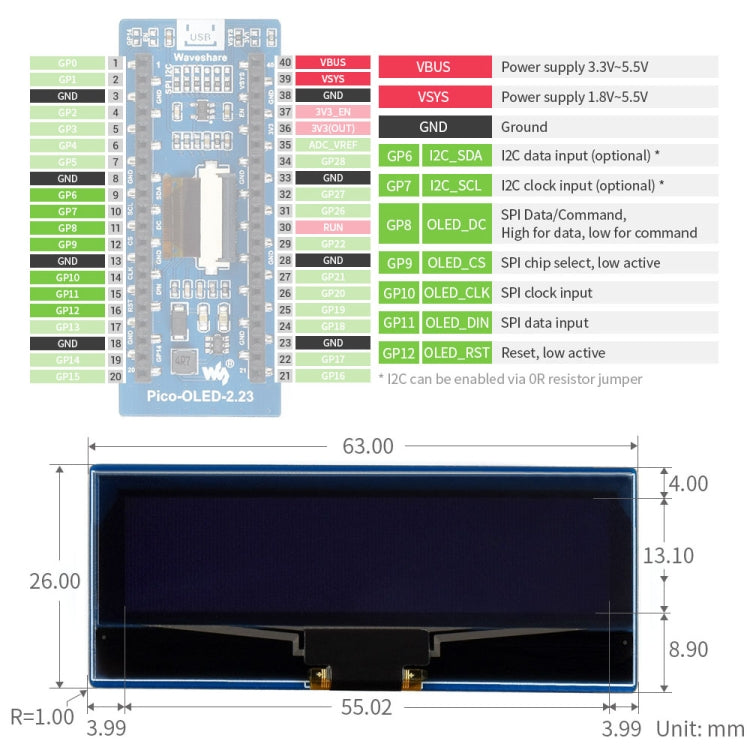

- Communication Interface: 4-wire SPI, I2C
- Display Size: 55.02 x 13.10 mm
- Pixel Size: 0.41 x 0.39 mm
- Driver: SSD1305
- Overall Size: 52.00 x 25.00 mm
- Development Resources: Includes manual and examples for Raspberry Pi Pico C/C++ and MicroPython
