Product details
Description

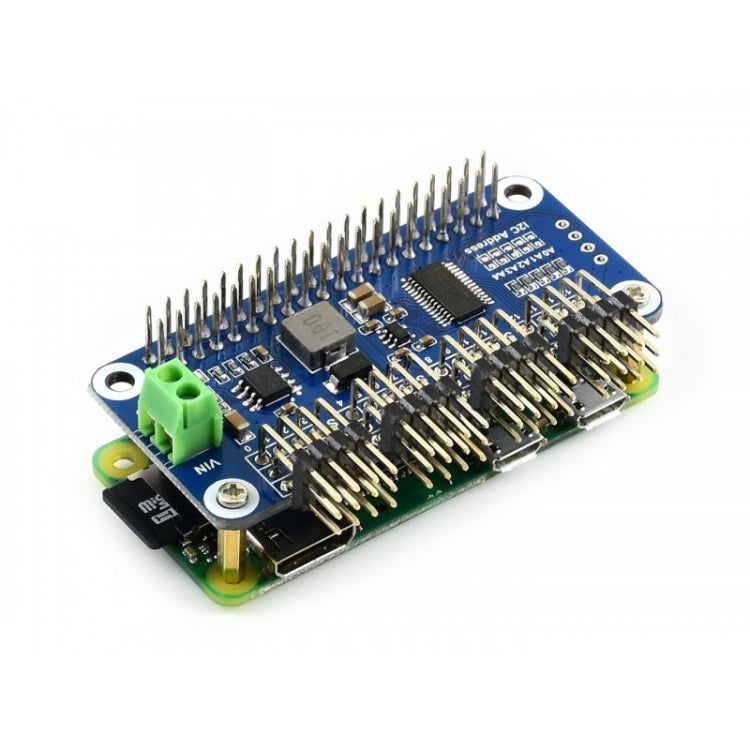

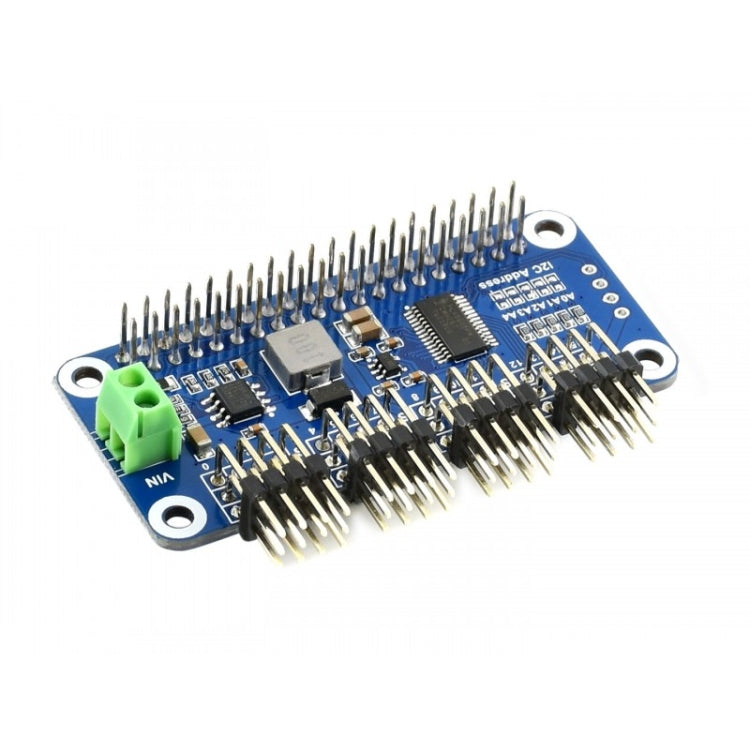

The Waveshare 16-Channel 12-bit I2C Servo Driver HAT B is an electronics module designed to control servos and PWM outputs. It is suitable for applications requiring precise control of multiple servos, such as robotic arms or hexapod walkers.
- Product Type: Electronics Module

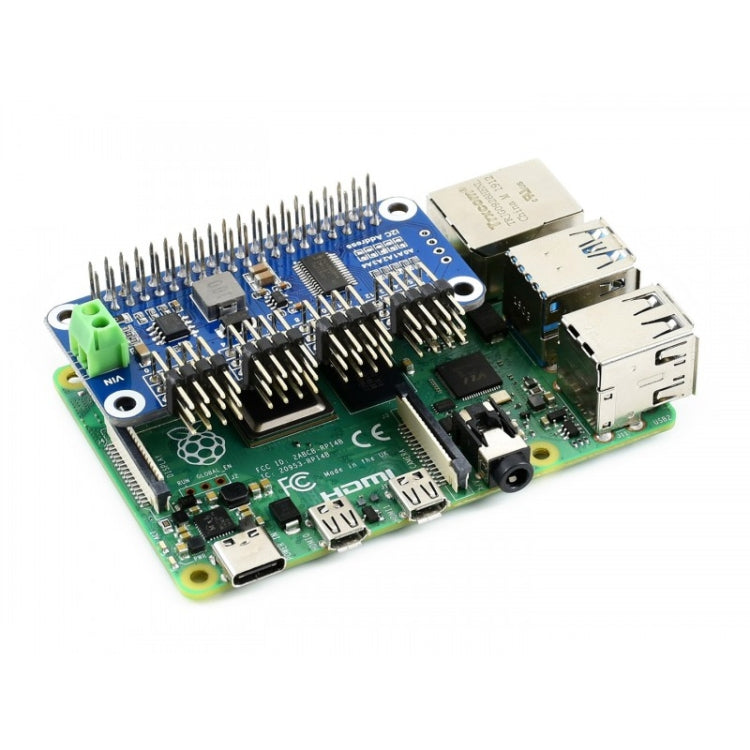

- Compatibility: Raspberry Pi series boards, Jetson Nano
- Power Supply: 5V (via Pi connector) or 6V-12V (via VIN terminal)
- Servo Voltage: 5V
- Logic Voltage: 3.3V

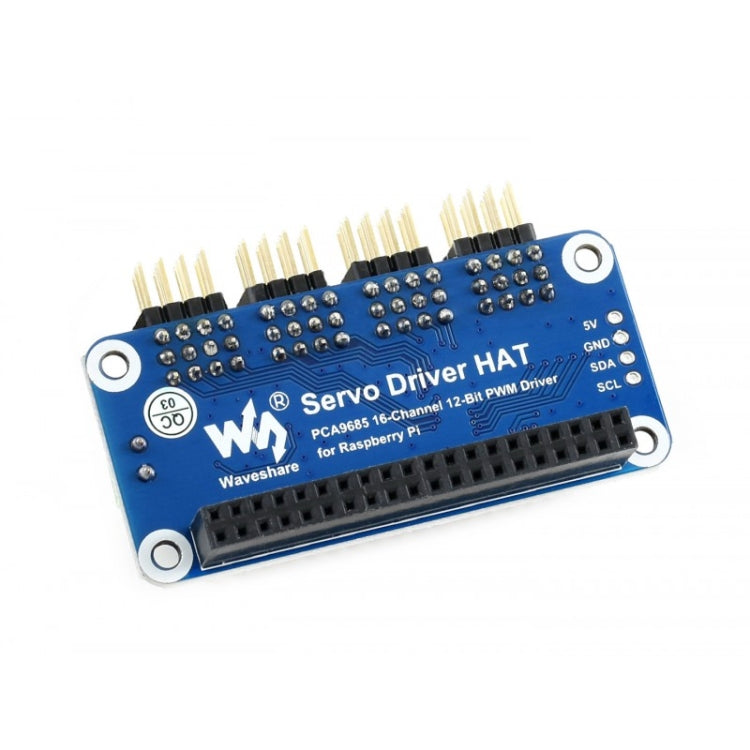

- Driver: PCA9685
- Control Interface: I2C
- Outputs: Up to 16 channels, 12-bit resolution (4096 scales)
- Current Output: Up to 3A

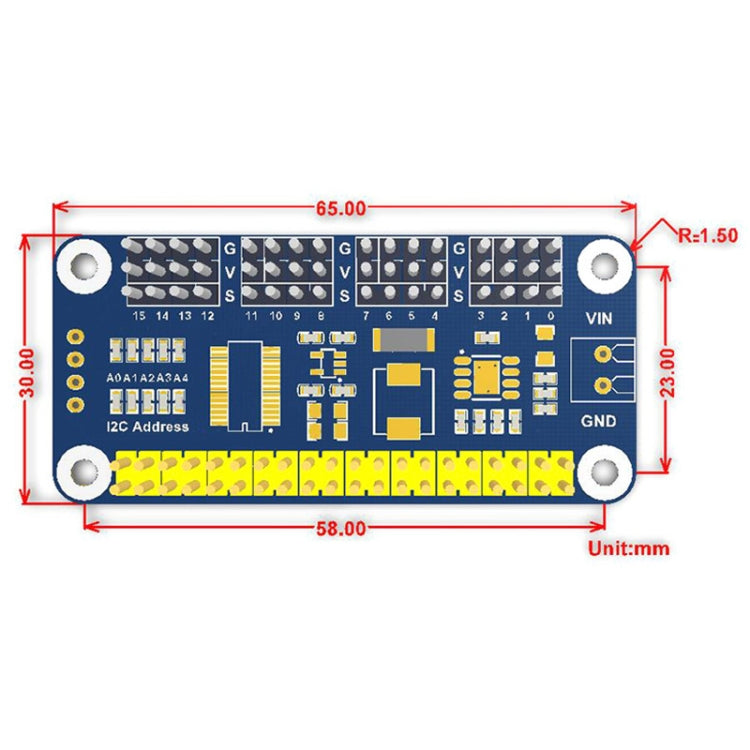

- Dimensions: 65mm x 30mm
- Mounting Hole Size: 3.0mm
- Standard Servo Interface: Compatible with SG90, MG90S, MG996R servos
- Includes: Servo Driver HAT, RPi screws pack (2pcs)
- Development Resources: Comes with manual and examples in Python for Bluetooth/WiFi remote control
