Product details
Description

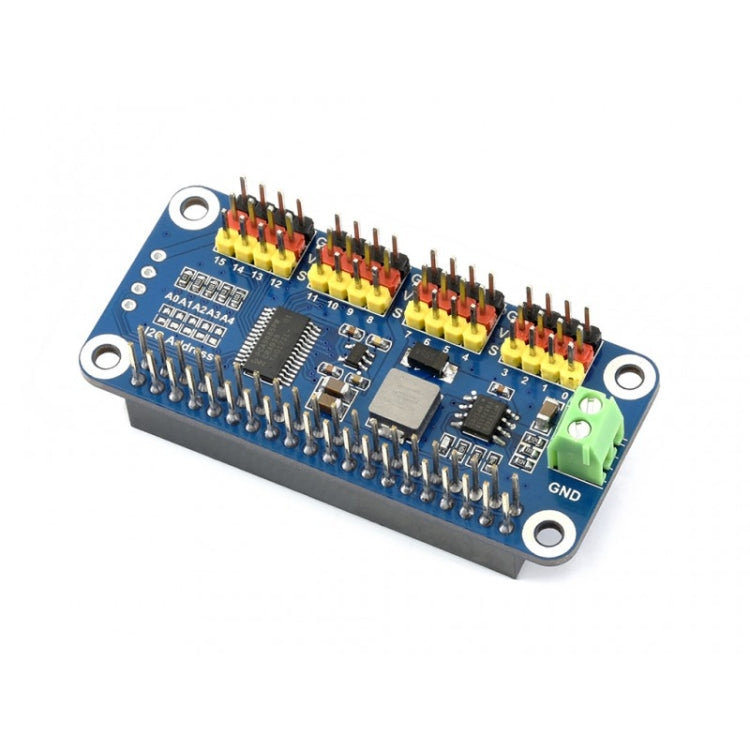

The Waveshare 16-Channel 12-bit I2C Servo Driver HAT is an electronics module designed to control up to 16 servos with precise PWM outputs. It is suitable for robotics projects where additional PWM outputs are required beyond the capabilities of the Raspberry Pi.
- Product Type: Electronics Module

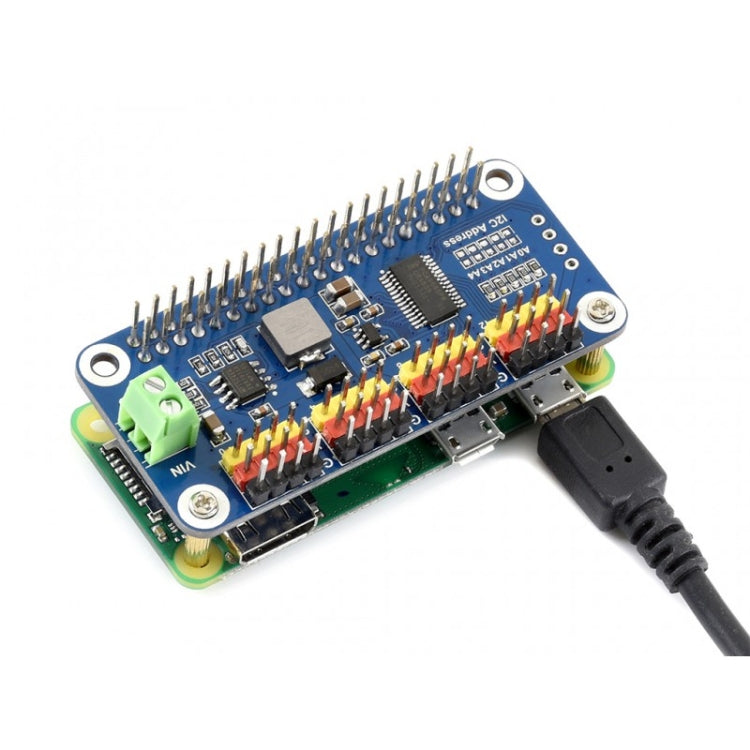

- Compatibility: Raspberry Pi series boards, Jetson Nano
- Power Supply: 5V (via Pi connector) or 6V-12V (via VIN terminal)
- Servo Voltage: 5V
- Logic Voltage: 3.3V

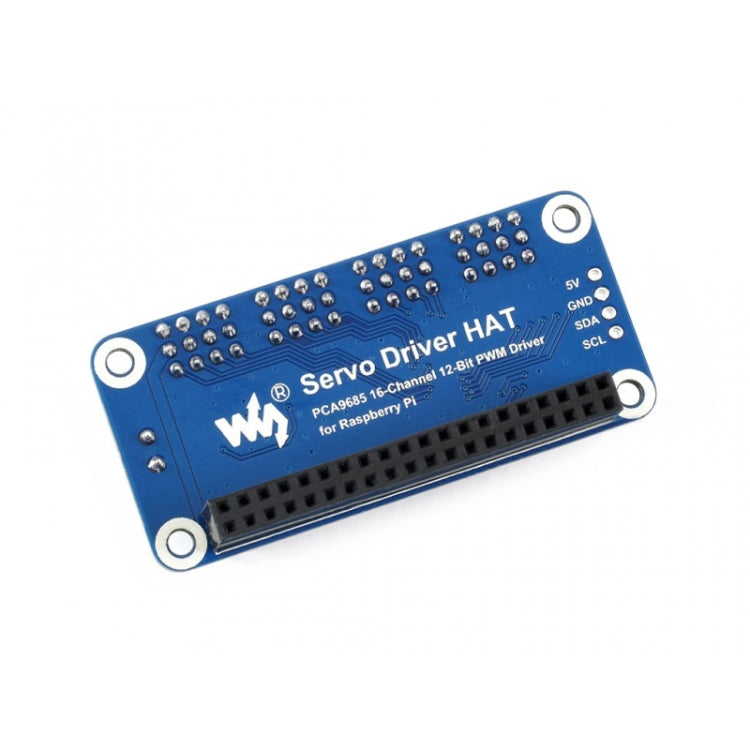

- Driver: PCA9685
- Control Interface: I2C
- Channel Outputs: Up to 16 channels, 12-bit resolution (4096 scales)
- Current Output: Up to 3A

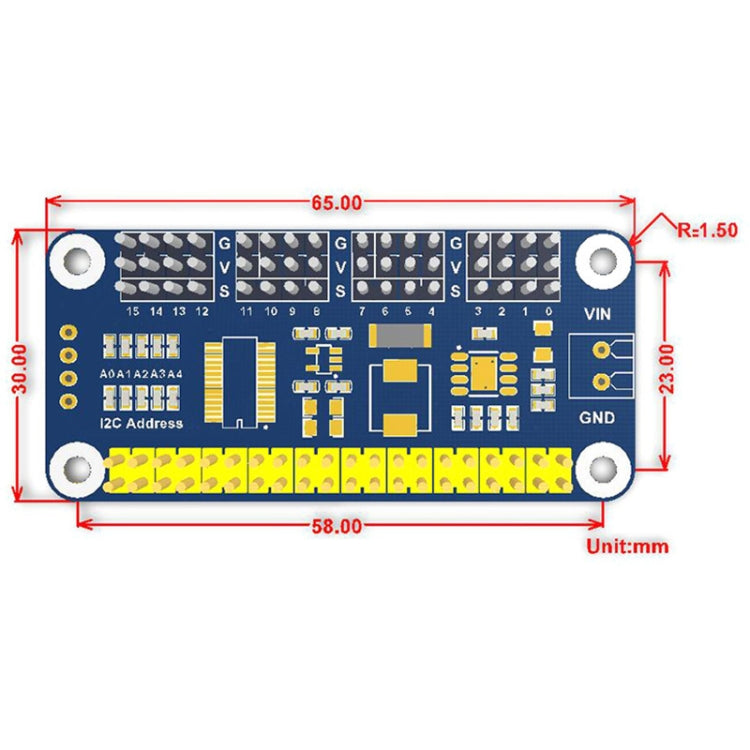

- Dimensions: 65mm x 30mm
- Mounting Hole Size: 3.0mm

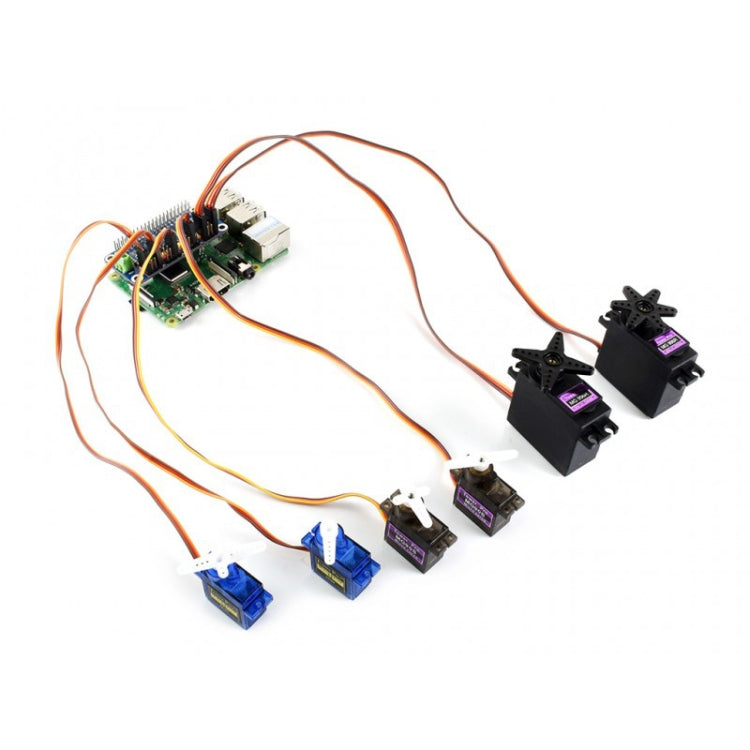

- Standard Servo Interface: Supports SG90, MG90S, MG996R servos
- Reserved I2C Control Pins: Allows integration with other control boards
- Development Resources: Includes manual and examples in Python for Bluetooth/WiFi remote control
- Package List: Servo Driver HAT x1, RPi screws pack (2pcs) x1
