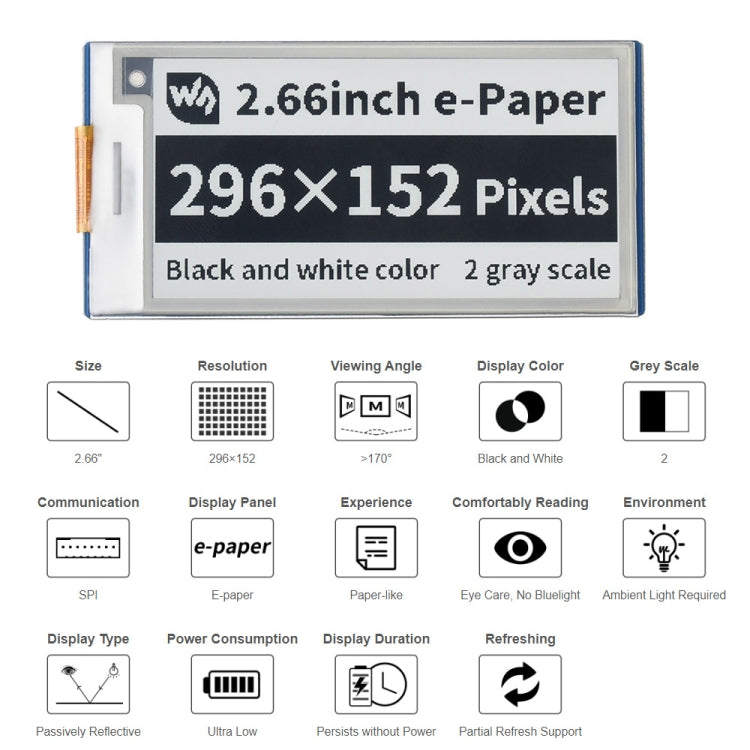

Waveshare 2.66 inch 296 x 152 Pixel Black / White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Waveshare 2.66 inch 296 x 152 Pixel Black / White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

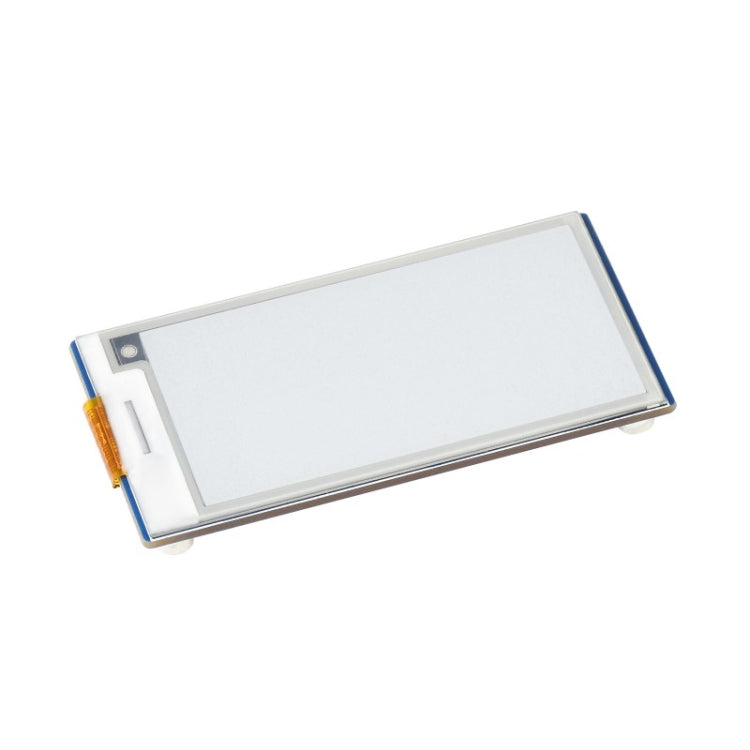

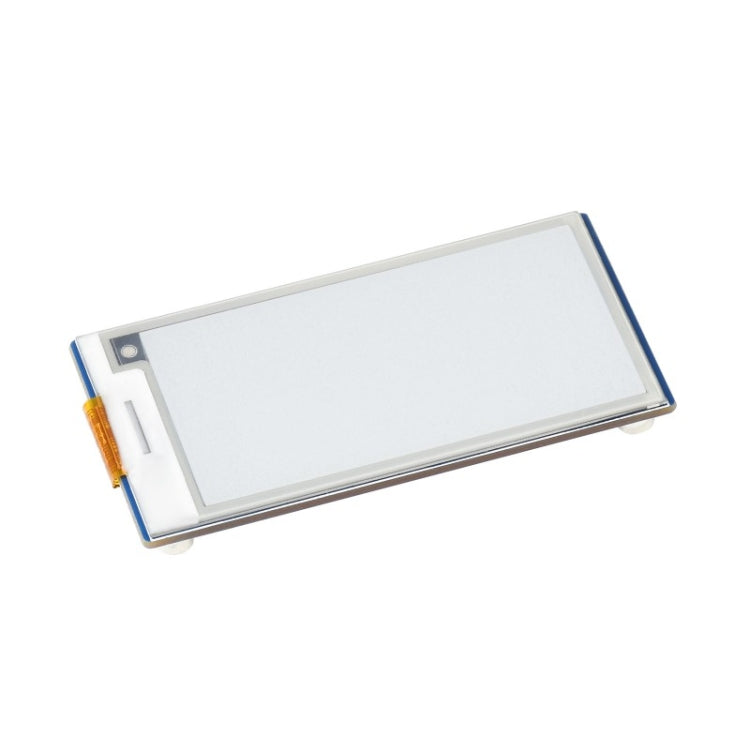

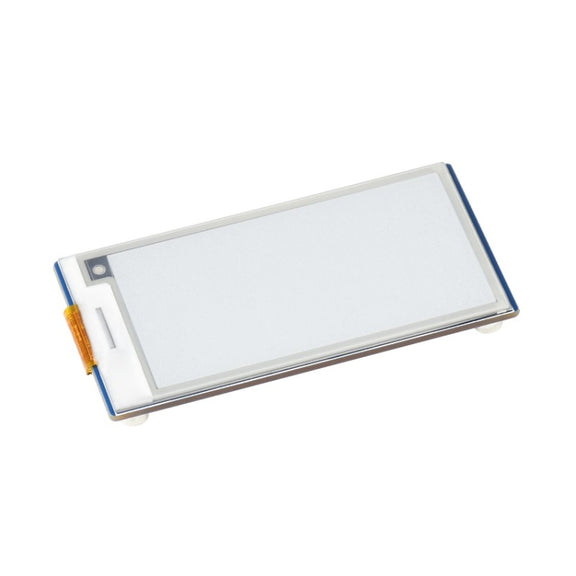

The Waveshare 2.66 inch E-Paper Display Module is designed for use with the Raspberry Pi Pico. It is suitable for applications requiring low power consumption and long-lasting display capabilities.
- Product Type: Display Module

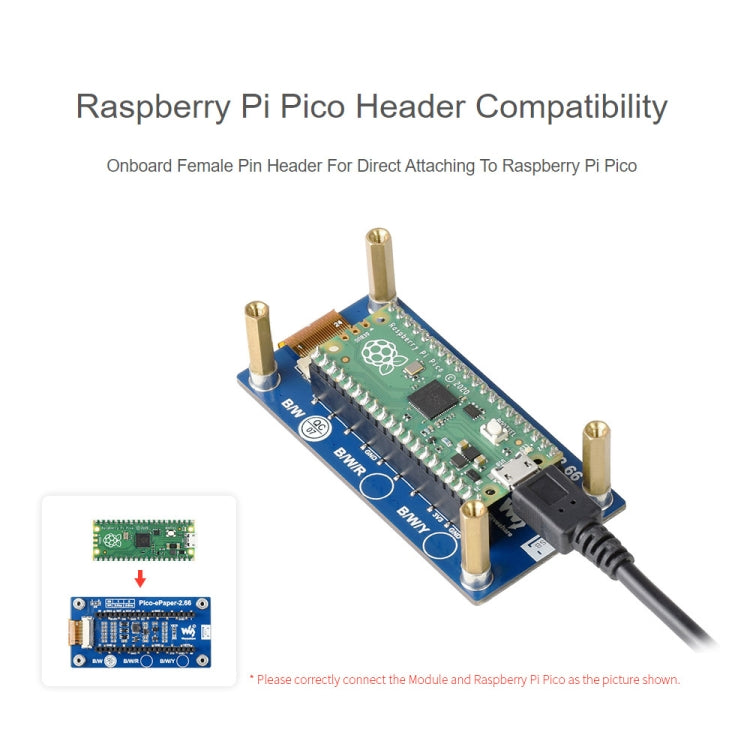

- Compatibility: Raspberry Pi Pico
- Material: Electronic components
- Color: Black, White
- Operating Voltage: 3.3V

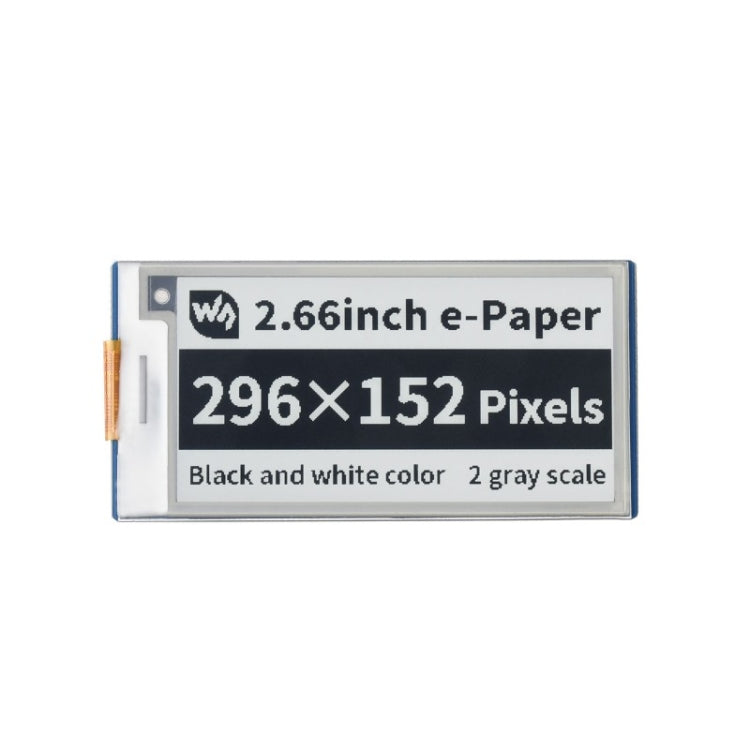

- Display Resolution: 296 x 152 pixels
- Display Size: 60.088 x 30.704 mm
- Viewing Angle: Greater than 170 degrees
- Grey Scale: 2

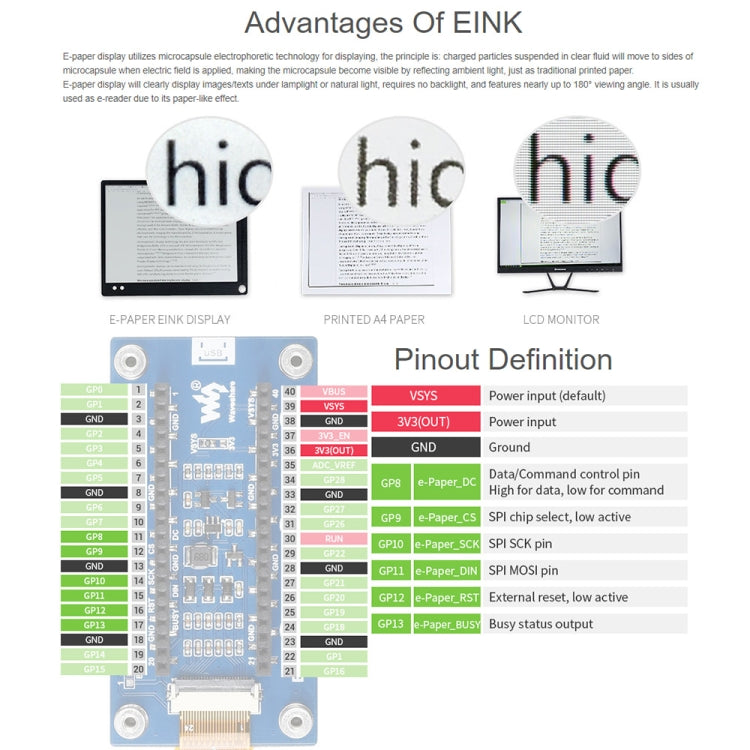

- Interface: 3-wire SPI, 4-wire SPI
- Partial Refresh Time: 0.3 seconds
- Full Refresh Time: 2 seconds
- Refresh Power: 42.4 mW (typical)
- Standby Current: Less than 0.01 µA
- Dot Pitch: 0.203 x 0.202 mm

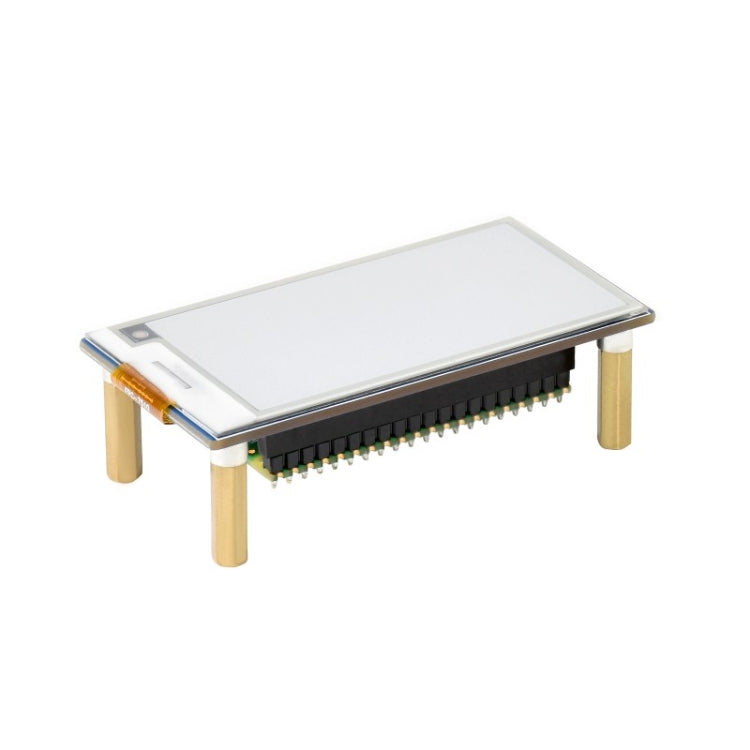

- Package List: Pico-ePaper-2.66 x1, Standoff pack x1
