Product details
Description

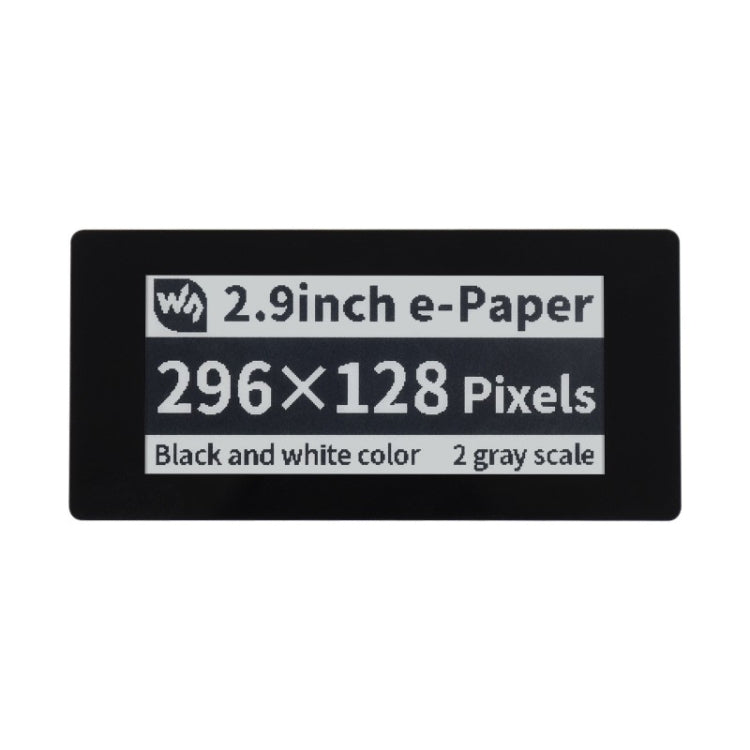

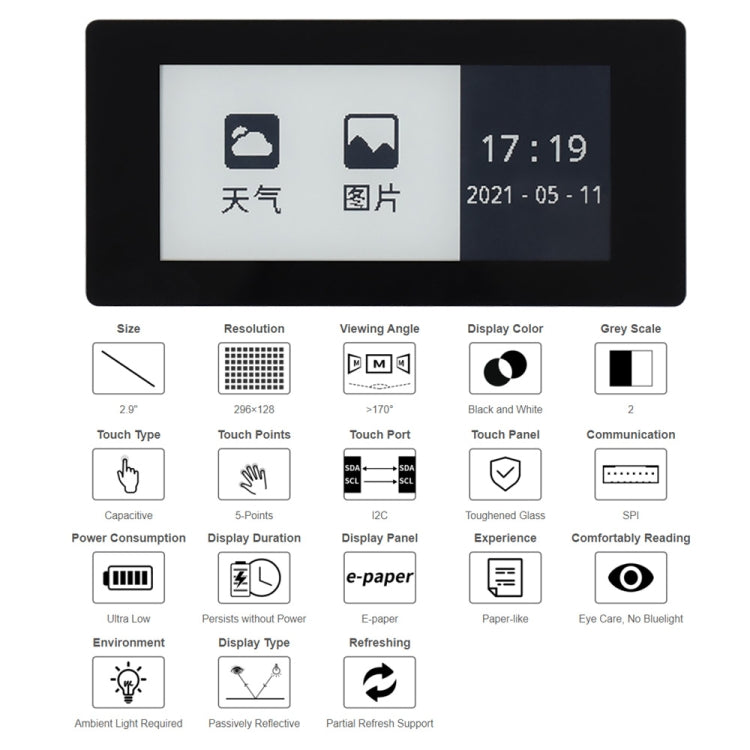

The Waveshare 2.9 inch E-Paper E-Ink Display HAT is a capacitive touch display module designed for Raspberry Pi Pico. It is suitable for applications requiring low power consumption and long-lasting display of static content.
- Product Type: E-Paper E-Ink Display HAT
- Compatibility: Raspberry Pi Pico
- Material: Electronic components
- Display Size: 2.9 inches
- Resolution: 296 x 128 pixels
- Display Color: Black and White
- Grey Scale: 2

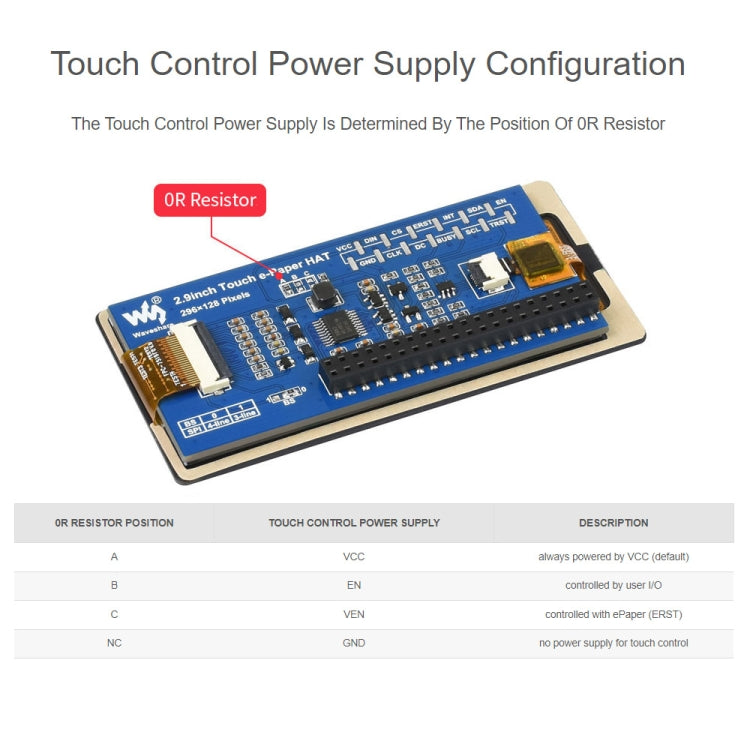

- Touch Support: 5-points touch support with user-defined wakeup gesture
- Power Requirements: Operating voltage of 3.3V/5V
- Refresh Power: 26.4mW (typical)
- Standby Current: Less than 0.01uA
- Interface: 3-wire SPI, 4-wire SPI
- Viewing Angle: Greater than 170 degrees
- Partial Refresh Time: 0.3 seconds
- Full Refresh Time: 2 seconds

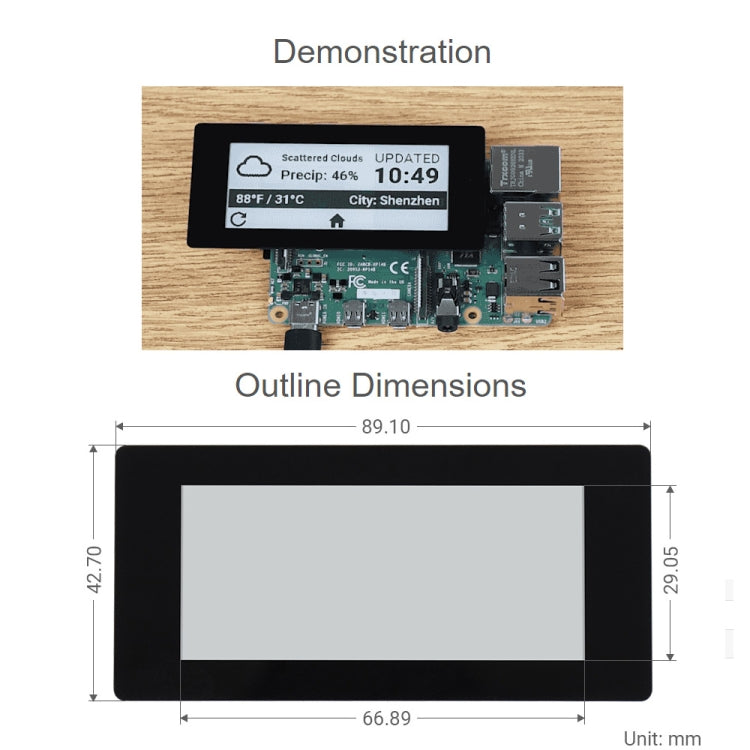

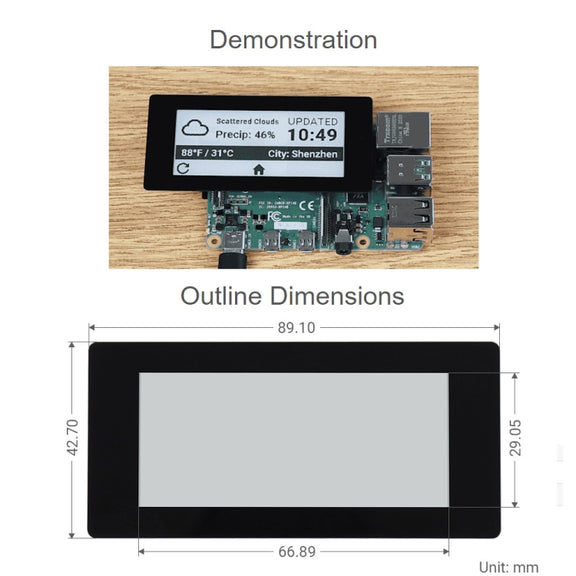

- Dimensions: 89.10 x 42.70 mm
- Dot Pitch: 0.227 x 0.226 mm
- Category: Electronics Module
- Development Resources: Includes manual and examples for Raspberry Pi

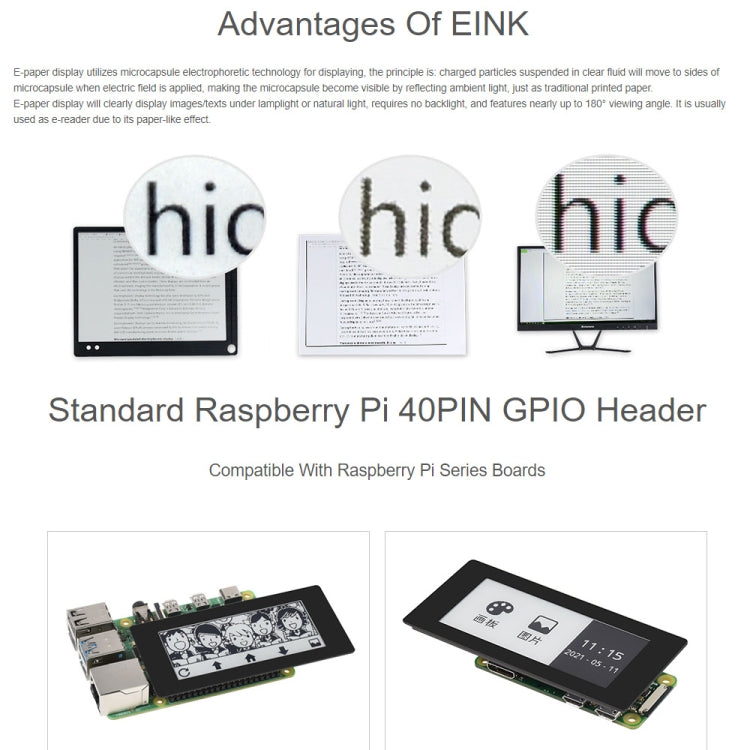

- GPIO Compatibility: Standard Raspberry Pi 40PIN GPIO extension header

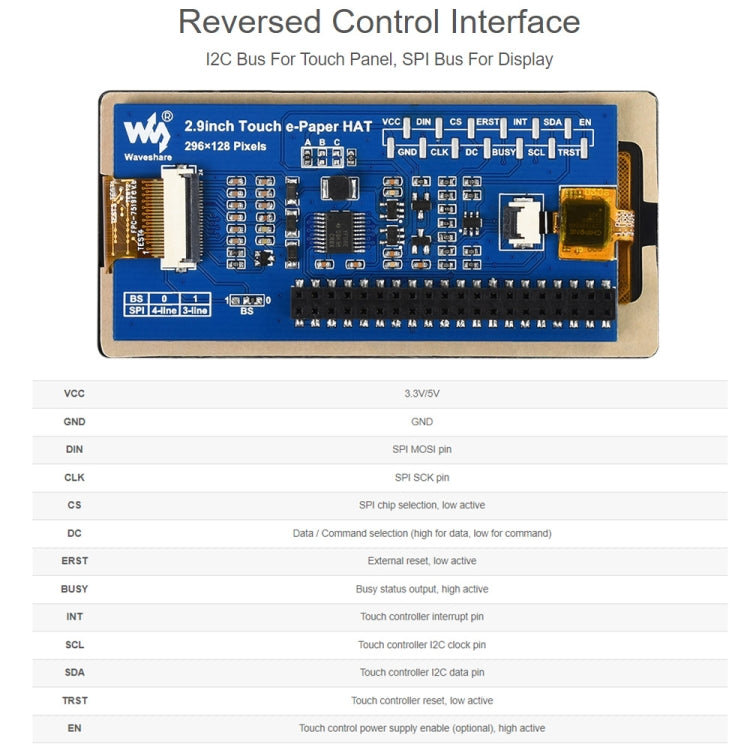

- Control Interface: Reversed control interface for Arduino/STM32
