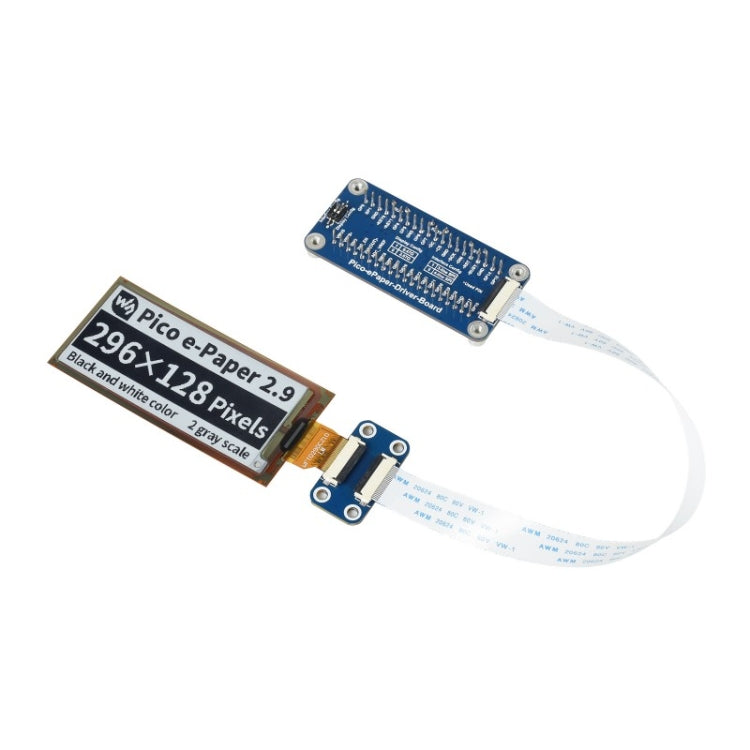

Waveshare 2.9 inch 296 x 128 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Waveshare 2.9 inch 296 x 128 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

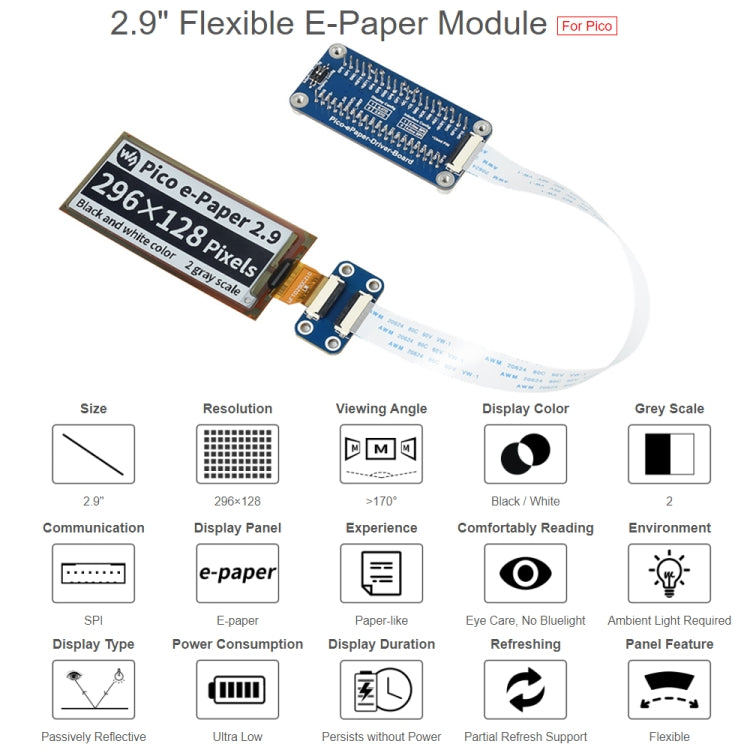

The Waveshare 2.9 inch E-Paper Display Module is designed for use with the Raspberry Pi Pico. It is suitable for applications requiring a flexible display that maintains content without power.
- Product Type: Display Module

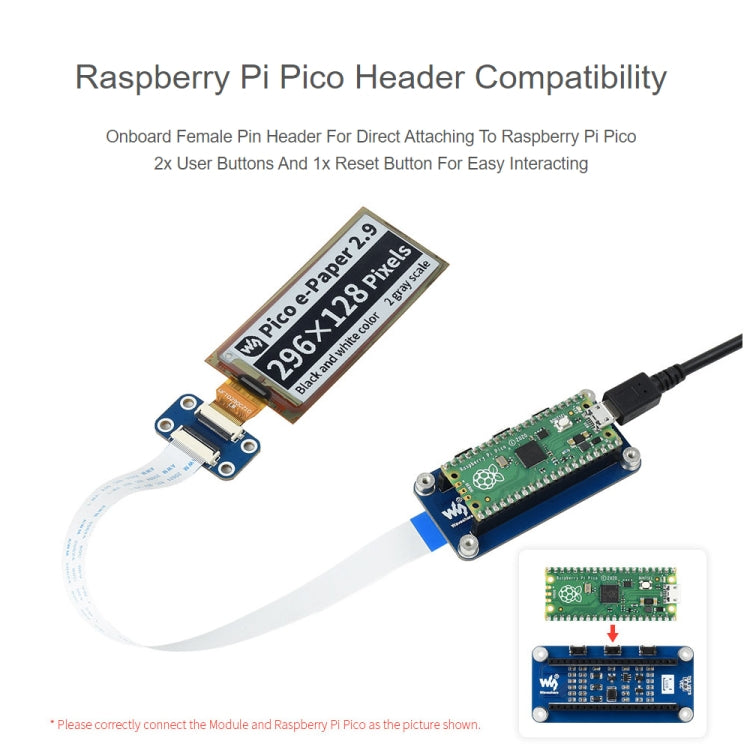

- Compatibility: Raspberry Pi Pico
- Material: Flexible E-Paper
- Color: Black and White
- Operating Voltage: 3.3V
- Resolution: 296 x 128 pixels
- Grey Scale: 2 levels

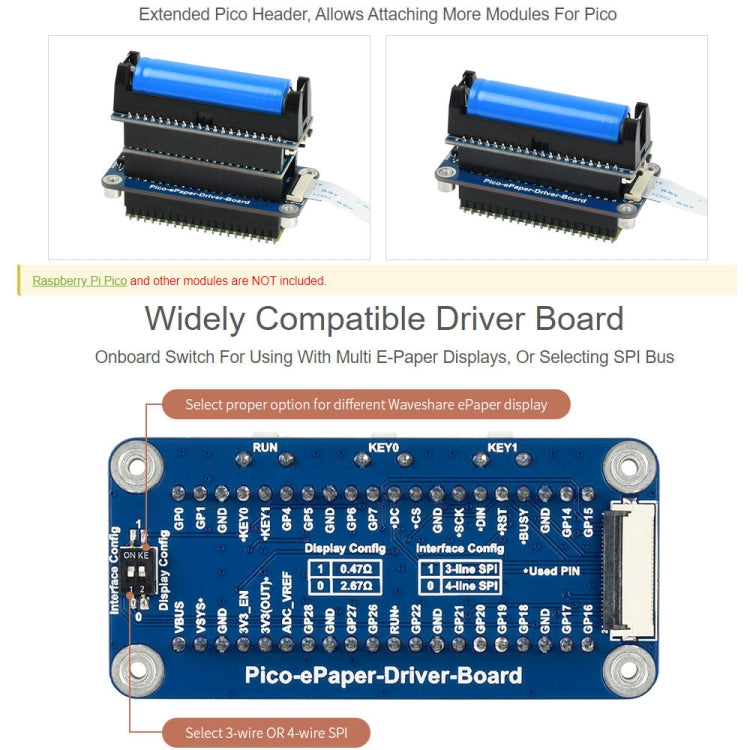

- Interface: 3-wire SPI, 4-wire SPI
- Viewing Angle: Greater than 170 degrees
- Partial Refresh Time: 0.3 seconds
- Full Refresh Time: 2 seconds

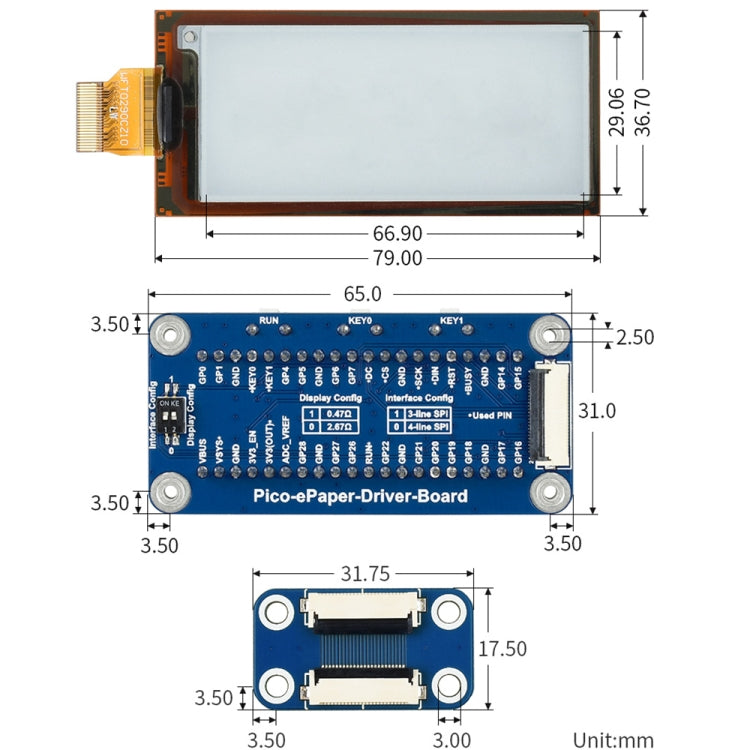

- Dimensions: 79.0 x 36.7 mm
- Display Size: 66.9 x 29.06 mm
- Refresh Power: 26.4 mW (typical)
- Standby Current: Less than 0.01 µA
- Dot Pitch: 0.227 x 0.226 mm
- Includes: 2.9 inch E-Paper Display, Pico-ePaper-Driver-Board, Standoff pack
