Product details
Description

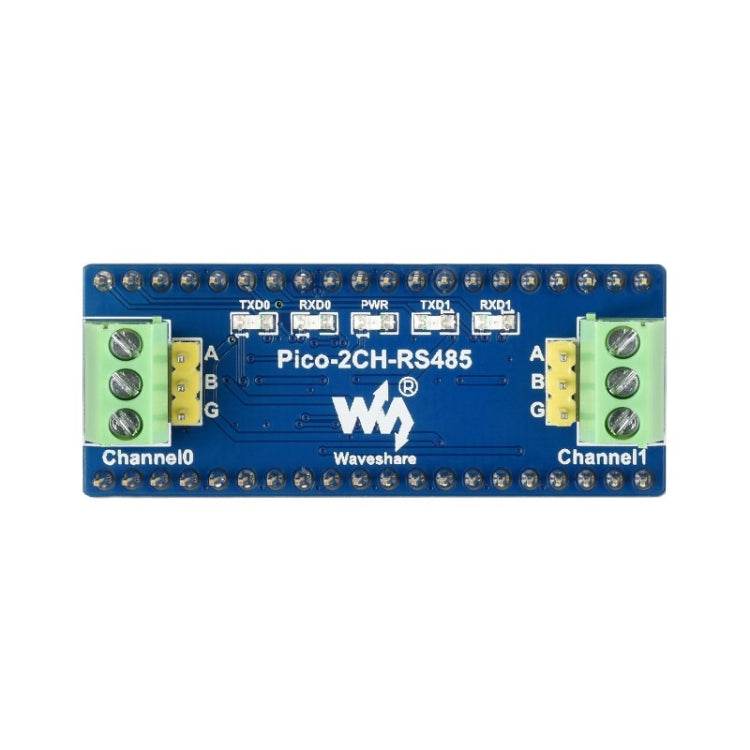

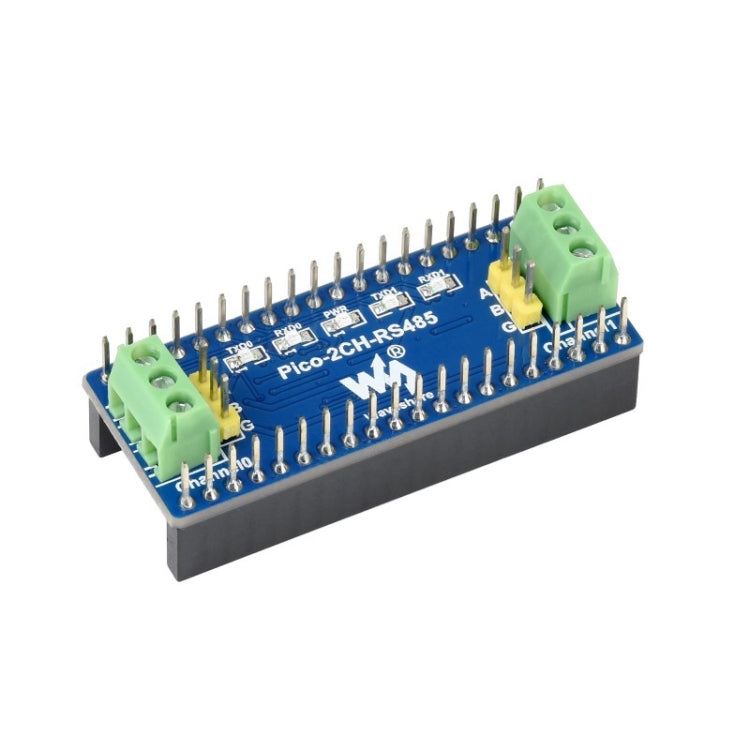

The Waveshare 2-Channel RS485 Module is designed for UART to RS485 conversion. It is suitable for applications requiring communication between devices using RS485 protocol.
- Product Type: Module Expansion Accessory
- Compatibility: Raspberry Pi Pico
- Operating Voltage: 3.3V
- RS485 Transceiver: SP3485
- Communication Bus: UART
- Baud Rate: 300~500000 bps
- Includes development resources and manual with Raspberry Pi Pico C/C++ and MicroPython examples

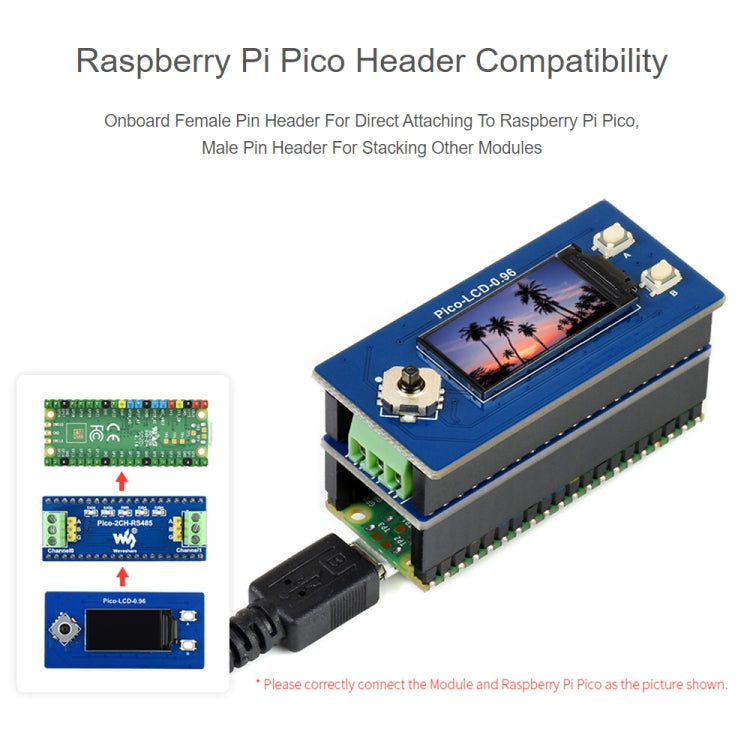

- Standard Raspberry Pi Pico header for easy integration
