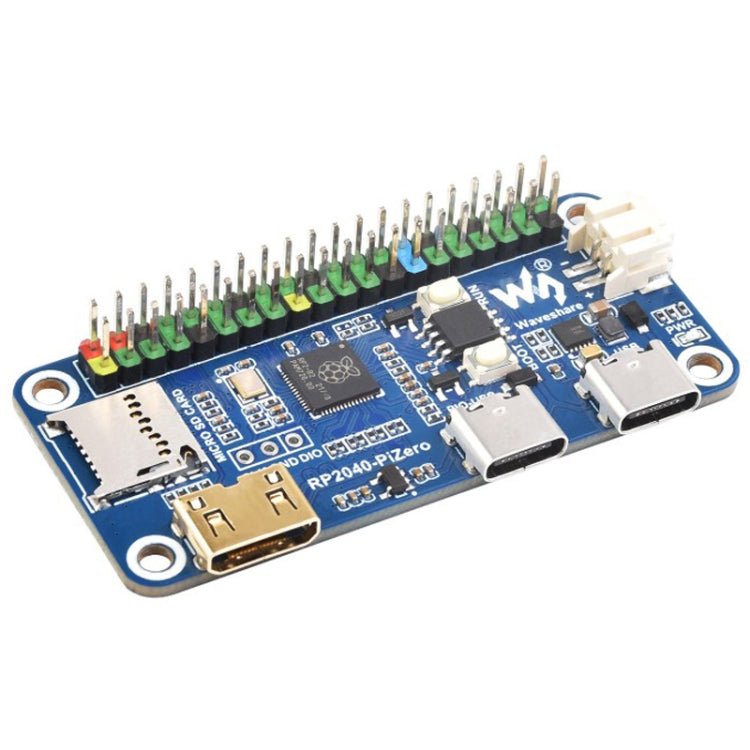

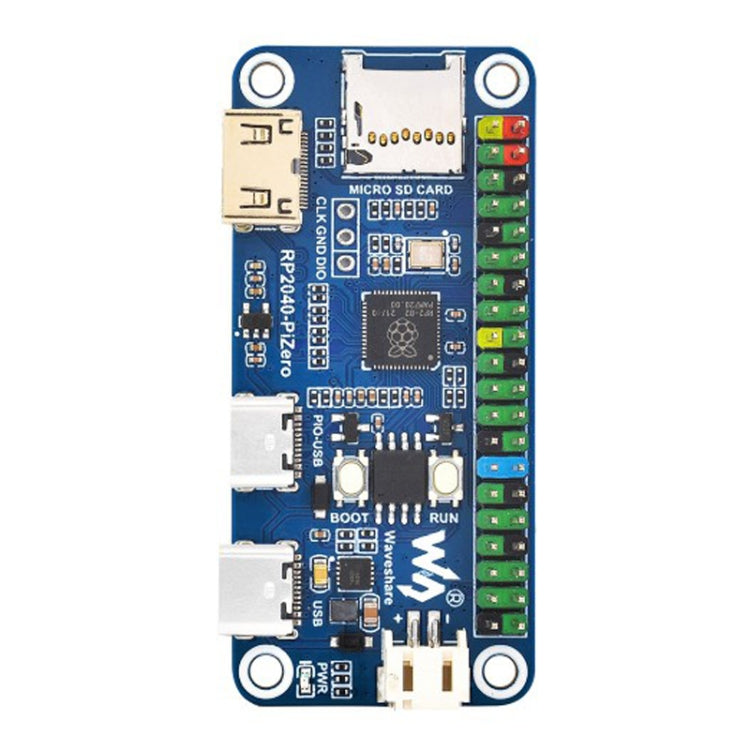

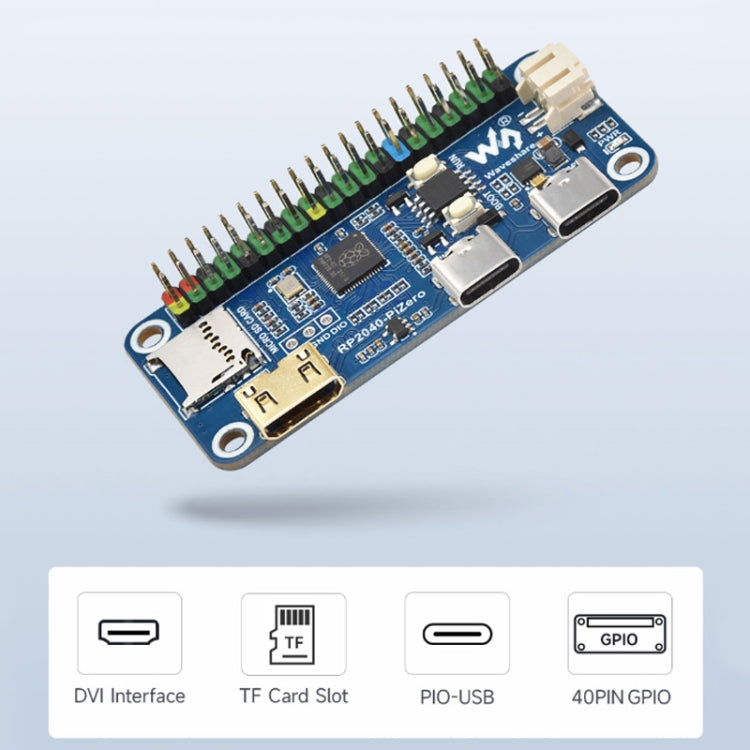

Waveshare 25506 RP2040-PiZero Development Board, Based On Raspberry Pi RP2040, 264KB SRAM And 16MB

The Waveshare 25506 RP2040-PiZero Development Board is a module designed for development and integration. It is suitable for projects requiring a dual-core ARM Cortex M0+ processor and various I/O capabilities.

• Product Type: Modules Expansions Accessories
• Compatibility: Raspberry Pi RP2040
• Material: Not specified

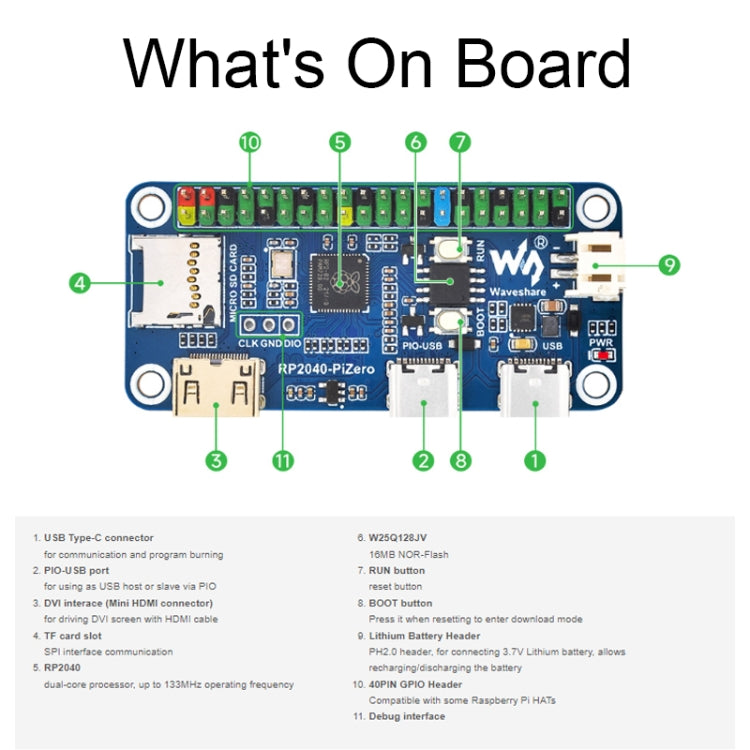

• Key Features: Onboard DVI interface, TF card slot, PIO-USB port
• Processor: RP2040 microcontroller chip
• Processor Type: Dual-core ARM Cortex M0+
• Clock Speed: Up to 133 MHz
• Memory: 264KB SRAM, 16MB onboard Flash memory

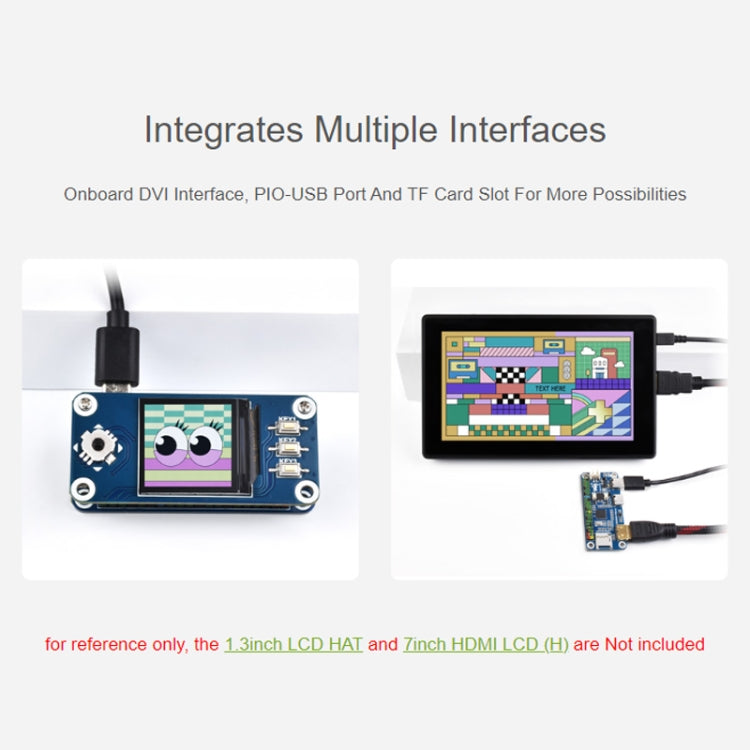

• Onboard DVI Interface: Drives most HDMI screens (DVI compatibility required)
• USB Support: USB host or slave via onboard PIO-USB port
• TF Card Slot: For reading and writing TF cards
• Battery Header: Onboard Lithium battery recharge/discharge header
• USB Version: USB 1.1 with device and host support
• Programming: Drag-and-drop programming using mass storage over USB
• Power Modes: Low-power sleep and dormant modes

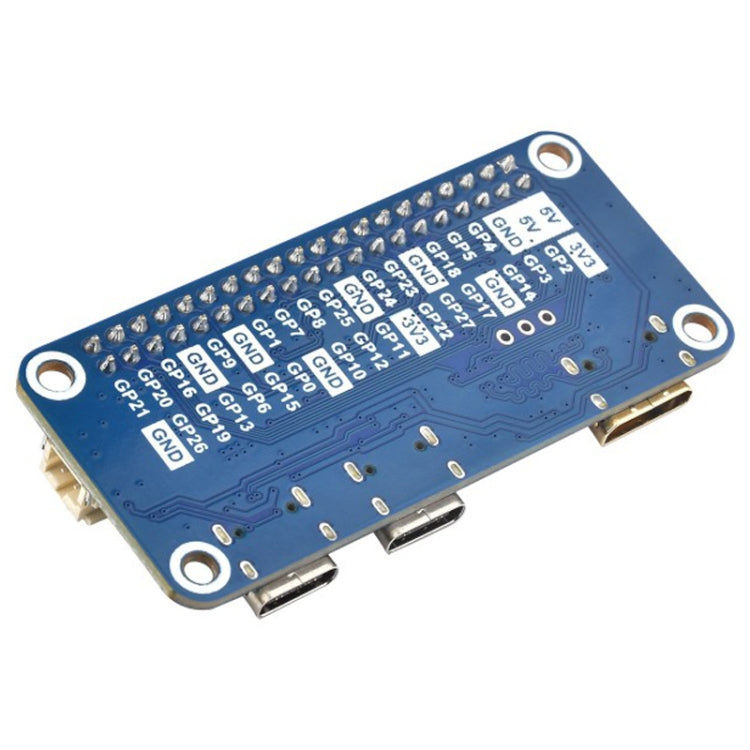

• I/O Capabilities: 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Clock and Timer: Accurate clock and timer on-chip
• Temperature Sensor: Integrated temperature sensor
• Floating-Point Libraries: Accelerated floating-point libraries on-chip
• PIO State Machines: 8 × Programmable I/O (PIO) state machines

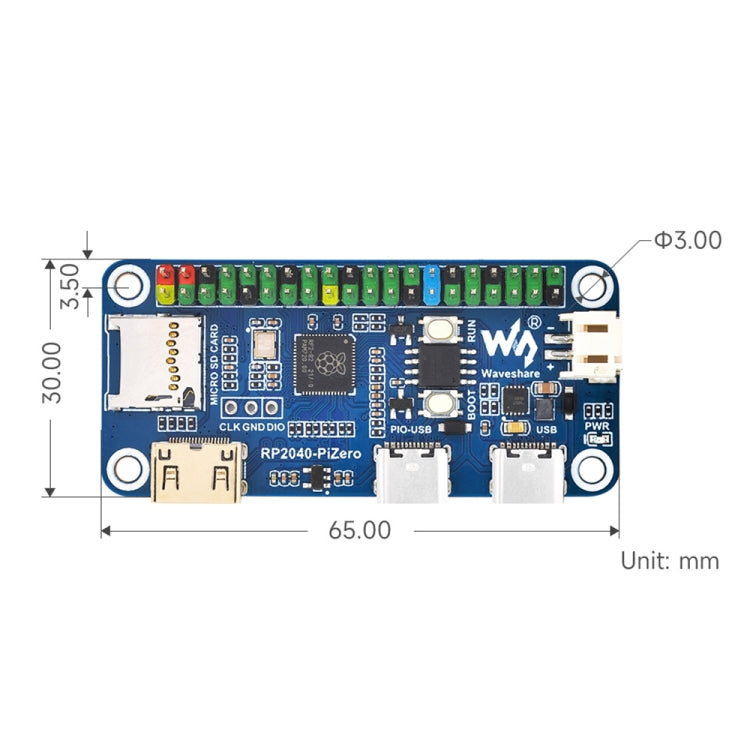

• Product Size: 65 x 30 mm
• Weight: 12 grams
