Product details
Description

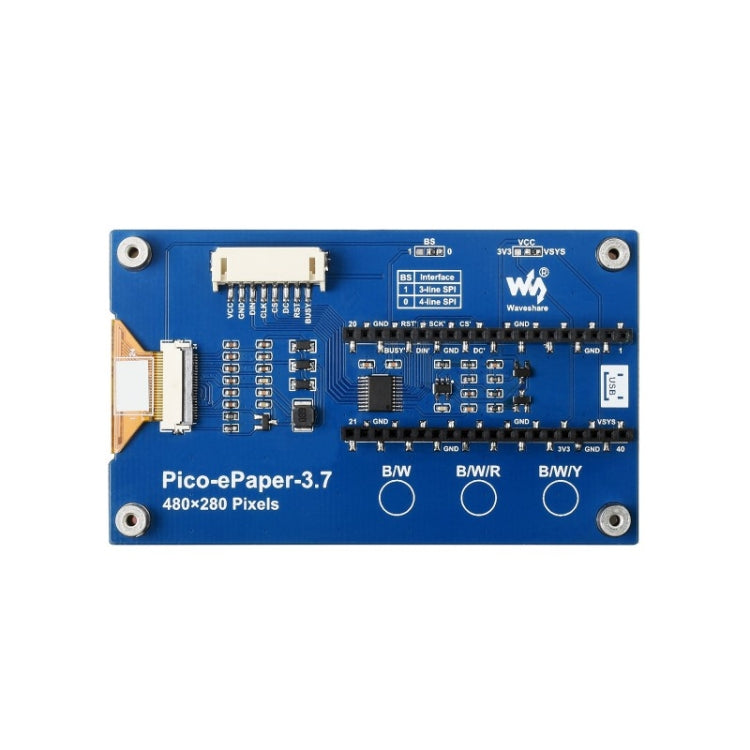

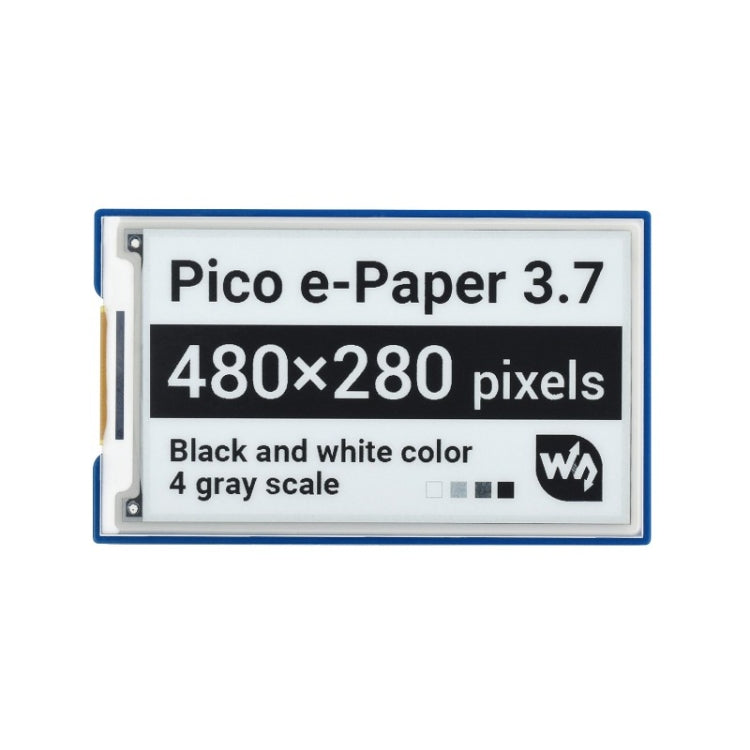

The Waveshare 3.7 inch E-Paper E-Ink Display Module is designed for use with the Raspberry Pi Pico. It is suitable for applications requiring low power consumption and long-lasting display capabilities.
- Product Type: Module

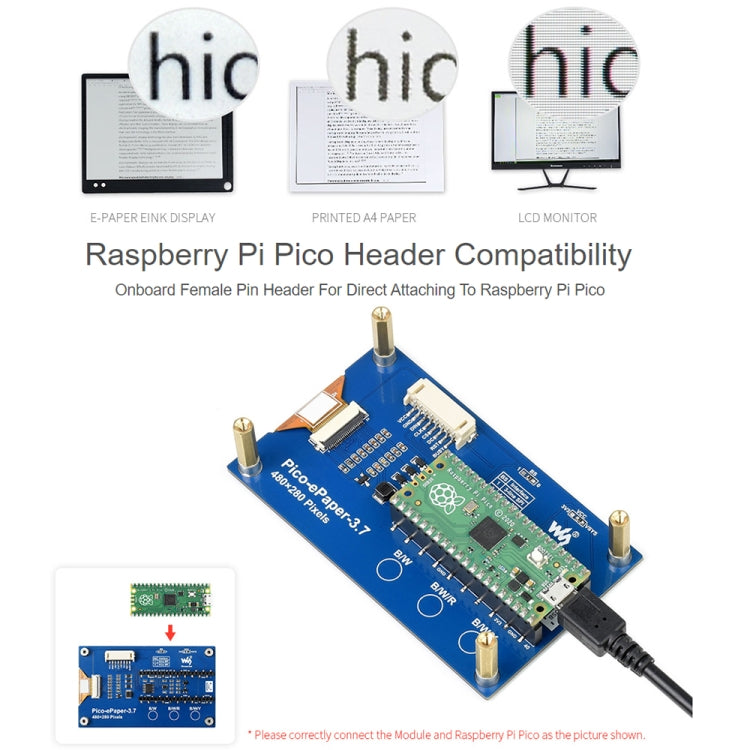

- Compatibility: Raspberry Pi Pico
- Material: Electronic components
- Color: Black, White

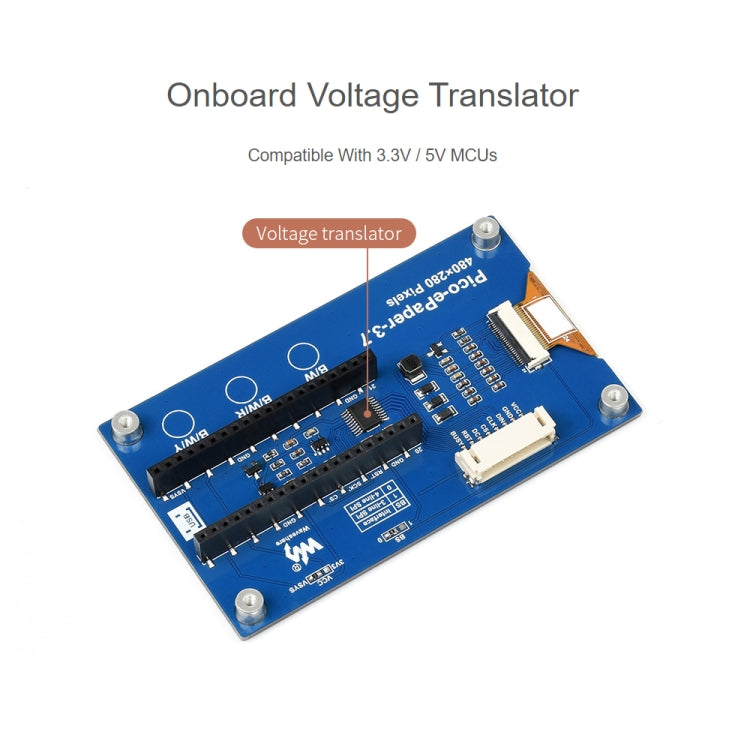

- Operating Voltage: 3.3V/5V

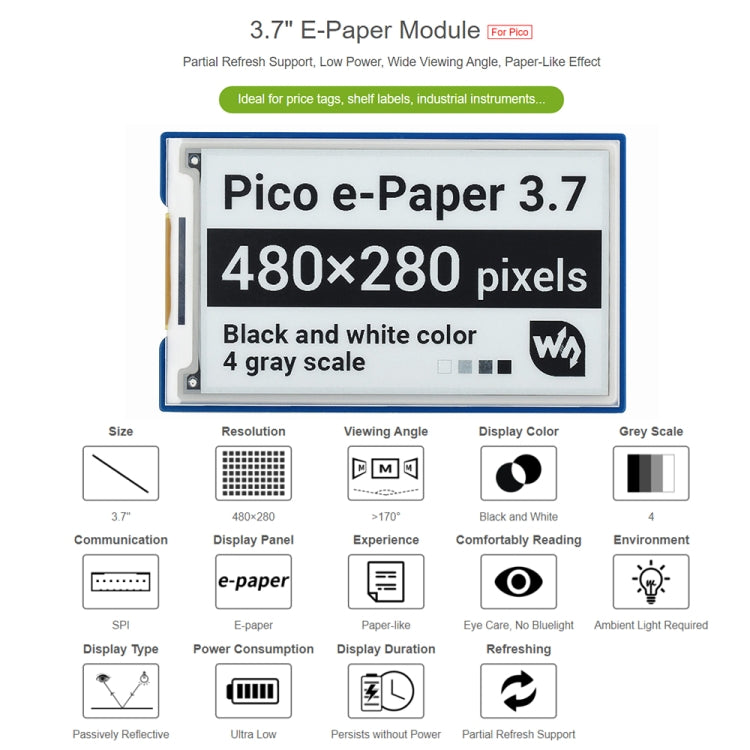

- Display Resolution: 480x280 pixels

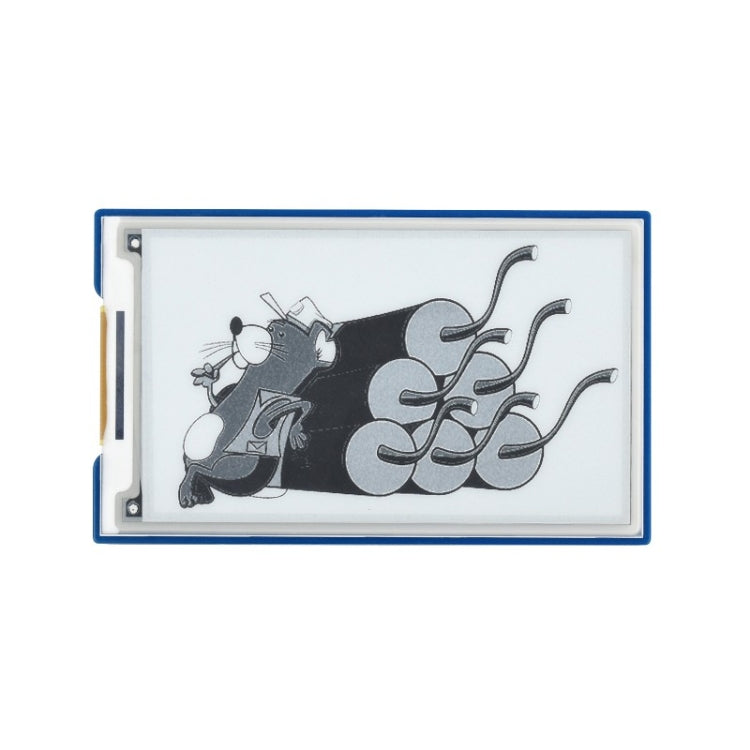

- Grayscale: 4 levels

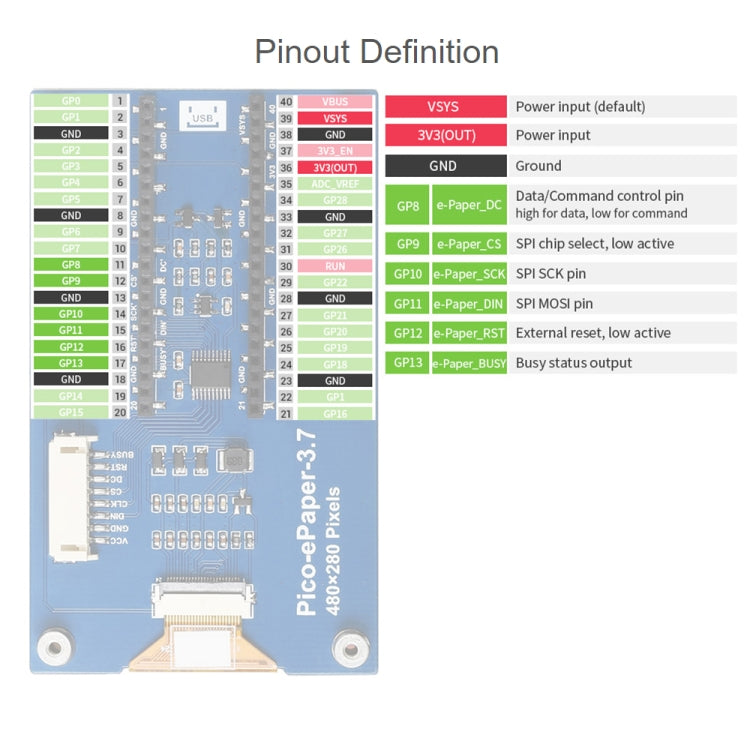

- Interface: 3-wire SPI, 4-wire SPI
- Viewing Angle: Greater than 170 degrees
- Partial Refresh Time: 0.3 seconds
- Full Refresh Time: 3 seconds

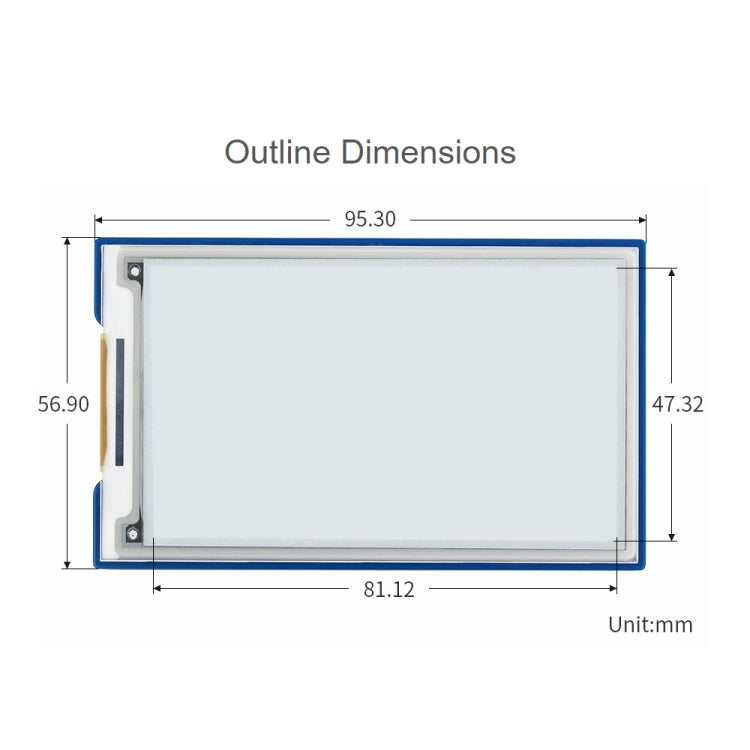

- Outline Dimensions: 95.3 x 56.9 mm
- Display Size: 81.12 x 47.32 mm
- Refresh Power: 26.4 mW (typical)
- Standby Current: Less than 0.01 µA
- Dot Pitch: 0.169 x 0.169 mm
- Package List: Pico-ePaper-3.7 x 1, Standoff pack x 1
