Product details
Description

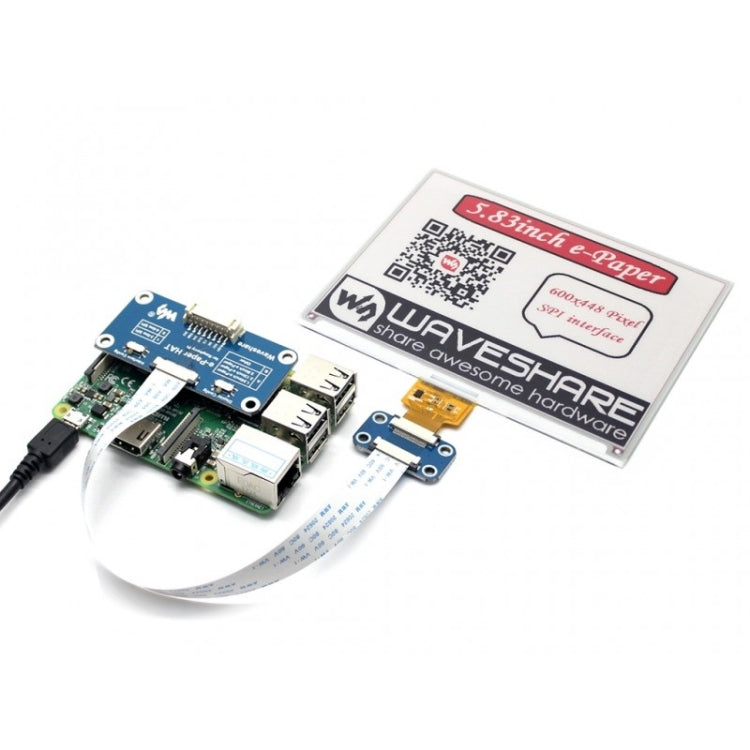

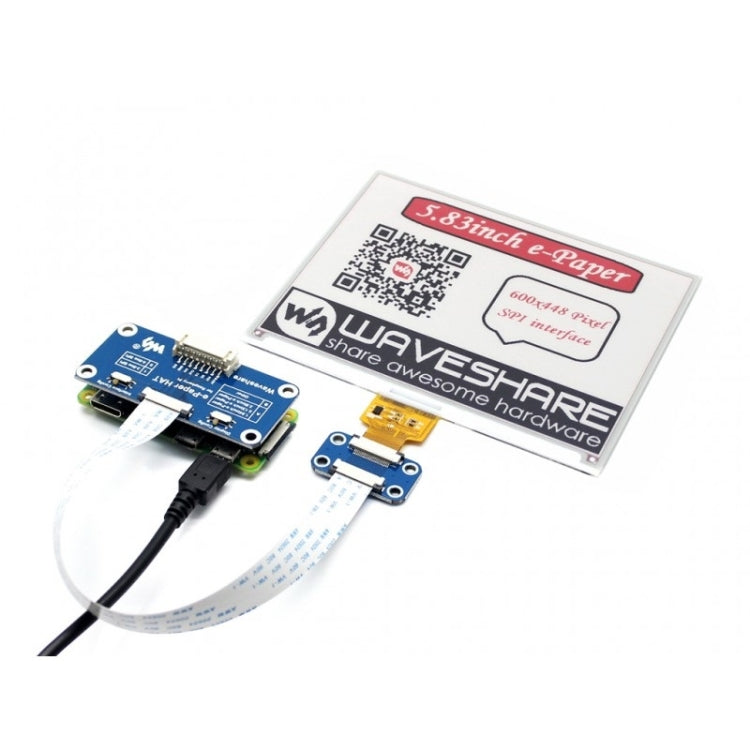

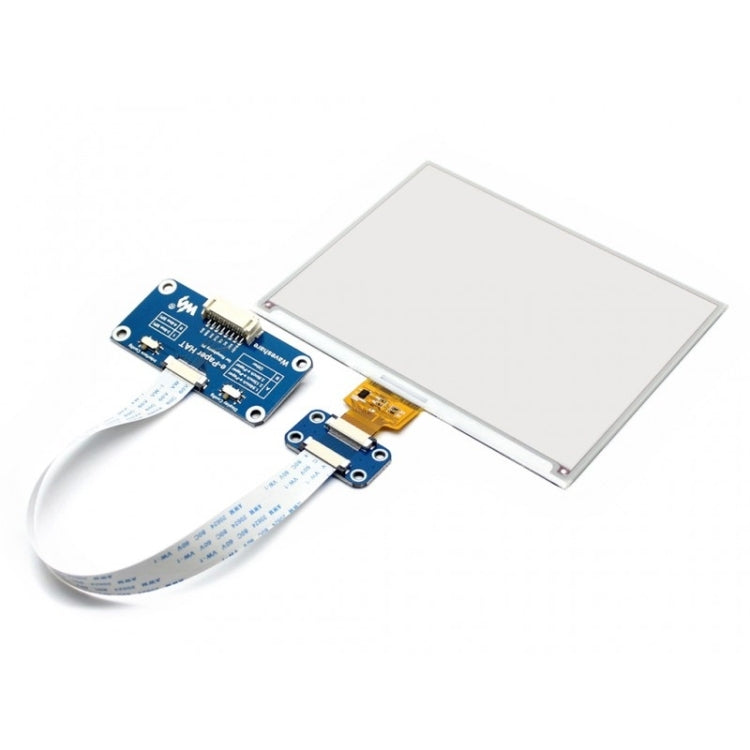

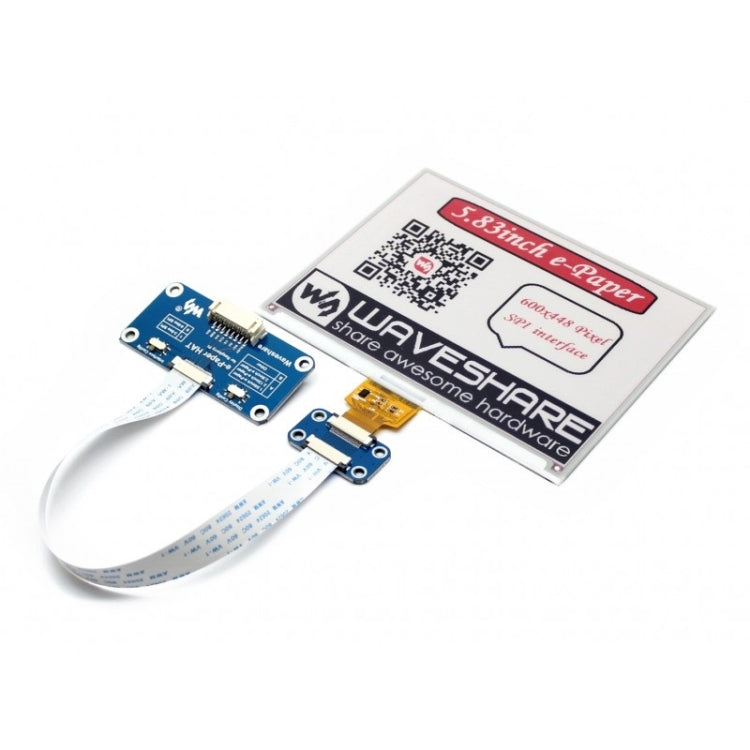

The Waveshare 5.83 inch E-Ink Display HAT is designed for use with Raspberry Pi and Jetson Nano. It is suitable for applications such as industrial instruments and shelf labels due to its ultra-low power consumption and long-lasting display capabilities.
- Product Type: E-Ink Display HAT
- Compatibility: Raspberry Pi Zero, Zero W, Zero WH, 2B, 3B, 3B+, Jetson Nano
- Material: Electronic components
- Display Size: 5.83 inches
- Resolution: 600 x 448 pixels
- Display Colors: Red, black, white
- Grey Level: 29
- Operating Voltage: 3.3V to 5V
- Interface: SPI
- Outline Dimensions: 125.40 mm x 99.50 mm
- Dot Pitch: 0.198 mm x 0.197 mm
- Full Refresh Time: 14 seconds
- Refresh Power: 26.4 mW (typical)
- Standby Power: <0.017 mW
- Viewing Angle: >170 degrees
- Package Contents: 1 x 5.83 inch e-Paper (B), 1 x e-Paper Driver HAT, 2 x RPi screws pack, 1 x PH2.0 20cm 8Pin
