Product details
Description

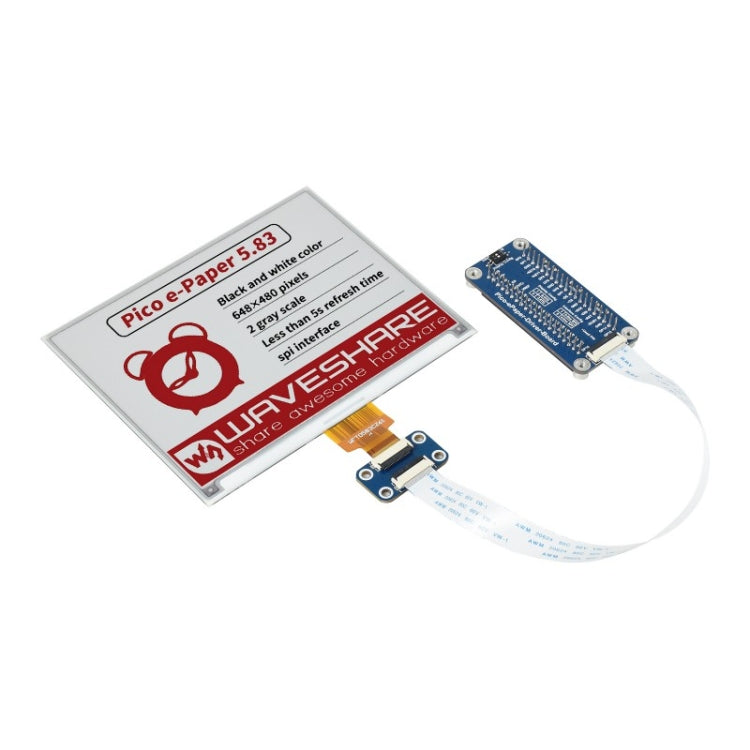

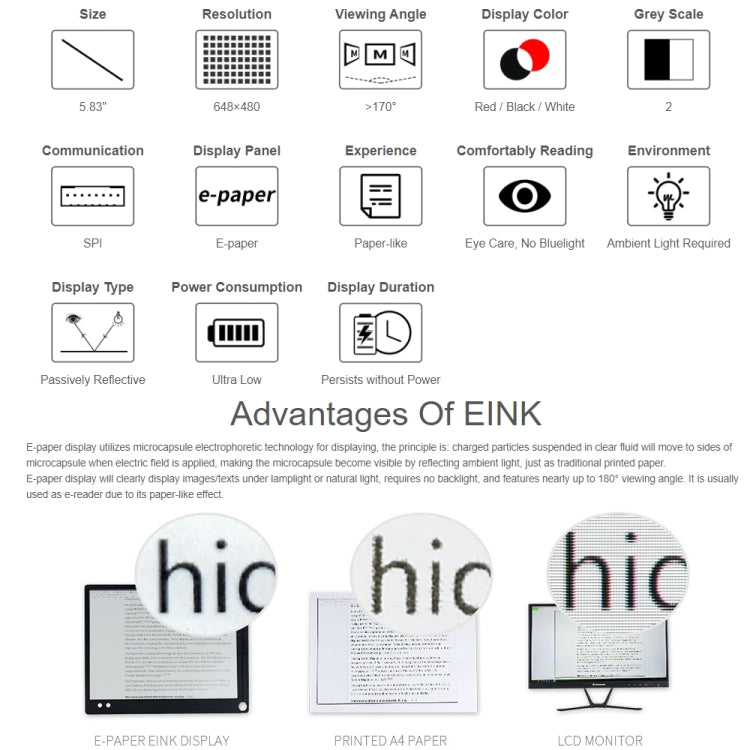

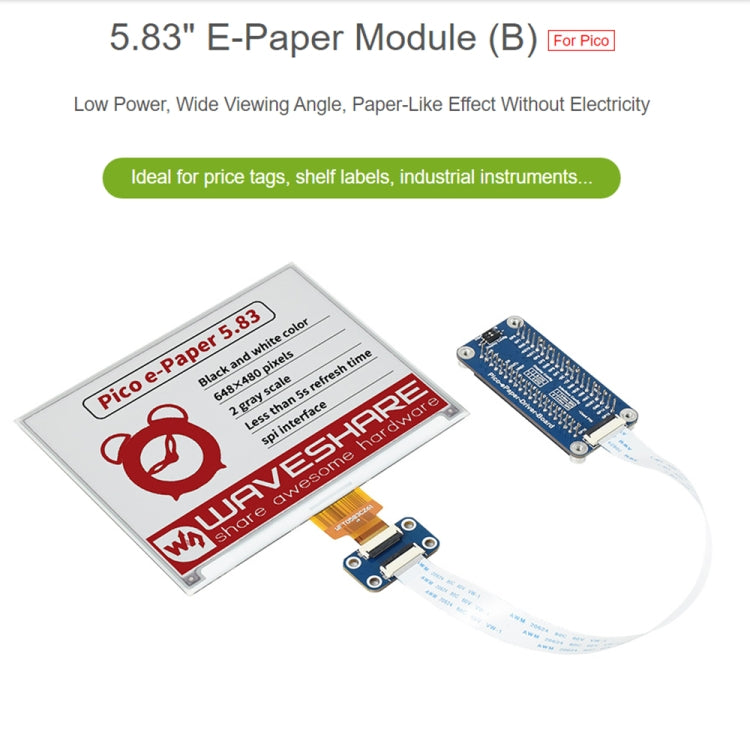

The Waveshare 5.83 inch E-Paper Display Module is designed for use with the Raspberry Pi Pico. It is suitable for applications requiring low power consumption and long-lasting display capabilities.
- Product Type: E-Paper Display Module

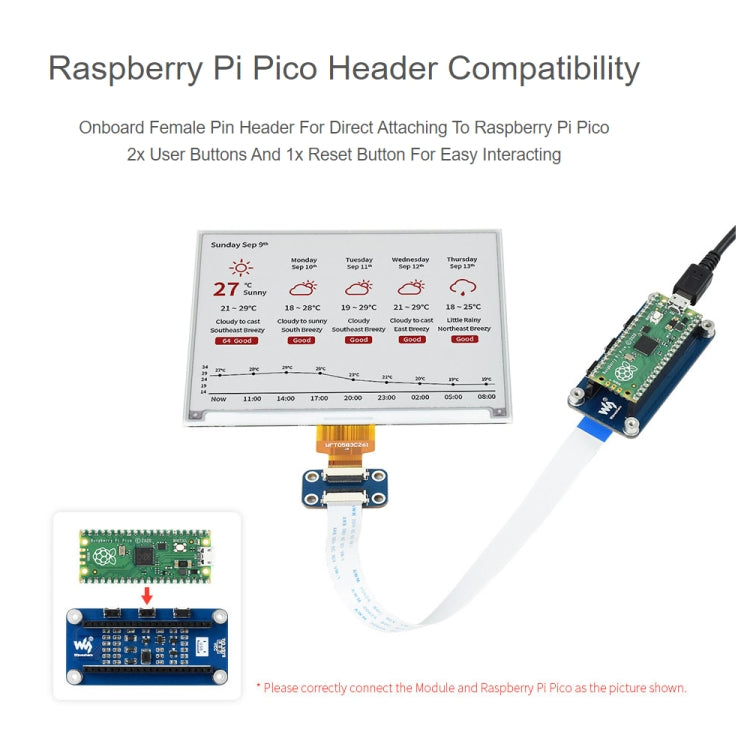

- Compatibility: Raspberry Pi Pico
- Material: E-ink
- Color: Red, black, white
- Operating Voltage: 3.3V
- Resolution: 648 x 480 pixels

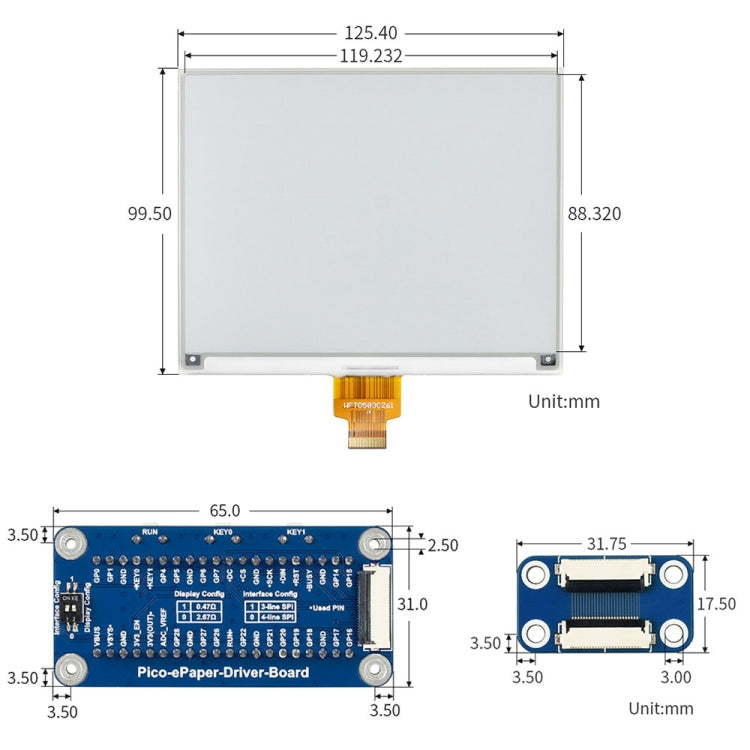

- Display Size: 119.232 x 88.320 mm
- Dimensions: 125.4 x 99.5 mm
- Viewing Angle: Greater than 170 degrees
- Refresh Power: 26.4 mW (typical)
- Standby Current: Less than 0.01 µA
- Dot Pitch: 0.184 x 0.184 mm

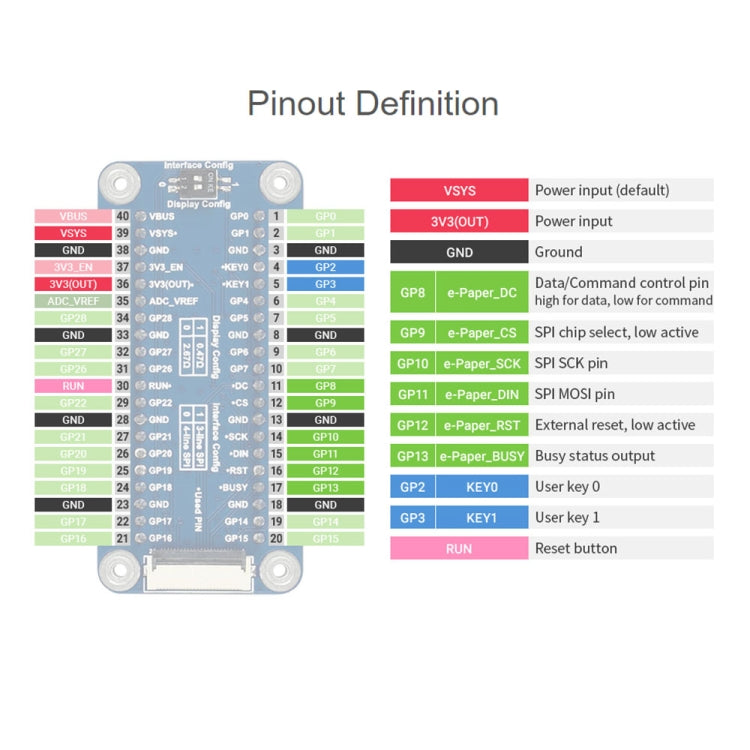

- Interface: 3-wire SPI, 4-wire SPI
- Full Refresh Time: 5 seconds
- Key Feature: Ultra low power consumption

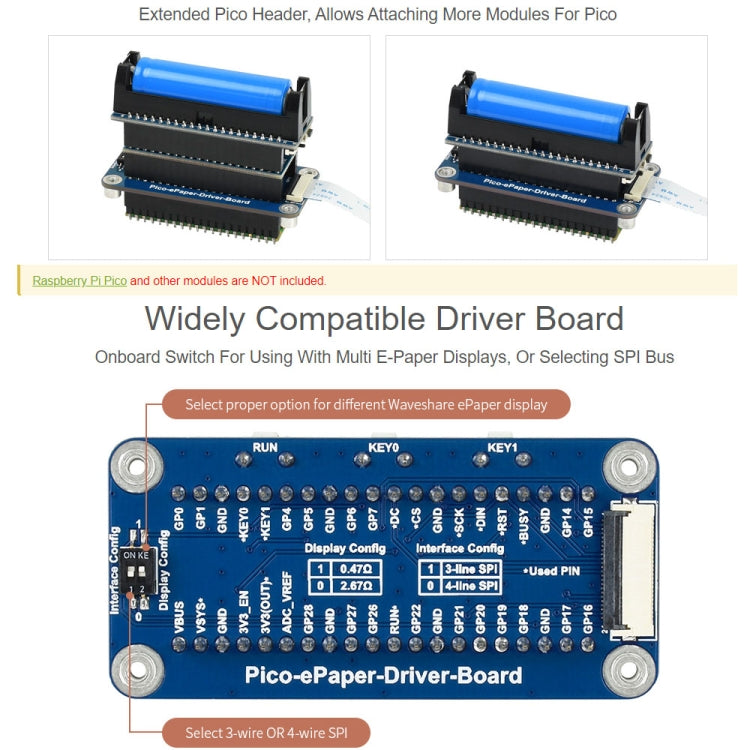

- Includes: 2 user buttons, 1 reset button
- Package Contents: 1 x 5.83 inch E-Paper, 1 x Pico-ePaper-Driver-Board, 1 x Standoff pack
