Product details
Description

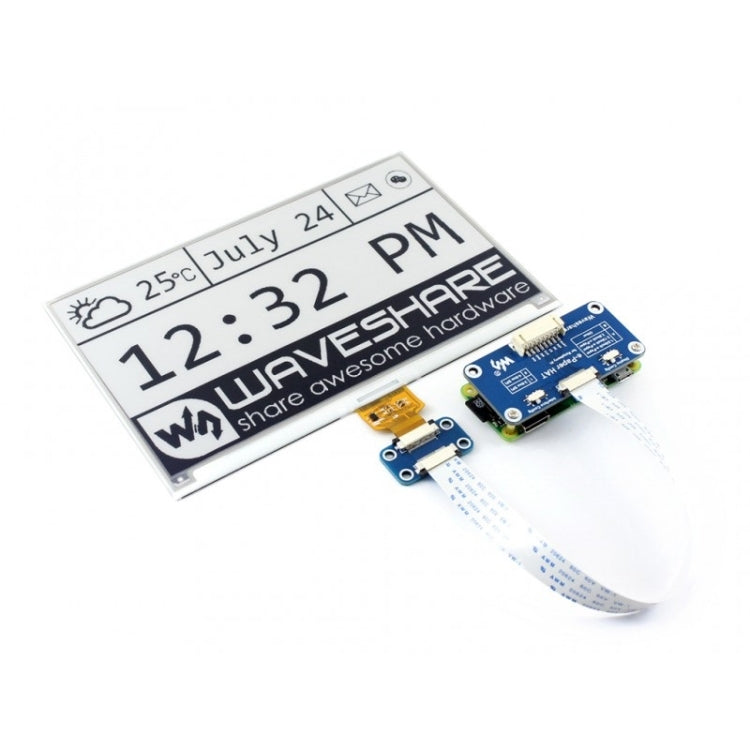

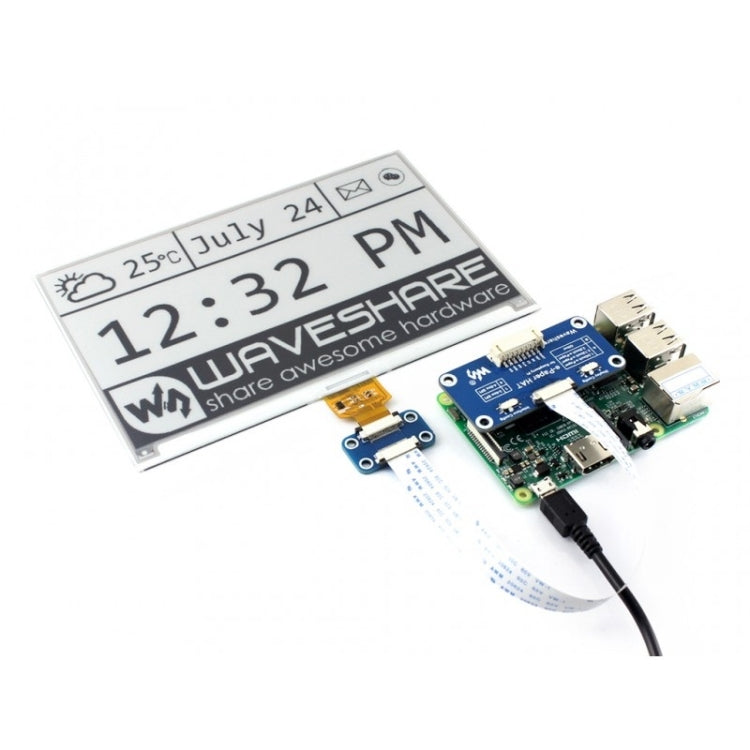

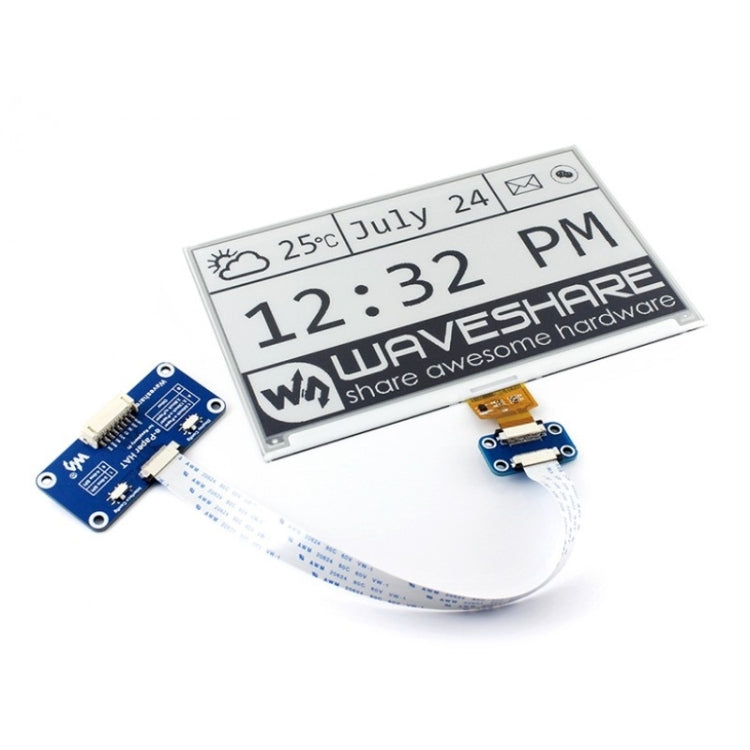

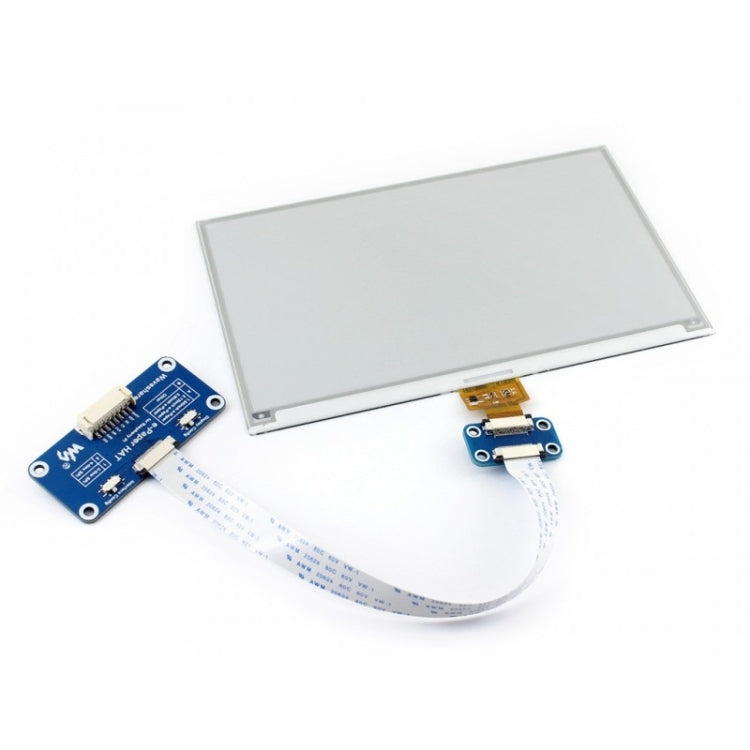

The Waveshare 7.5 inch 800x400 Pixel E-Ink Display HAT is a display module designed for Raspberry Pi. It is suitable for applications such as shelf labeling and industrial instruments due to its ultra-low power consumption and long-lasting display capabilities.
- Product Type: E-Ink Display HAT
- Compatibility: Raspberry Pi Zero, Zero W, Zero WH, 2B, 3B, 3B+, Jetson Nano
- Material: Electronic components
- Display Size: 7.5 inches
- Resolution: 800 x 400 pixels
- Display Color: Black and White
- Grey Level: 2
- Viewing Angle: >170 degrees
- Operating Voltage: 3.3V to 5V
- Interface: SPI
- Outline Dimension: 170.2 mm x 111.2 mm
- Dot Pitch: 0.255 mm x 0.255 mm
- Full Refresh Time: 6 seconds
- Refresh Power: 38 mW (typical)
- Standby Power: <0.017 mW
- Onboard Voltage Translator: Compatible with 3.3V/5V MCUs
- Package Contents: 7.5 inch e-Paper x1, e-Paper Driver HAT x1, RPi screws pack (2 pcs) x1, PH2.0 20cm 8Pin x1
