WAVESHARE 7 inch 800 x 480 Capacitive Touch Display with Front Camera for Raspberry Pi
WAVESHARE 7 inch 800 x 480 Capacitive Touch Display with Front Camera for Raspberry Pi
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

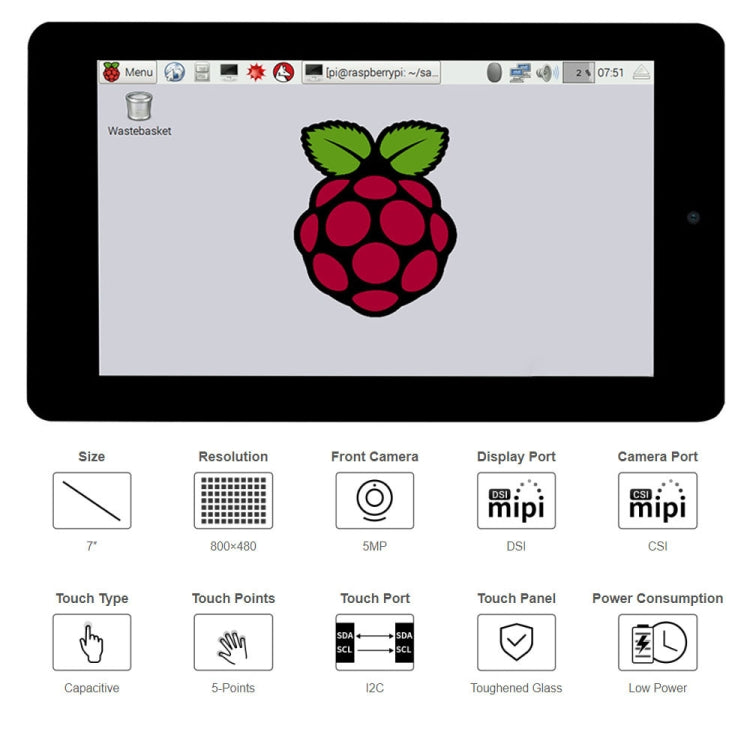

The WAVESHARE 7 inch 800 x 480 Capacitive Touch Display is an LCD display module designed for use with Raspberry Pi. It features a capacitive touch interface and a front camera, making it suitable for everyday applications such as video conferencing or interactive projects.
- Product Type: LCD & LED Display Module
- Compatibility: Raspberry Pi
- Display Resolution: 800 x 480

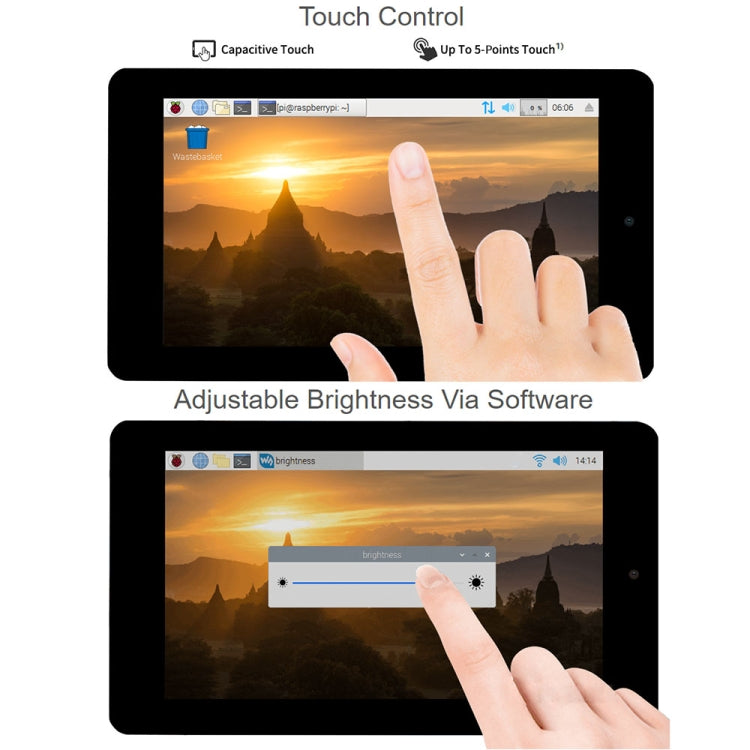

- Touch Technology: Capacitive touch display

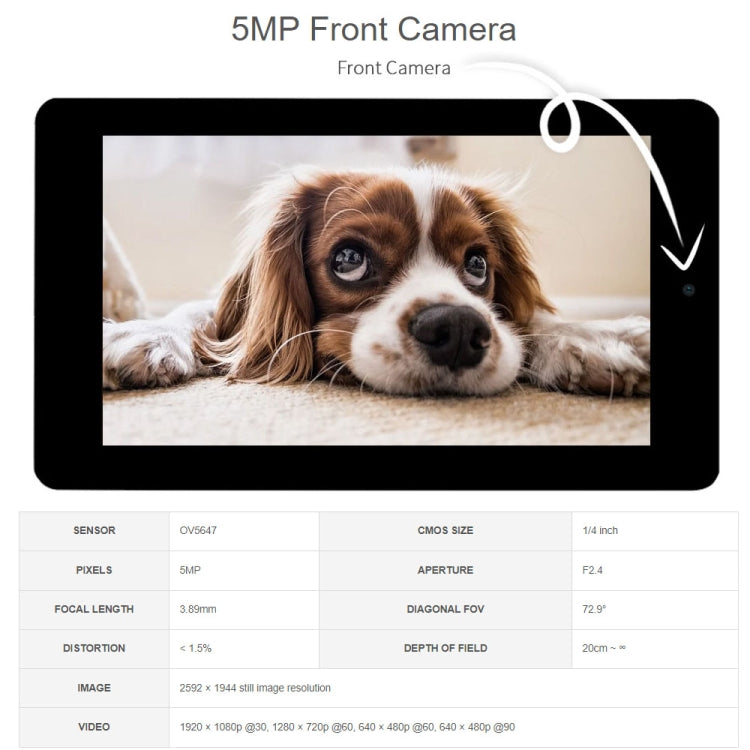

- Camera Sensor: OV5647
- CMOS Size: 1/4 inch
- Camera Pixels: 5MP
- Aperture: F2.4
- Focal Length: 3.89mm
- Diagonal Field of View: 72.9 degrees
- Distortion: Less than 1.5%
- Depth of Field: 20cm above
- Still Image Resolution: 2592 x 1944
- Video Resolutions: 1920 x 1080p at 30fps, 1280 x 720p at 60fps, 640 x 480p at 60fps, 640 x 480p at 90fps

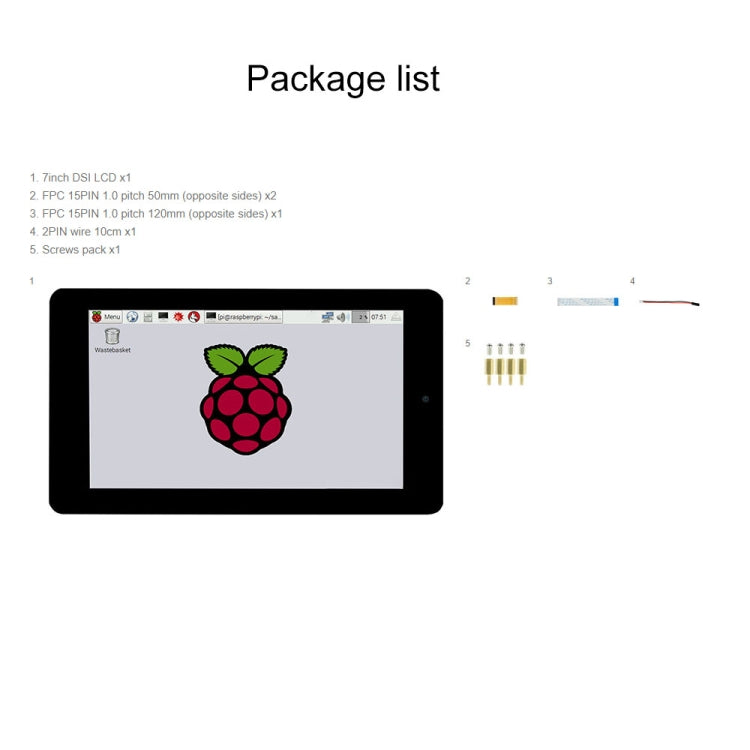

- Package Contents: 7 inch DSI LCD x 1, FPC 15 PIN 1.0 pitch 50mm (opposite sides) x 2, FPC 15 PIN 1.0 pitch 120mm (opposite sides) x 1, 2 PIN wire 10cm x 1, screws pack x 1
Questions about features, compatibility, or warranty? Chat with our local support team!
