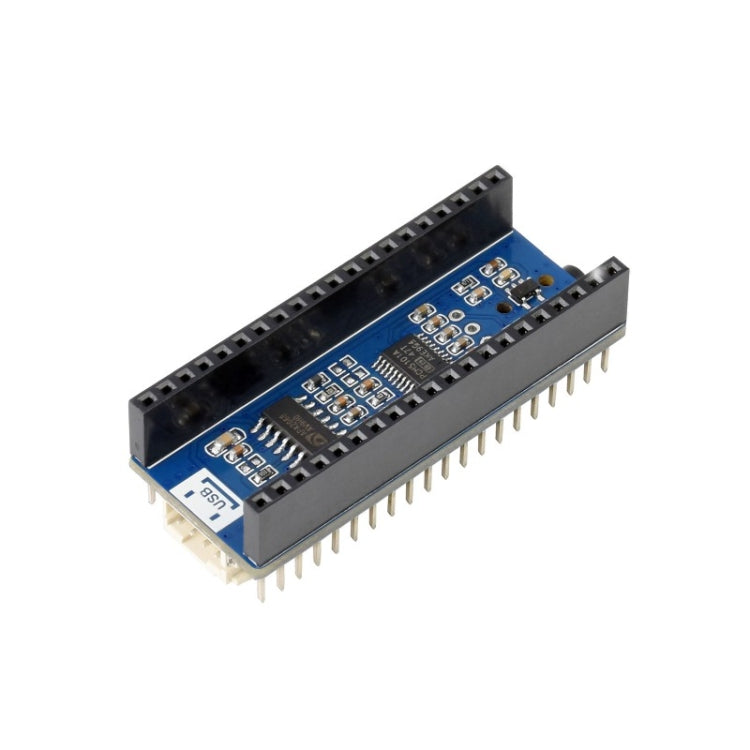

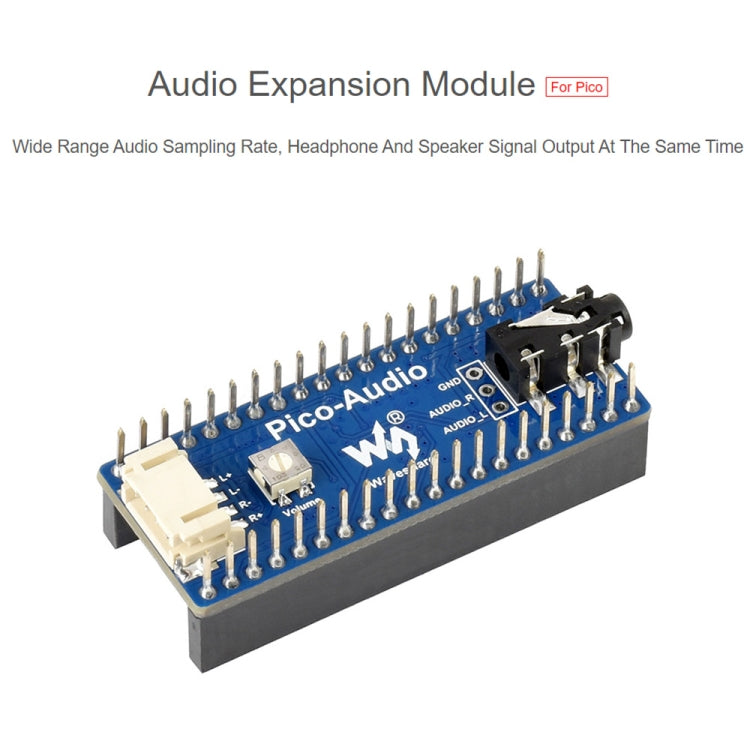

The Waveshare Audio Expansion Module is an audio expansion module designed for Raspberry Pi Pico. It allows simultaneous headphone and speaker output, making it suitable for various audio applications.
- Product Type: Audio Expansion Module

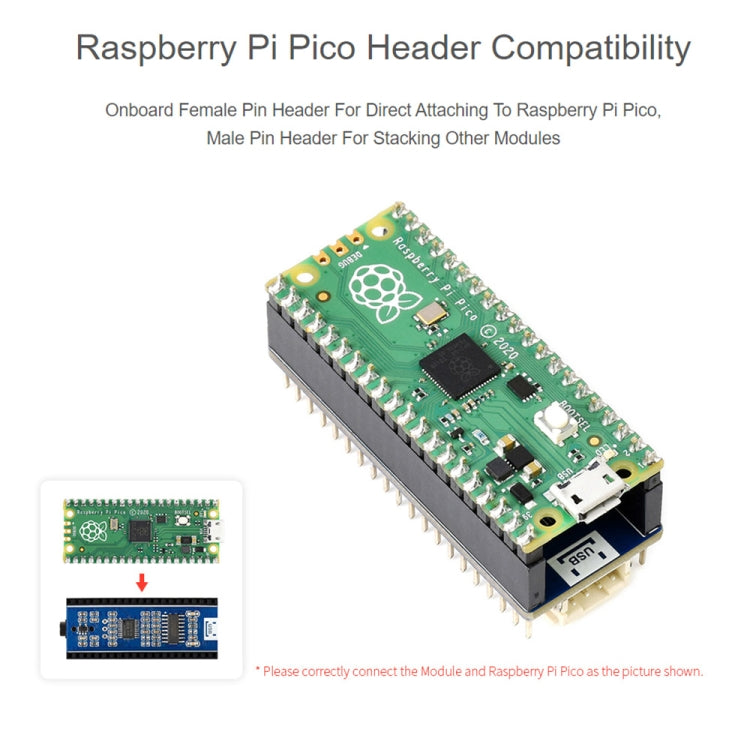

- Compatibility: Raspberry Pi Pico
- Material: PCM5101A
- Operating Voltage: 5V
- Logic Level: 3.3V

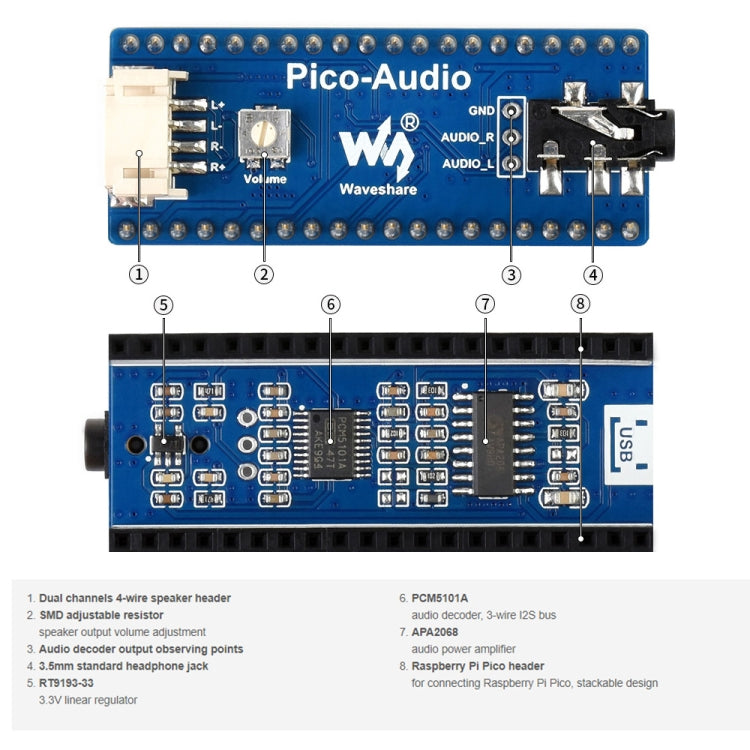

- Audio Decoder: PCM5101A

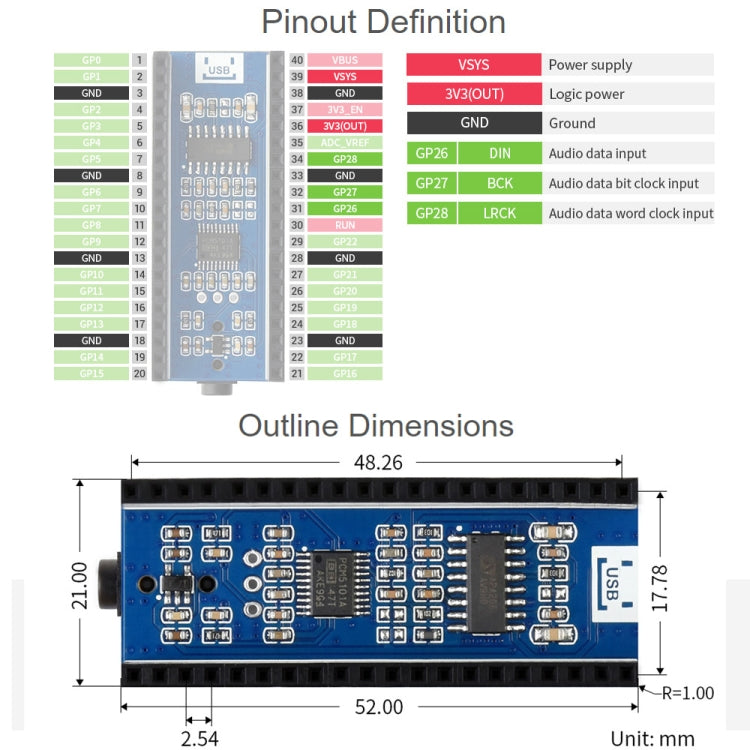

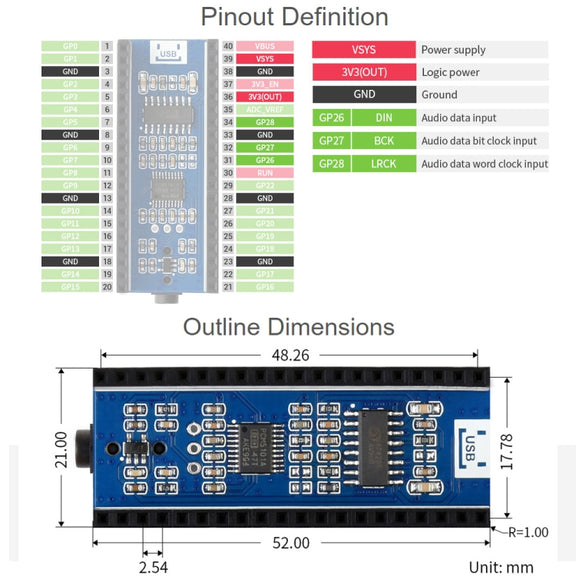

- Audio Bus: I2S
- Audio Sampling Rate: 8~384000Hz
- DAC SNR: 106 dB
- Speaker Driving: 2.6W/channel (4 ohms BTL)
- Standard 3.5mm Audio Jack for headphone connection

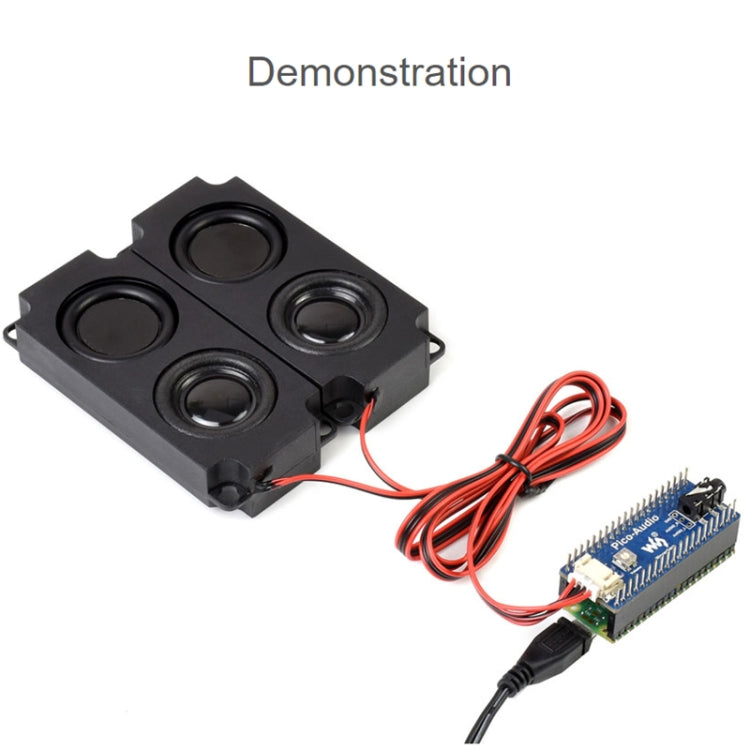

- Dual Channels Speaker Headers for direct speaker connection
- 3-wire I2S for reduced EMI
- Includes development resources and manual (Raspberry Pi Pico audio play code, sound card code)

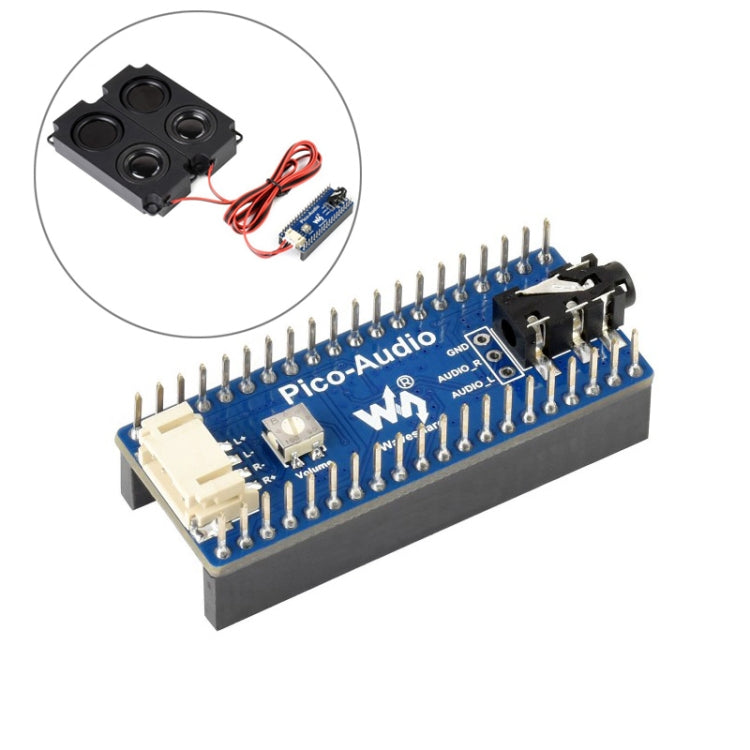

- Package List: Pico-Audio x1, 8 ohms 5W speaker x1
