Product details
Description

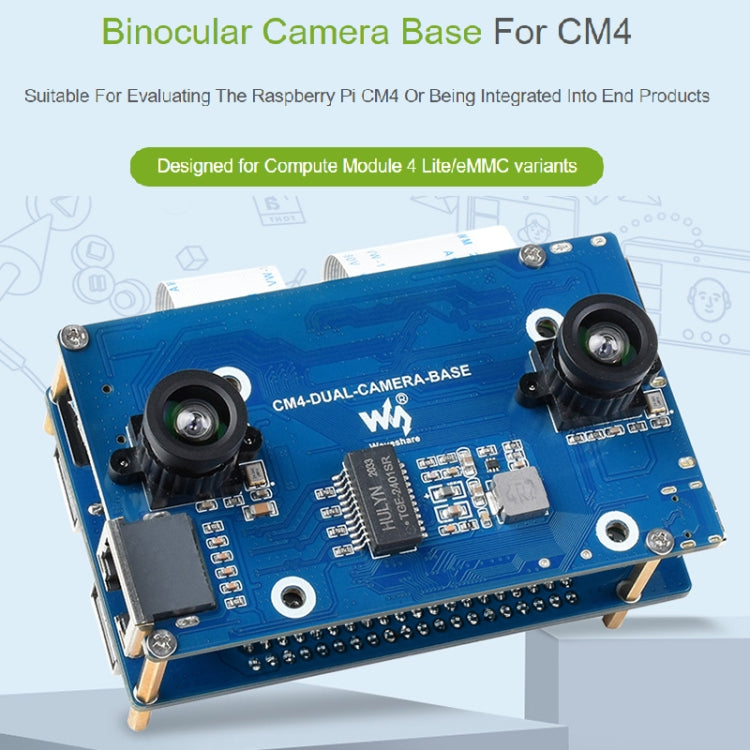

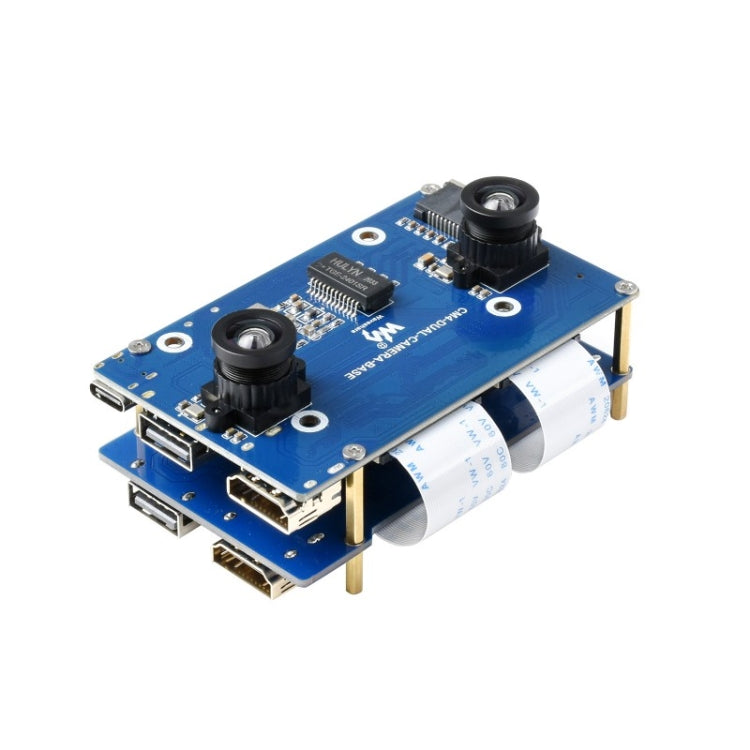

The Waveshare Binocular Camera Base Board is a module designed for the Raspberry Pi Compute Module 4. It enables high-resolution imaging and video output for various applications.
- Product Type: Modules Expansions Accessories
- Compatibility: Raspberry Pi Compute Module 4
- Material: Not specified
- Key Feature: Dual-lens camera with HDMI output
- Intended Use: Everyday use
- Category: Electronics Module Camera Base Board

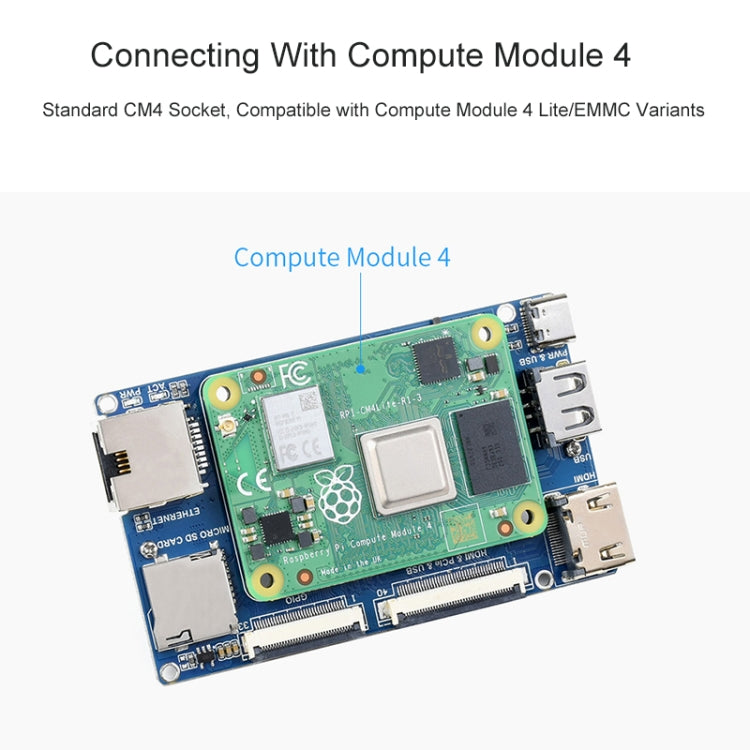

- CM4 Socket: Suitable for all variants of Compute Module 4
- Networking: Gigabit Ethernet RJ45
- USB Ports: USB 2.0 x 1

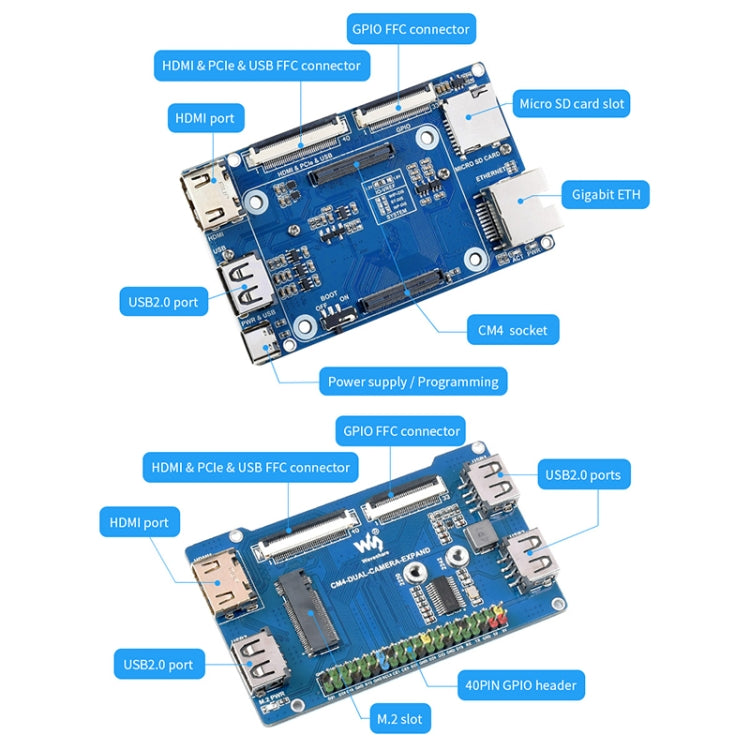

- FFC Connectors:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
- Dual-lens Camera Specifications:
- Pixels: 8MP
- Sensor: IMX 219
- Resolution: 3280 x 2464 (per channel)
- CMOS Size: 1/4 inch
- Aperture: F2.4
- Focal Length: 2.6mm
- Field of View: 83/73/50 degrees (diagonal/horizontal/vertical)
- Distortion: Less than 1%
- Baseline Length: 60mm
- Video Output: HDMI-compatible x 1, supports 4K 30fps output
- Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- Power Input: 5V/2.5A

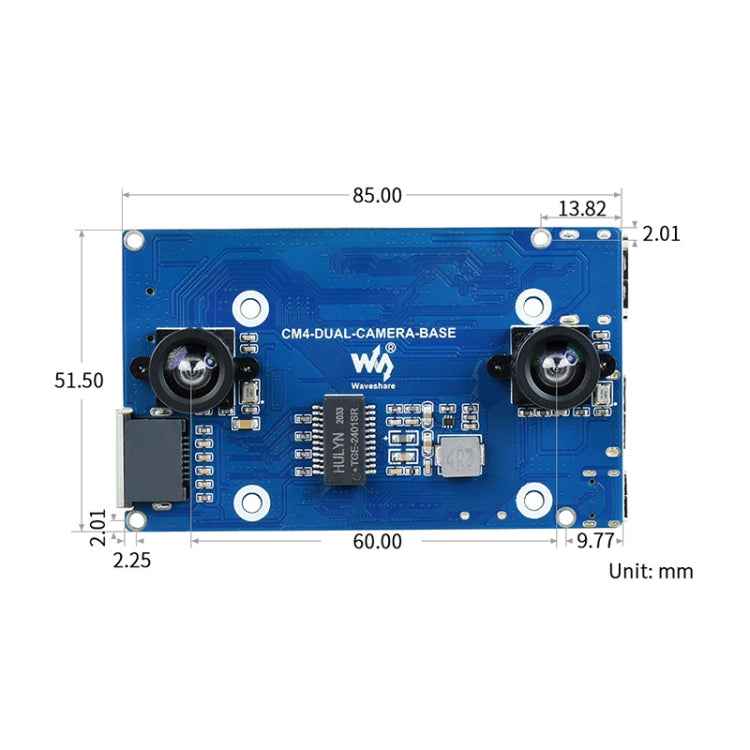

- Dimensions: 85.0 x 51.5mm
- Interface Expander Specifications:
- USB Ports: USB 2.0 x 3
- FFC Connectors:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
- Other Connectors:
- M.2 M KEY x 1, for connecting NVME SSD or communication module
- Raspberry Pi 40PIN GPIO header x 1
- Video Output: HDMI-compatible x 1, supports 4K 30fps output
- Dimensions: 85.0 x 51.5mm
- Package List:
- Dual camera base x1
- Screws pack x1
- Interface expander x1
- FFC 2PCS x1
