Product details
Description

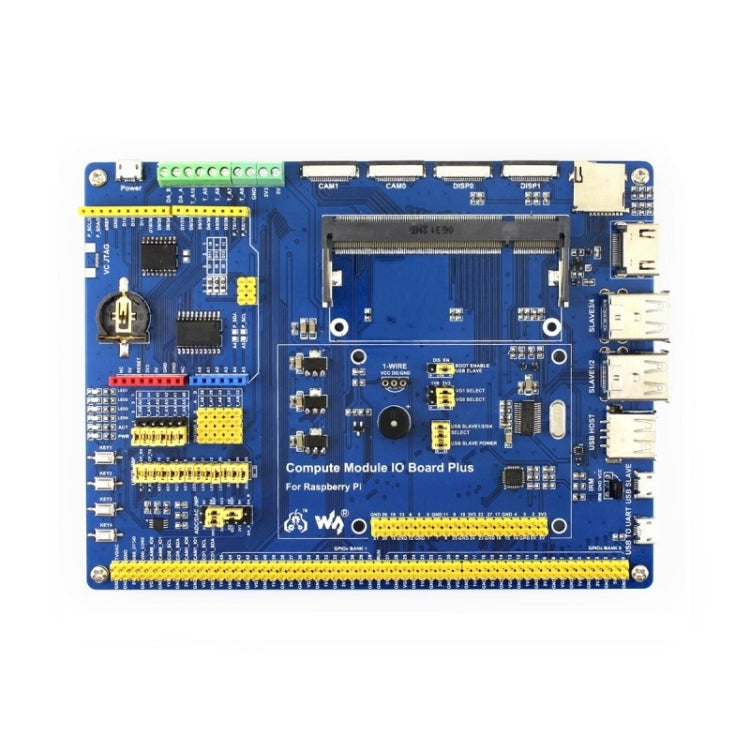

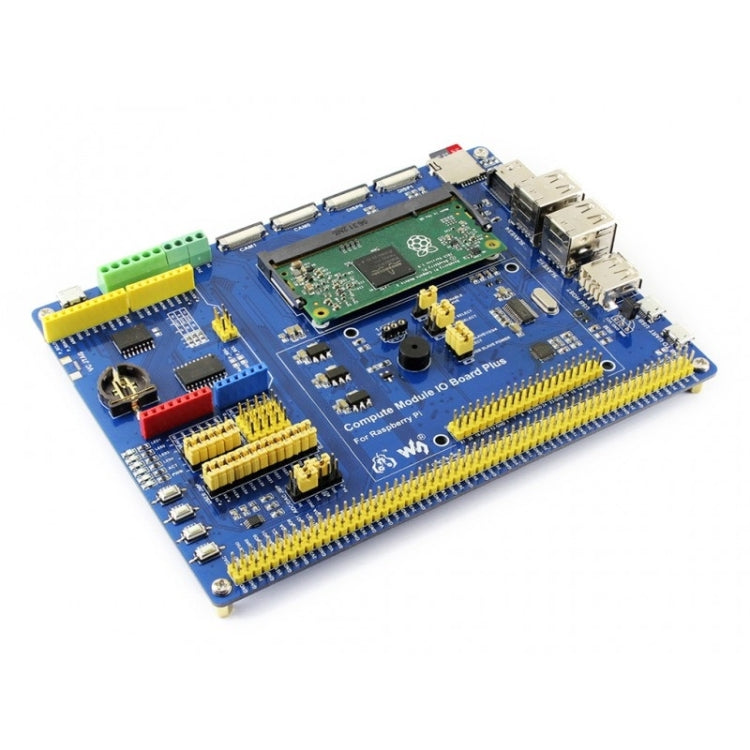

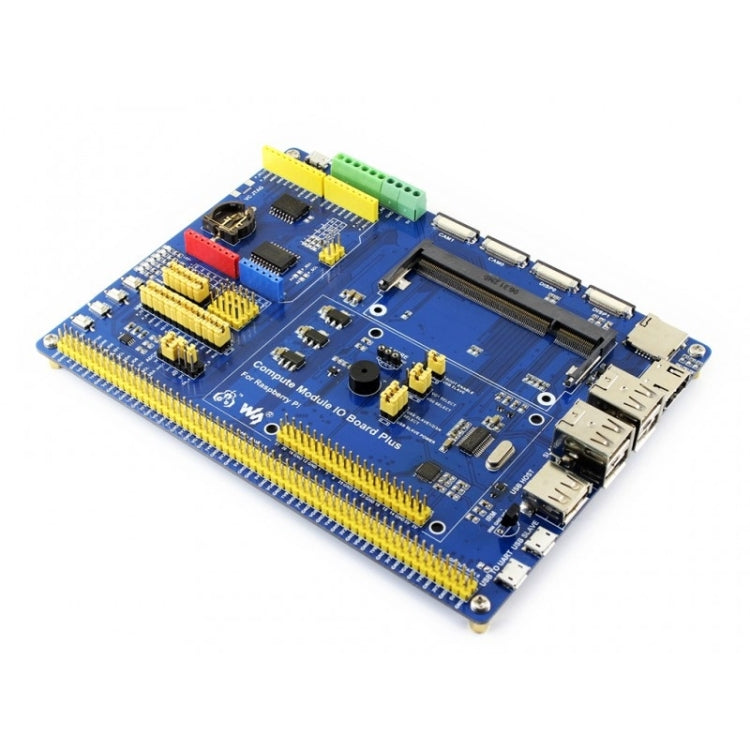

The Compute Module IO Board Plus is a development board designed for Raspberry Pi Compute Modules. It allows for flexible use of Raspberry Pi resources in various applications.
- Product Type: Development Board
- Compatibility: Raspberry Pi CM3 / CM3L / CM3+ / CM3+L
- Key Feature: Flexible use of Raspberry Pi resources
- Intended Use: Everyday use

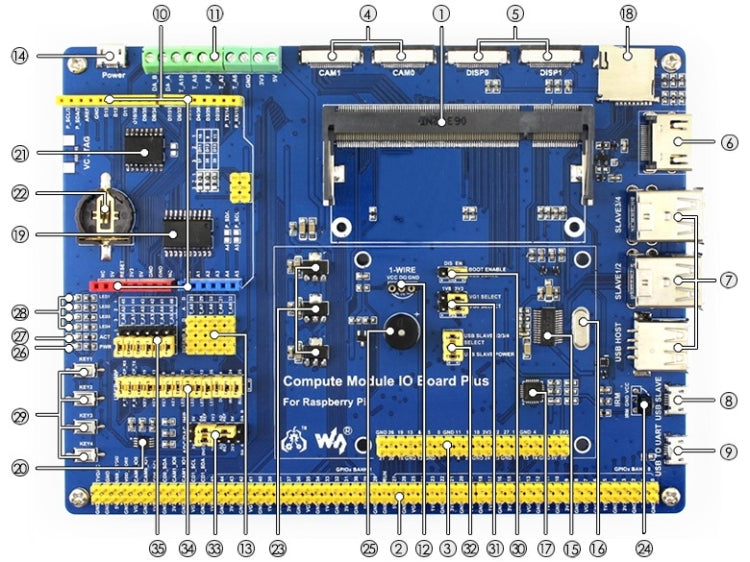

- Compute Module Interface: Connects to Compute Module (CM3 / CM3L / CM3+ / CM3+L)
- Compute Module GPIO Header: Breaks out all Compute Module pins
- Raspberry Pi GPIO Header: Connects Raspberry Pi HATs
- CSI Interface: Camera ports for Raspberry Pi Camera
- DSI Interface: Display ports for Raspberry Pi LCD
- HDMI Port: Standard HDMI output
- USB Ports: Connects USB devices
- USB Slave Interface: Allows system image burning to Compute Module
- USB to UART Interface: For serial debugging
- Arduino Header: Connects Arduino shields
- AD/DA Input/Output Screw Terminals: For analog/digital connections
- 1-WIRE Interface: Connects single-bus devices like DS18B20
- Sensor Interface: For connecting various sensors
- Power Port: 5V 2.5A
- Onboard USB HUB: Connects multiple USB devices
- IR Receiver: Supports IR remote control
- Onboard RTC: Real-time clock functionality
- 10-bit ADC: 38KSPS, 11 channels (6 for Arduino interface, 5 for sensors)
- 16-bit DAC: 2 channels
- Micro SD Card Slot: For system startup
- RTC Battery Holder: Supports CR1220 batteries
- Voltage Regulator: 3.3V / 2.5V / 1.8V
- Power Indicator: Indicates power status
- ACT Indicator: Indicates Micro SD card status
- User LEDs: For user-defined indications
- User Keys: For user-defined inputs
- BOOT Selection: Configures boot options
- VGx Power Selection: Configures I/O level
- USB HUB Enable Jumper: Configures HUB and USB Slave power
- ADC/DAC Configuration: Configures power supply and reference voltage
- Peripheral Configuration: Configures control pins for various interfaces
- Arduino AD Selection: Configures Arduino A0-A5 as digital control or AD input
