Product details
Description

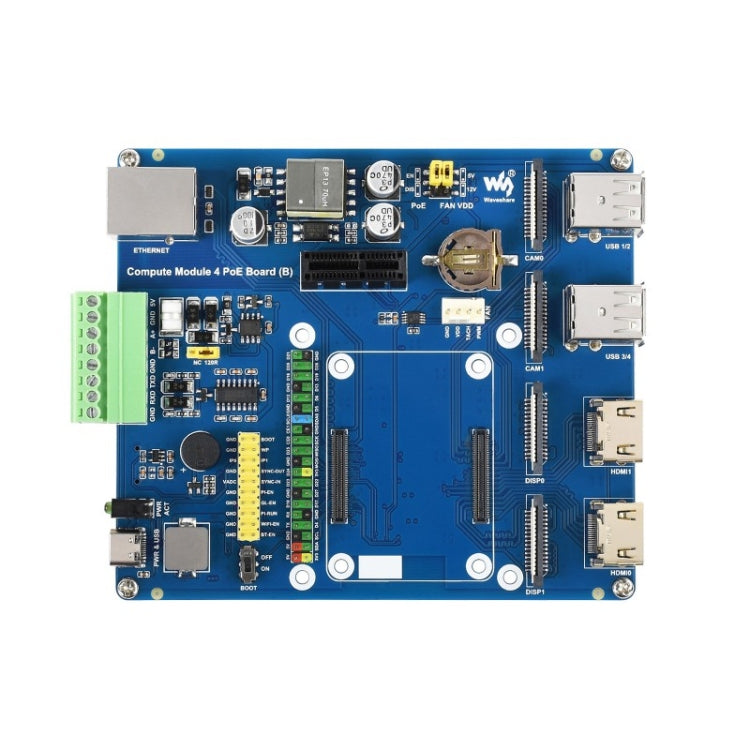

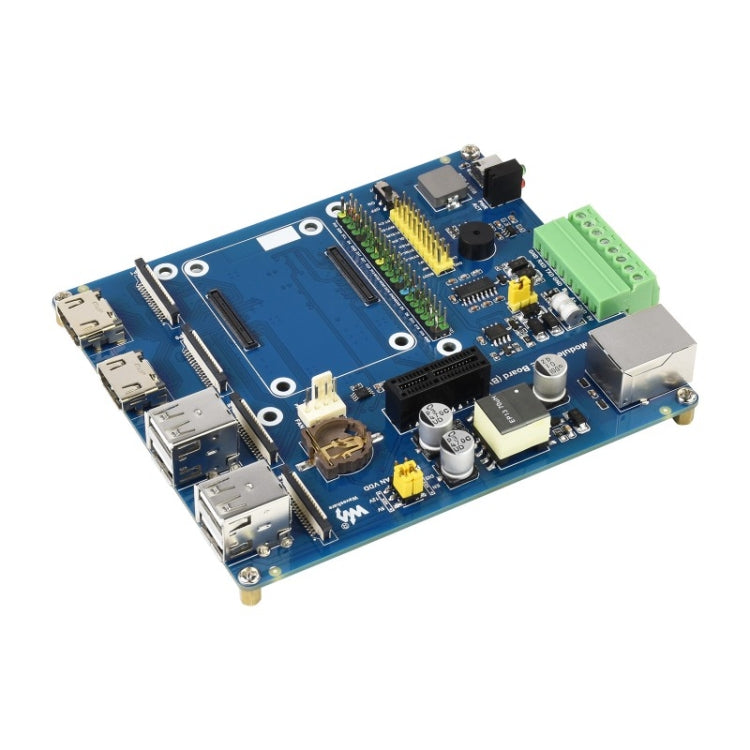

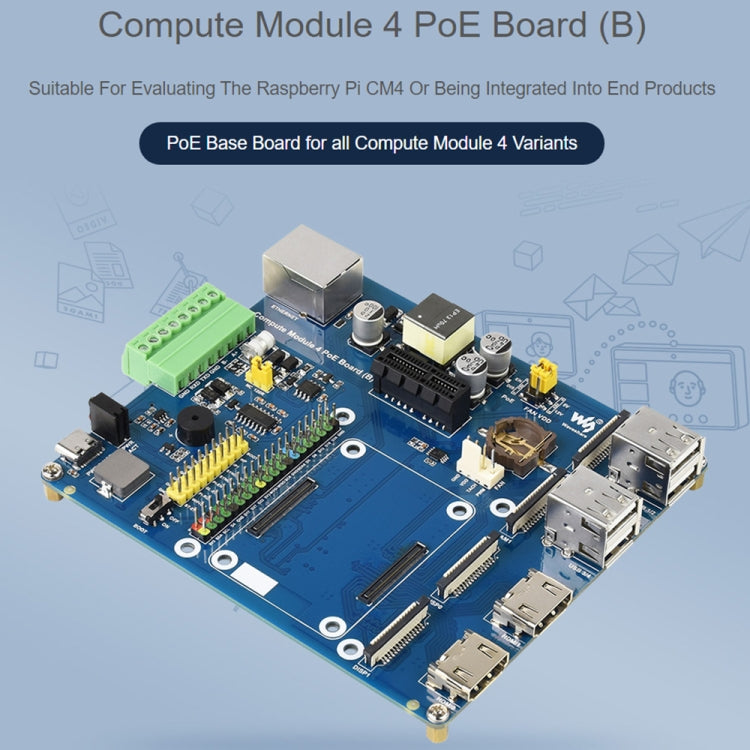

The Waveshare Compute Module IO Board with PoE Feature (Type B) is an interface board designed for Raspberry Pi Compute Module 4 variants. It provides connectivity options and power over Ethernet for various applications.

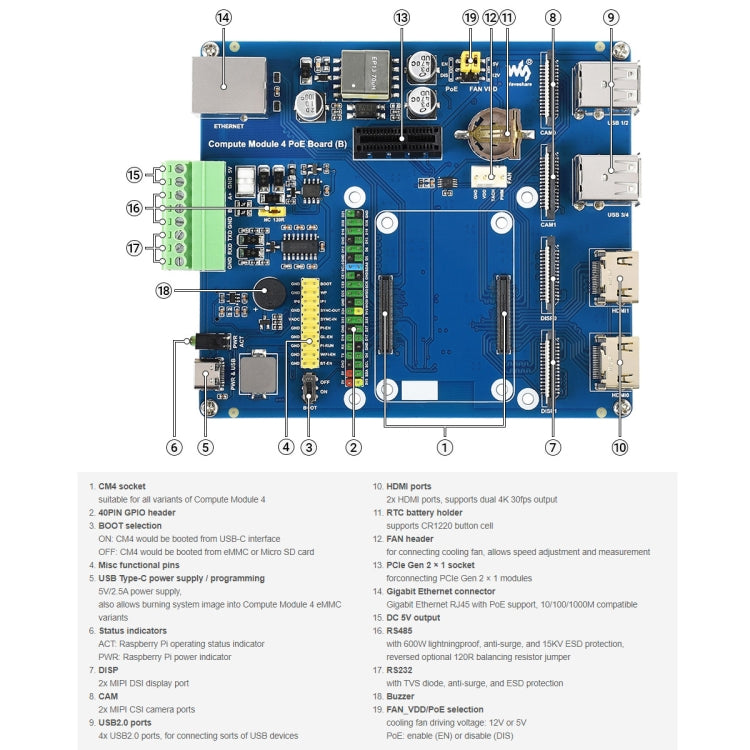

- Product Type: Interface Board
- Compatibility: Raspberry Pi all Variants of CM4
- Power over Ethernet: Integrates 802.3af-compliant PoE circuit (5V/2.5A)

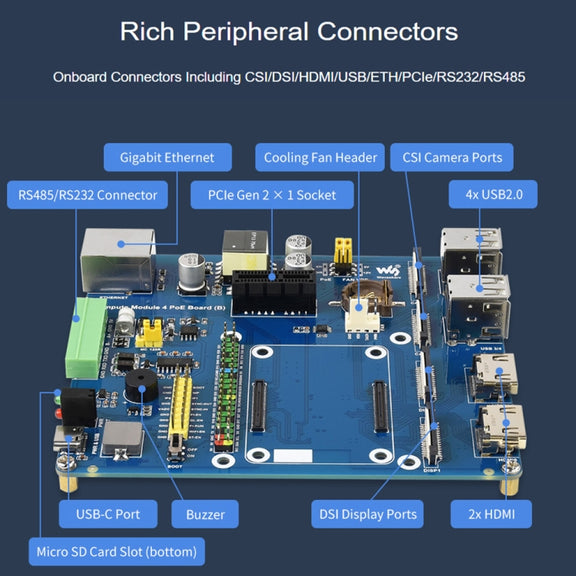

- USB Ports: 4 x USB 2.0
- GPIO: 1 x 40 PIN GPIO

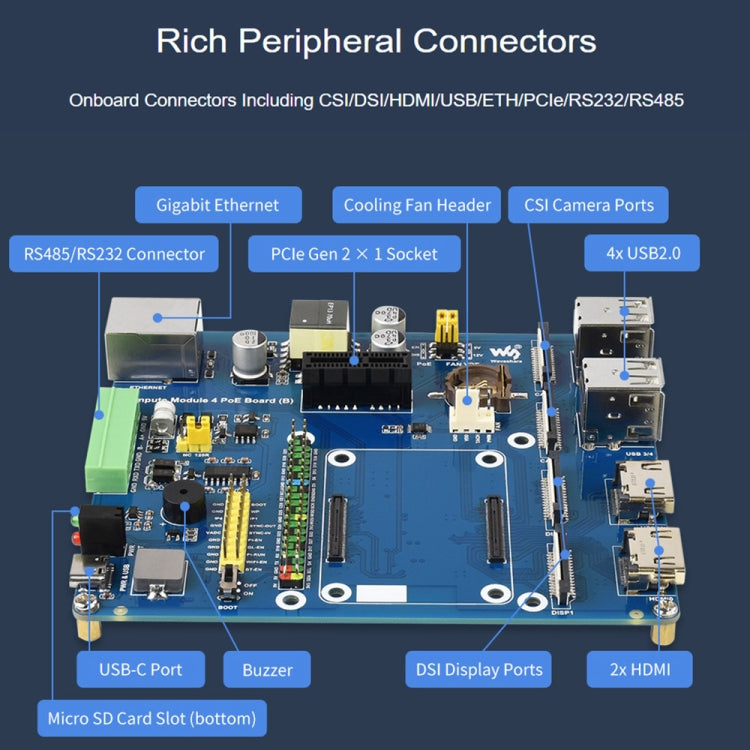

- Header Interfaces: 1 x RS485, 1 x RS232, 1 x PCIe Gen 2
- HDMI Outputs: 2 x HDMI, supports 4K 30fps output
- DSI Display: 2 x MIPI DSI (15pin 1.0mm FPC)
- CSI Camera: 2 x MIPI CSI-2 (15pin 1.0mm FPC)
- Power Input: 5V
- Fan Support: 5V / 12V with speed adjustment and measurement

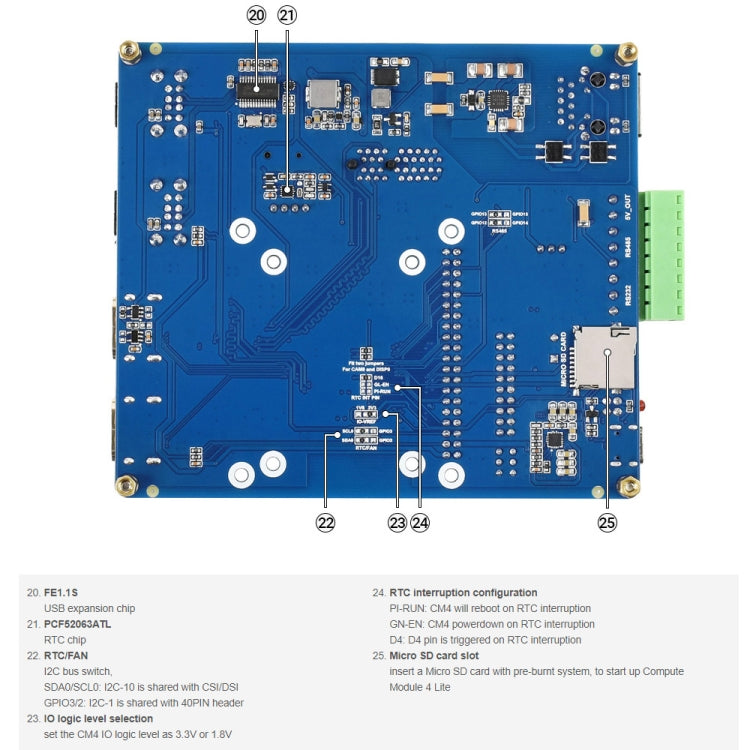

- Real-Time Clock: Includes battery socket and wake capability for Compute Module 4
- Ethernet: Gigabit Ethernet RJ45

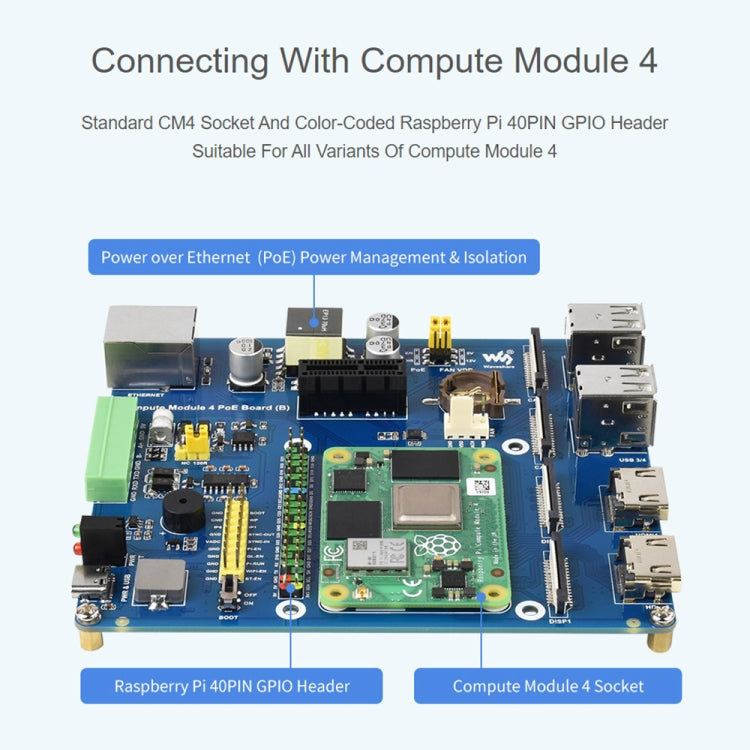

- CM4 Slot: Suitable for all variants of Compute Module 4
- SD Card Slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

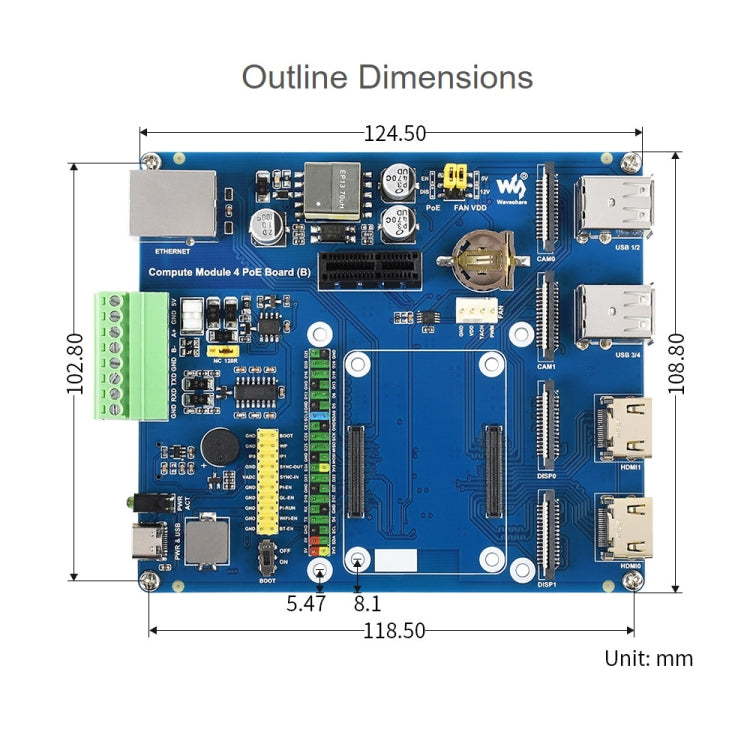

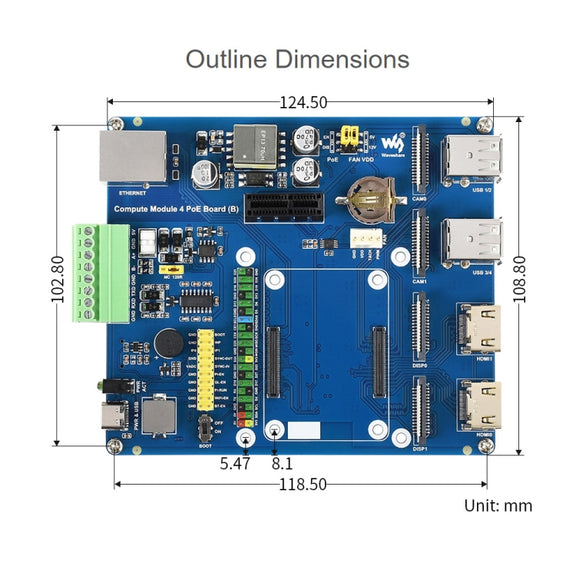

- Dimensions: 124.50 x 108.80 mm
