WAVESHARE ESP32-S3 1.54 Inch Ink Screen E-Paper AIoT Development Board, Spec: Without Li-ion Battery
WAVESHARE ESP32-S3 1.54 Inch Ink Screen E-Paper AIoT Development Board, Spec: Without Li-ion Battery
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description

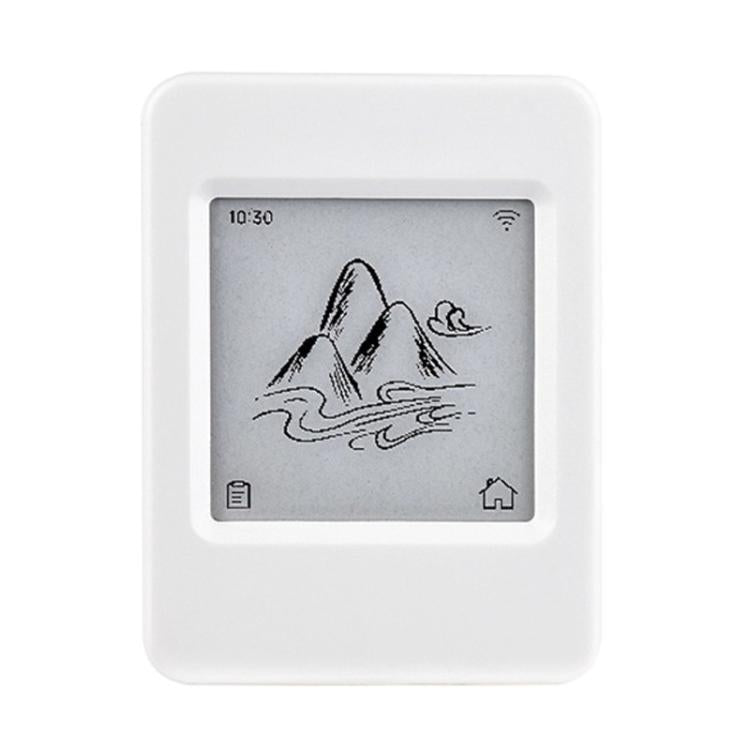

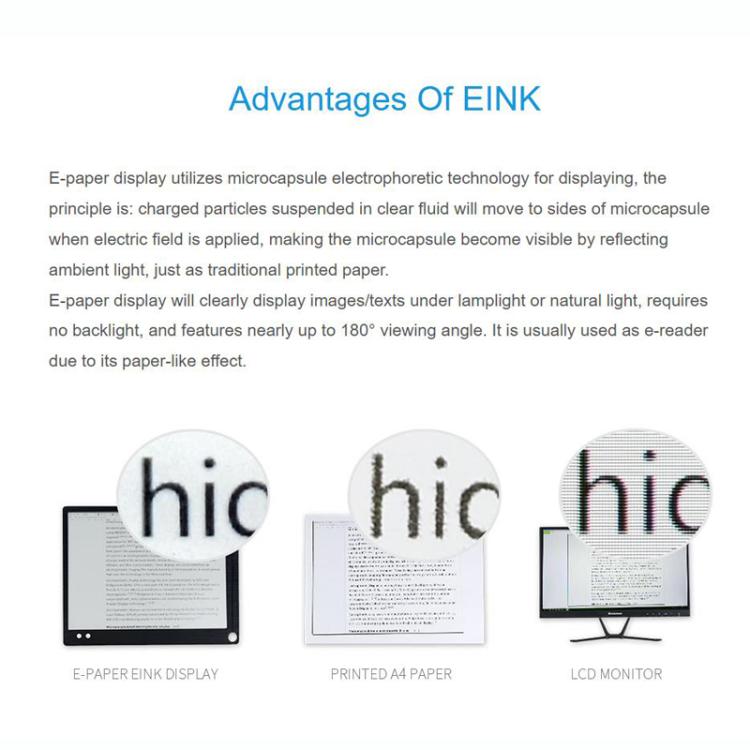

1. Display panel: 1.54-inch e-ink screen
2. Display resolution: 200 x 200
3. Communication interface: SPI
4. Display color: black, white
5. Viewing angle: more than 170 degrees
6. Gray level: 2
7. Global refresh: 2s
8. Local refresh: 0.3s
9. Display mode: reflective

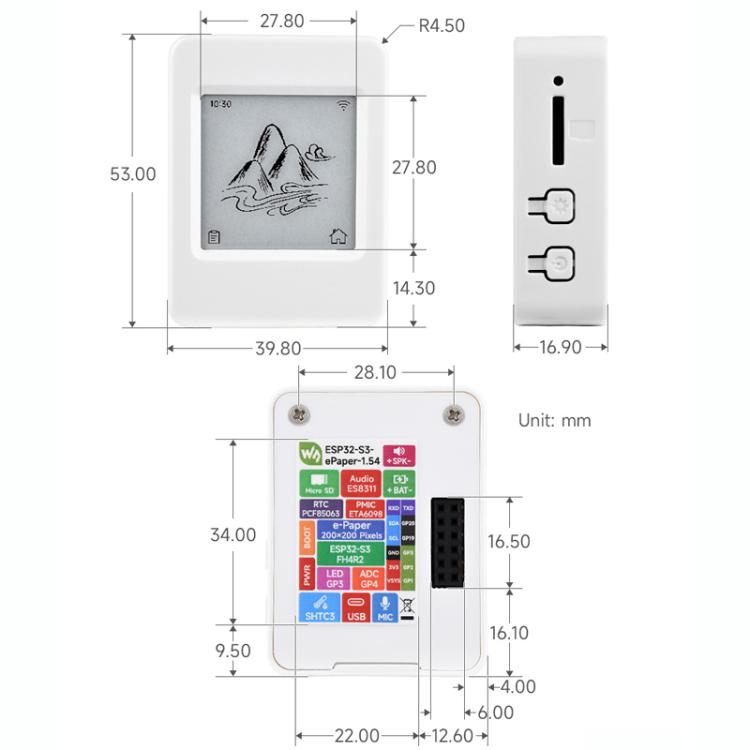

10. Size: about 5.3 x 3.98 x 1.69cm
Features:

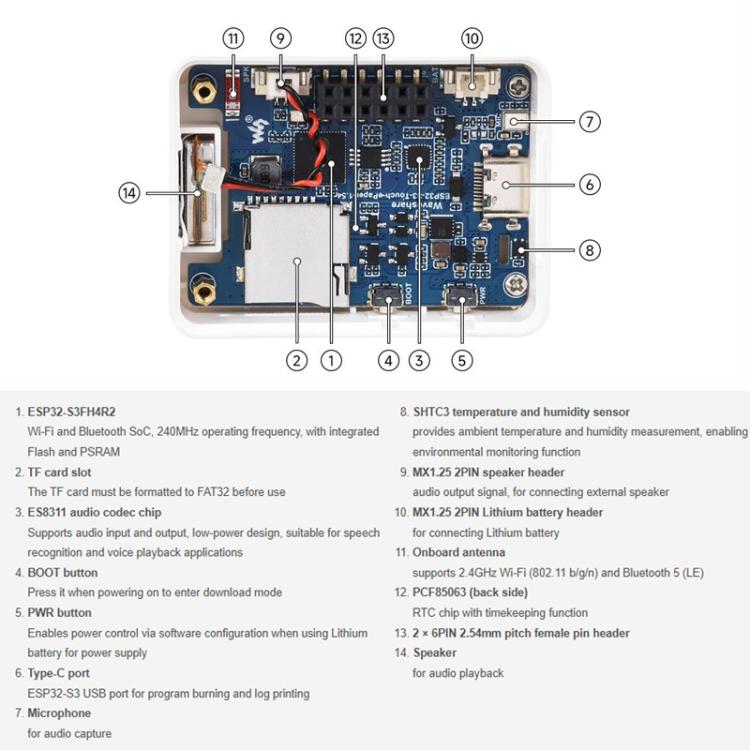

1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor up to 240MHz
2. 2.4GHz Wi-Fi and Bluetooth 5 (LE) support, on-board internal antenna
3. Built-in 512KB SRAM and 384KB ROM, integrated Flash and PSRAM in stacked package
4. 1.54-inch e-ink screen with 200 x 200 resolution, high contrast ratio and wide viewing angle

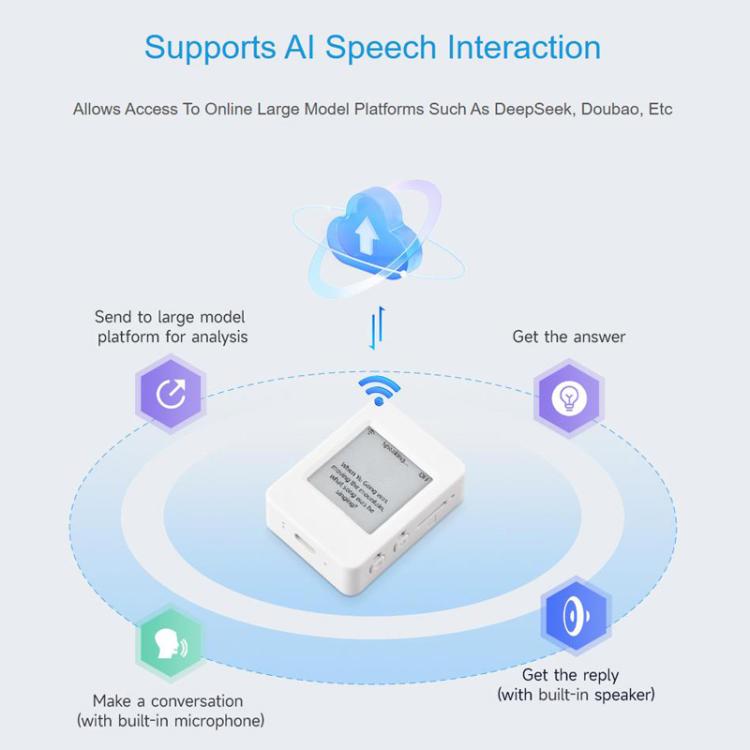

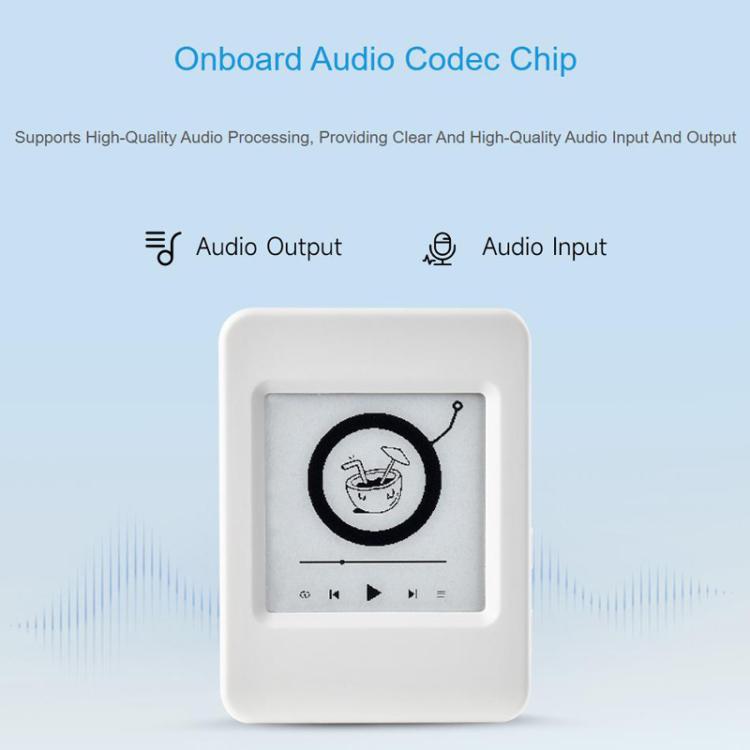

5. Onboard audio codec chip, support voice capture and playback, easy to realize AI voice interaction applications
6. Onboard PCF85063 RTC real-time clock and SHTC3 temperature and humidity sensor, can realize accurate RTC time management and temperature and humidity monitoring
7. Micro SD card slot on board, can be connected to external Micro SD card to store pictures or files
8. Onboard PWR, BOOT two customizable function side buttons, convenient to use the buttons for custom function development
9. Reserve 2 x 6 2.54mm spacing female connector, convenient for external expansion use
