Product details
Description

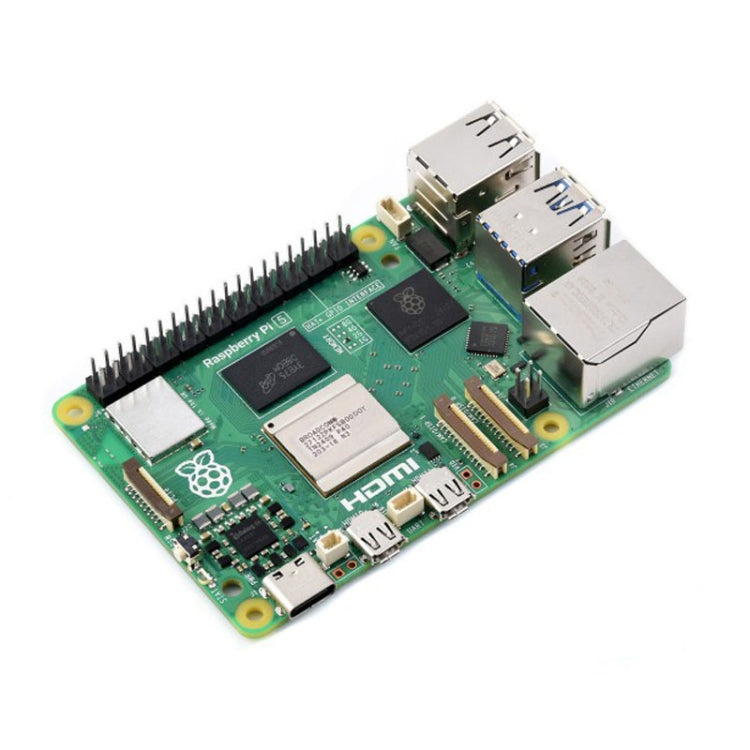

The Waveshare Raspberry Pi 5 Development Board features a 2.4GHz quad-core BCM2712 processor with 4GB of RAM. It is suitable for applications such as smart home automation and mini host development.
- Processor: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
- Cache: 512KB L2 cache, 2MB shared L3 cache
- GPU: VideoCore VII @800MHz, supports OpenGL ES 3.1 and Vulkan 1.2
- Display Outputs: Dual 4Kp60 HDMI
- Video Decoder: 4Kp60 HEVC
- Memory: LPDDR4X-4267 SDRAM (4GB)
- Wi-Fi: 2.4GHz/5GHz dual-band 802.11ac
- Bluetooth: Bluetooth 5.0/Bluetooth Low Energy (BLE)
- Storage: High-speed Micro SD card interface, supports SDR104 mode
- USB Ports: 2 × USB 3.0, supports 5Gbps simultaneous operation
- Ethernet: Gigabit Ethernet, supports PoE+ (requires separate PoE+ HAT)
- MIPI Interfaces: 2 × 4-lane MIPI DSI/CSI
- PCIe: PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or adapter)
- Power: 5V/5A DC via USB-C, supports PD
- GPIO: Raspberry Pi 40PIN GPIO interface
- RTC: Real-time clock powered by an external battery (not included)
- Power Button: Onboard power button for shutdown/startup without disconnecting power
- Application Areas: Mini host, smart home, smart manufacturing project development

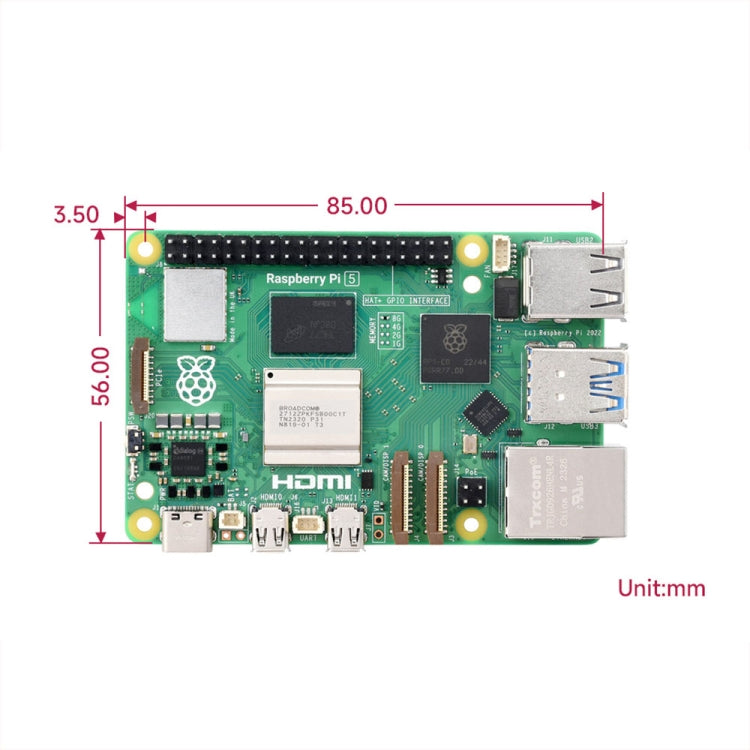

- Dimensions: 85 x 56mm
- Weight: 62g
