Product details
Description

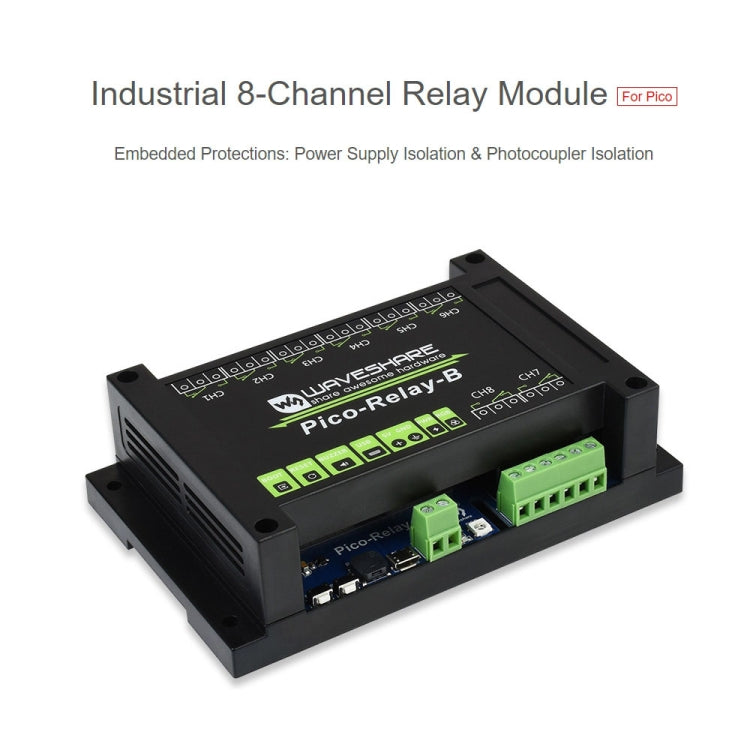

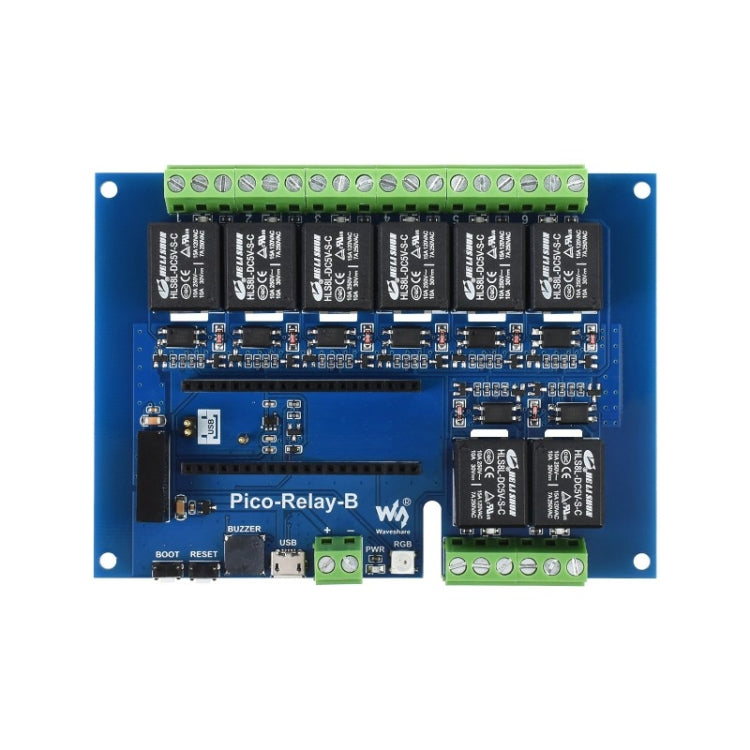

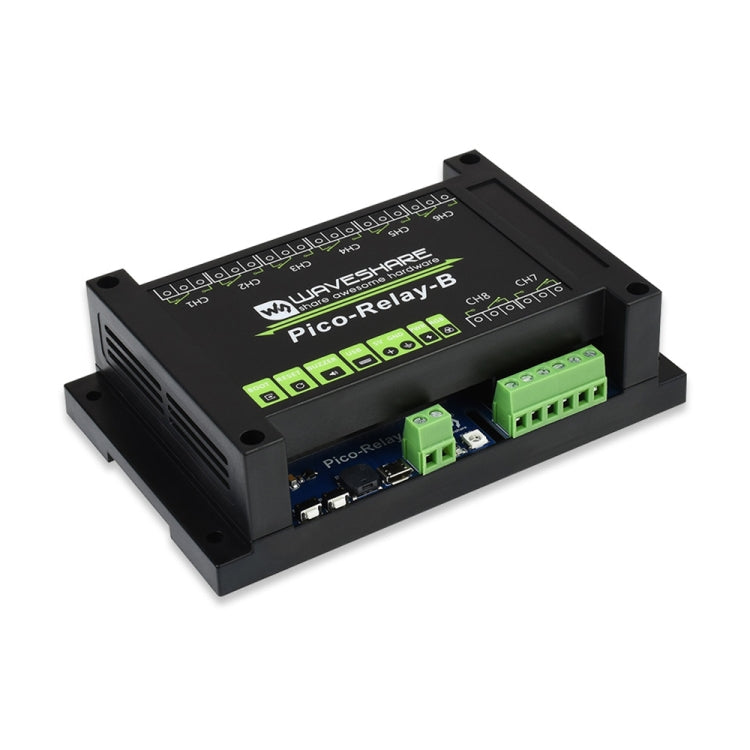

The Waveshare Multi Protection 8-Channel Industrial Relay Module is designed for use with the Raspberry Pi Pico. It provides stable isolated voltage without the need for an extra power supply for the isolated terminal.
- Product Type: Mini PC Accessories
- Compatibility: Raspberry Pi Pico
- Material: ABS
- Operation Voltage: 5V
- Relay Channel: 8CH
- Communication Protocol: USB
- Contact Form: 1NO 1NC
- Communication Interface: Micro USB
- Contact Rating: 10A 250V AC or less than or equal to 10A 30V DC

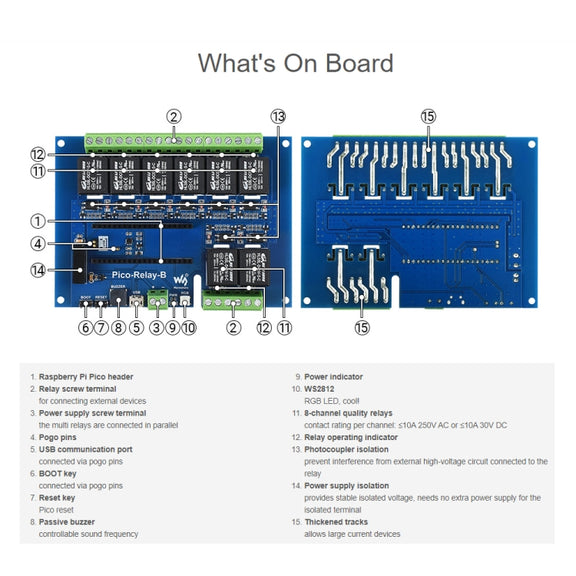

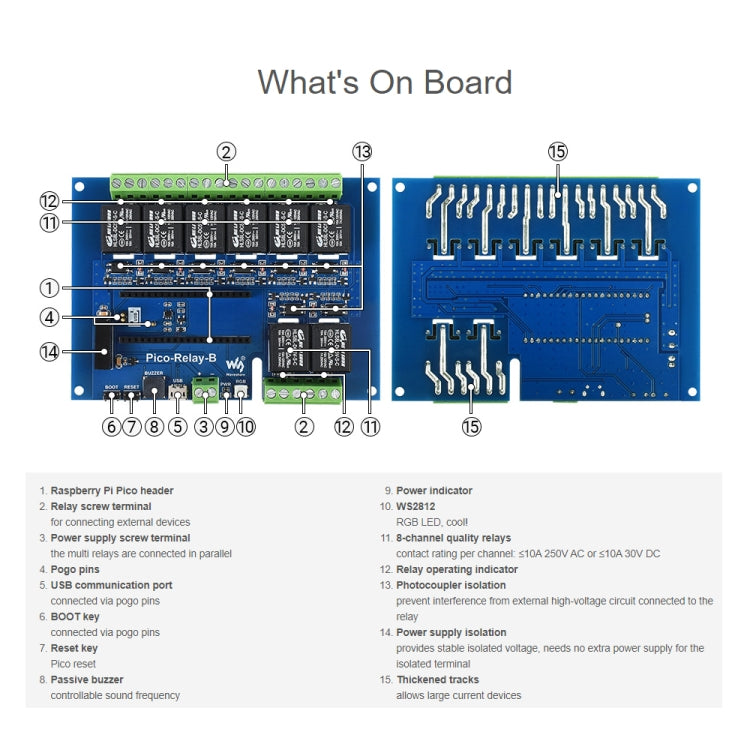

- Onboard Power Supply Isolation: Yes
- Onboard Photocoupler Isolation: Yes

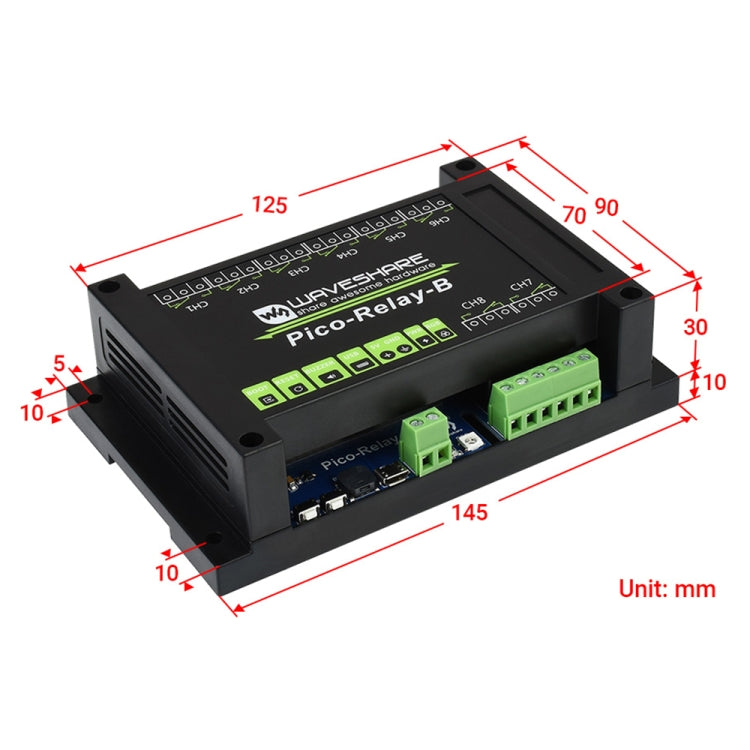

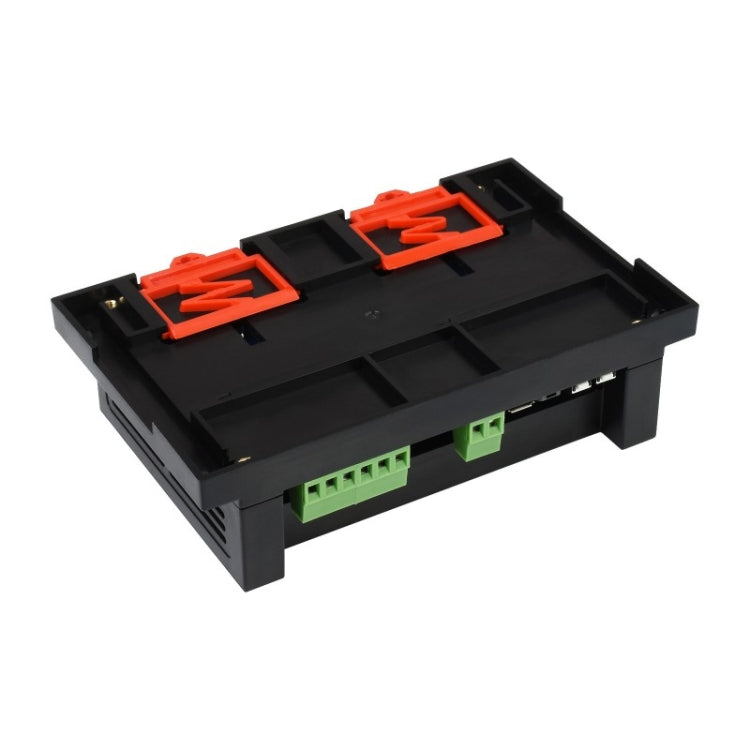

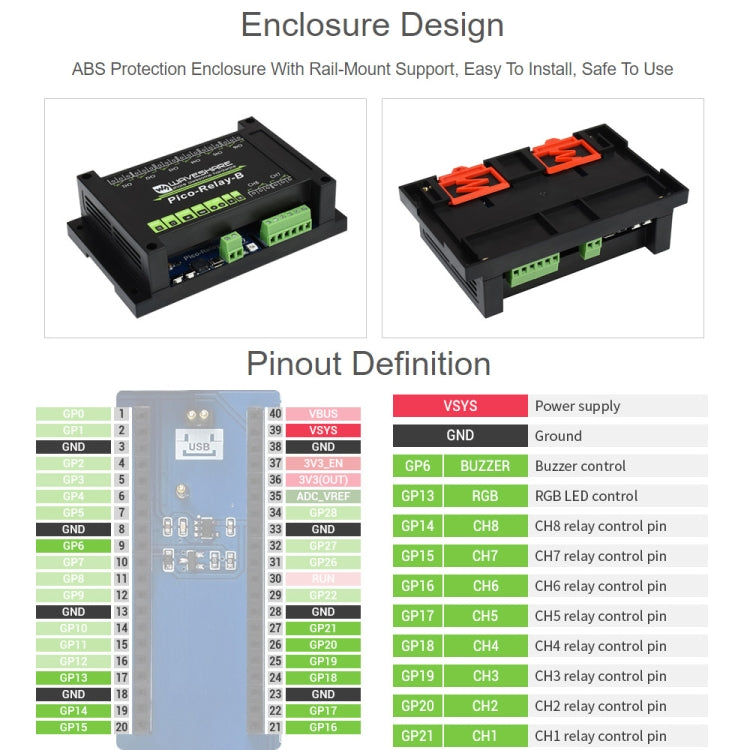

- Enclosure: ABS protection enclosure with rail-mount support
- Debugging Features: Breakout USB port and BOOT pin
- Indicators: PWR indicator, RGB LED, passive buzzer

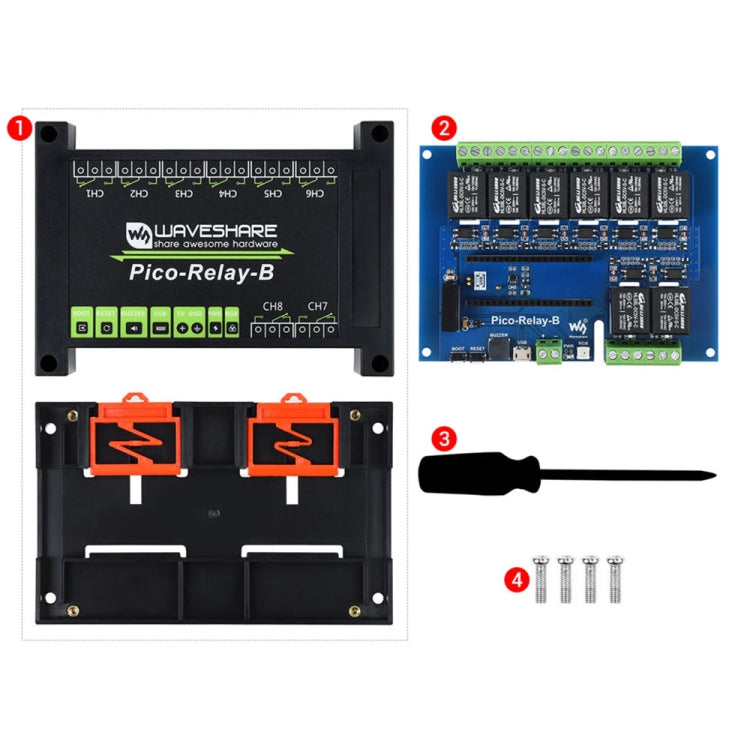

- Package List: ABS protection enclosure (top and bottom) x 1, Pico-Relay-B x 1, Screwdriver x 1, Screws pack x 1
