Product details
Description

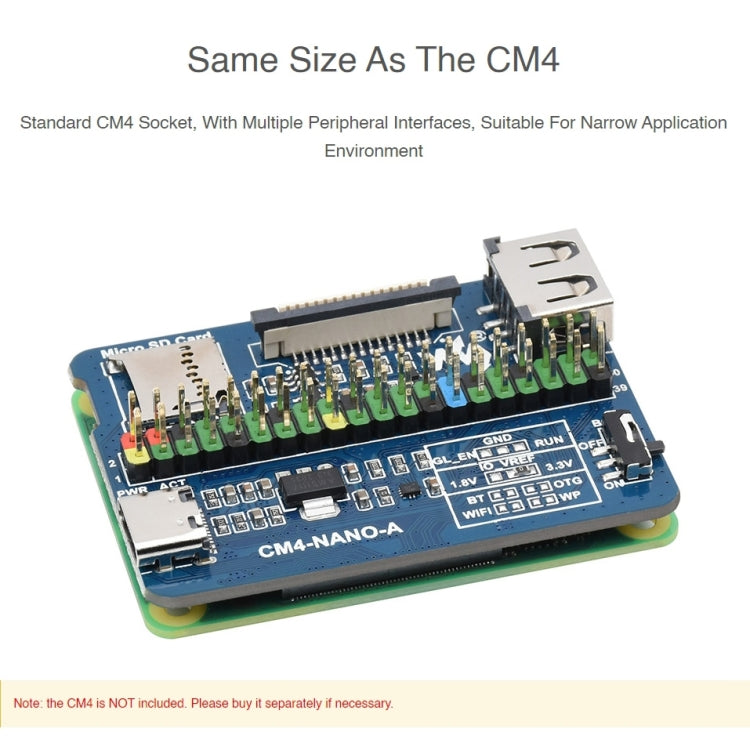

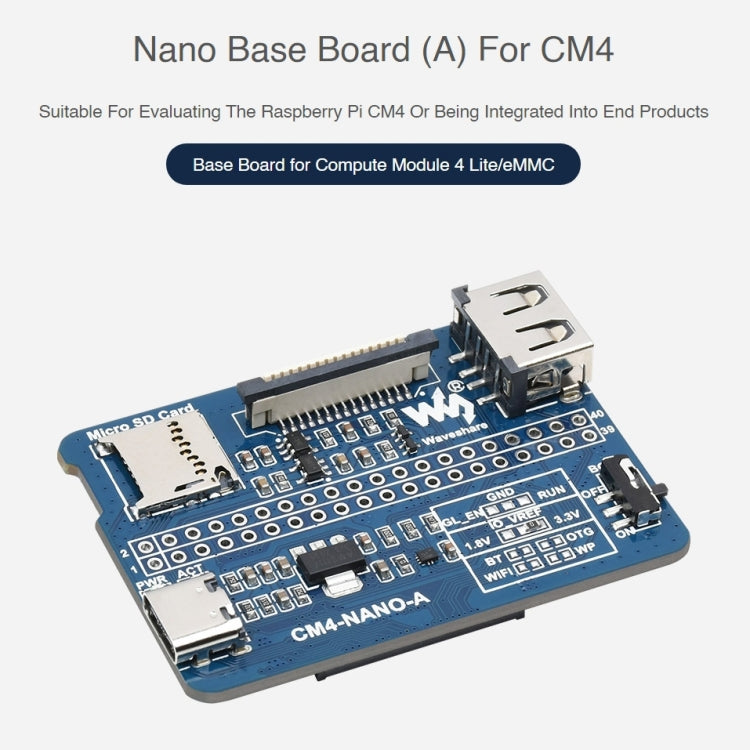

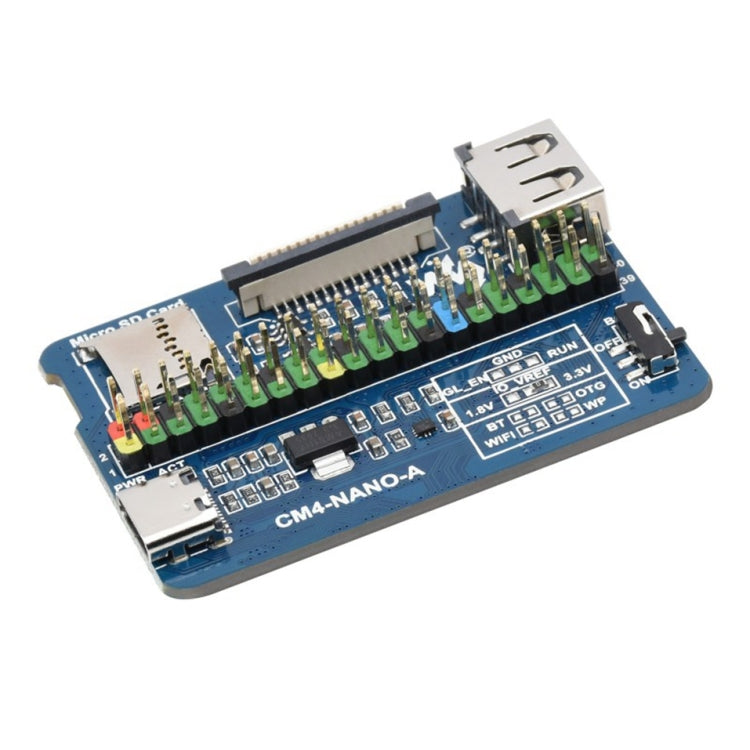

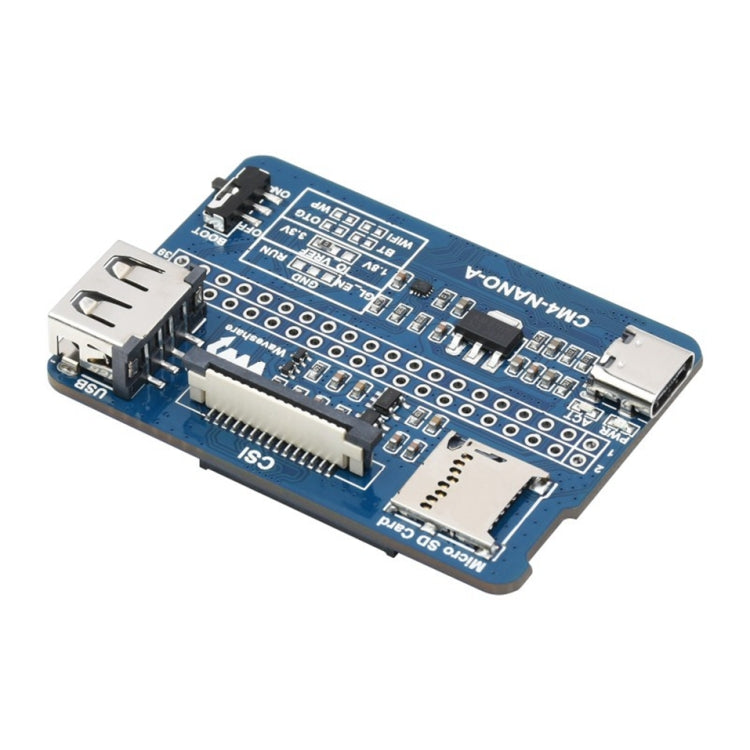

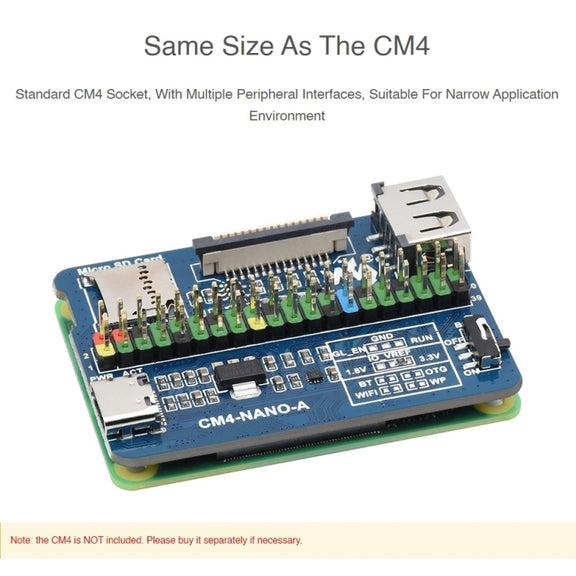

The Waveshare Nano Base Board A is a base board designed for the Raspberry Pi Compute Module 4 (CM4). It is suitable for narrow application environments, providing multiple peripheral interfaces for enhanced connectivity.
- Product Type: Modules Expansions Accessories
- Compatibility: Raspberry Pi CM4

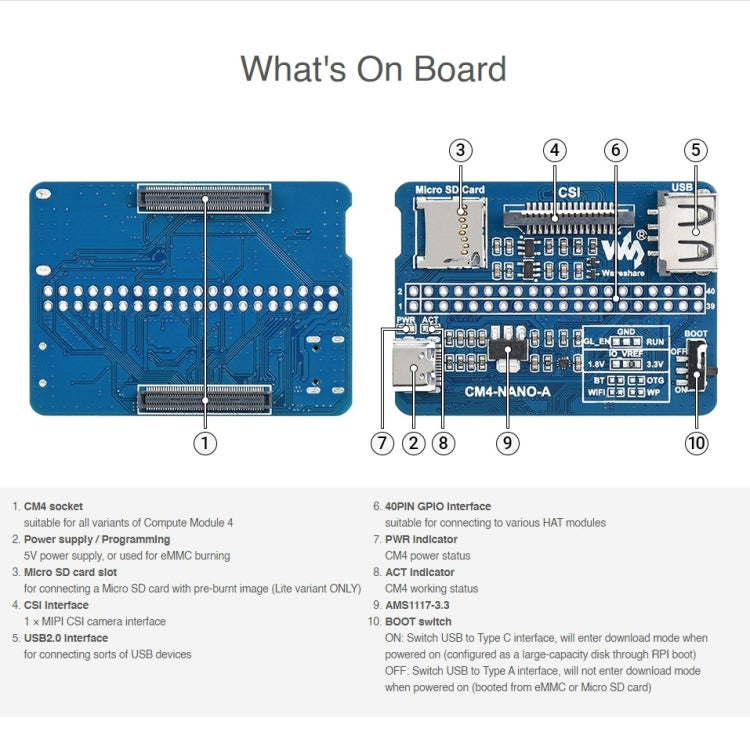

- Key Feature: Standard CM4 socket with multiple peripheral interfaces
- CM4 Socket: Suitable for all variants of Compute Module 4
- Connector: Raspberry Pi 40PIN GPIO interface x 1
- USB: USB 2.0 Type A interface x 1
- Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
- Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
- Power: 5V

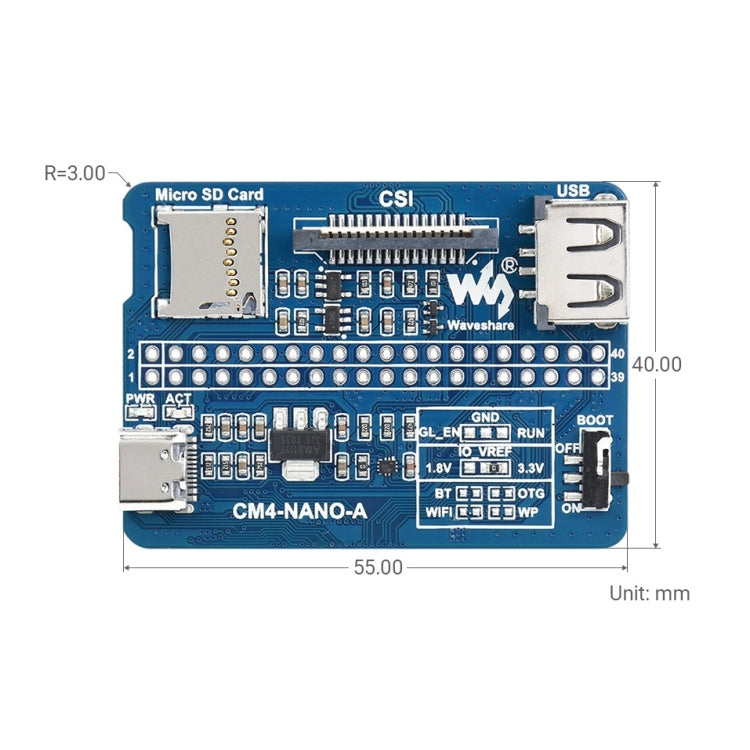

- Size: 55 x 40mm
- Package List: CM4-NANO-A x1, 2 x 20PIN color-coded straight pinheader x 2
