Product details
Description

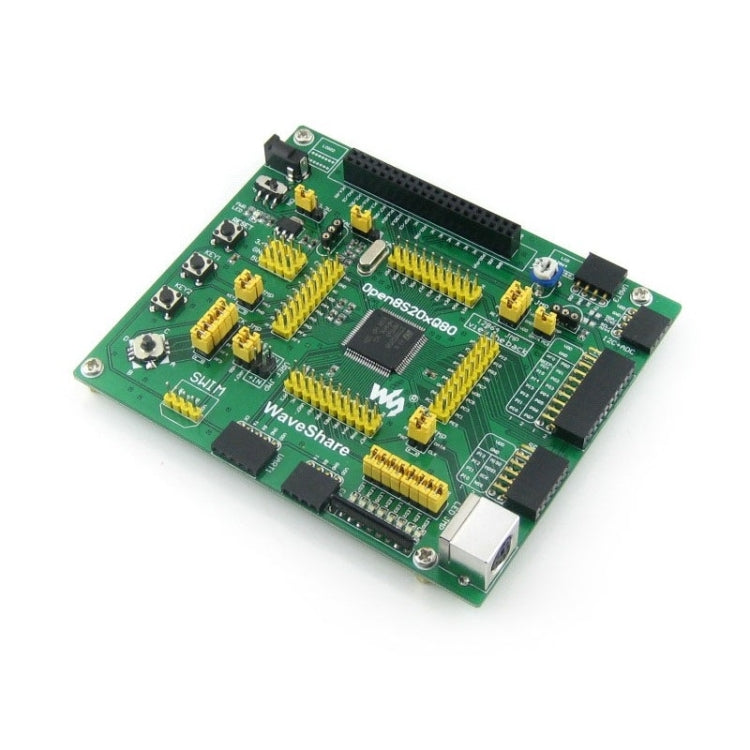

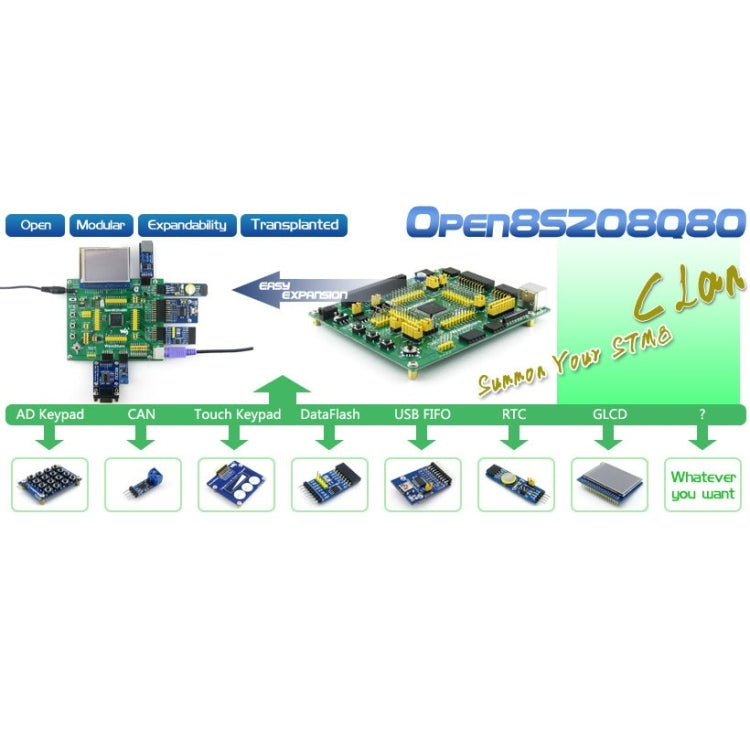

The Open8S208Q80 is an STM8 development board designed for microcontroller applications. It is suitable for everyday use in application development with STM8 microcontrollers.

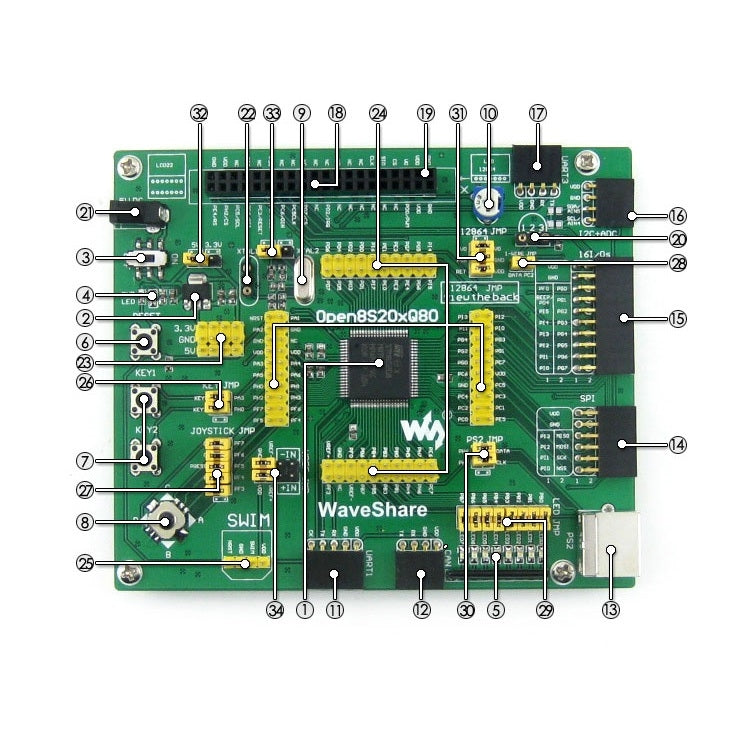

- Product Type: MCU Tools
- Brand: Waveshare
- Compatibility: STM8 Development Board
- Material: Durable
- Key Feature: Open design
- Operating Frequency: 24 MHz (20 MIPS) Max
- Operating Voltage: 2.7-5.5V
- Package: LQFP80
- Core: 8-bit
- I/Os: 68
- Memories: 128kB Flash, 6kB SRAM, 2kB EEPROM
- Communication Interfaces: 1 x SPI, 1 x I2C, 2 x UART, 1 x CAN, 12 x PWM, 16 x ADC
- Debugging/Programming: SWIM
- Voltage Regulator: AMS1117-3.3
- Power Switch: Yes
- Power Indicator: Yes
- LEDs: Indicate I/O status and program running state
- Reset Button: Yes
- User Keys: For I/O input test and program control
- Joystick: Five positions
- 8M Crystal Oscillator: Yes
- Adjustable Resistor: For LCD12864 contrast adjustment
- UART1 Interface: Connects UART peripherals (RS232, RS485, USB TO UART)
- CAN Interface: Connects CAN modules
- PS/2 Interface: Connects PS/2 devices (keyboard, mouse)
- SPI Interface: Connects SPI peripherals (DataFlash, SD card, MP3)
- 16 I/Os Interface: Connects accessory boards using I/O control
- IC Interface: Connects I2C peripherals (I/O expander, EEPROM)
- UART3 Interface: Connects UART peripherals (RS232, RS485, USB TO UART)
- Graphic Multi-color LCD Interface: Connects 2.2 inch multi-color touch screen LCD using SPI control
- Graphic Dot-matrix LCD Interface: Connects graphic LCDs (LCD12864)
- 1-WIRE Interface: Connects 1-WIRE devices (temperature sensor, electronic registration number)
- 5V DC Jack: Yes
- Custom Crystal Socket: Yes
- VCC Power Input/Output: Common-grounding with other user board
- MCU Pins Connector: Accessible on expansion connectors for further expansion
- SWIM Interface: For debugging/programming
- User Keys Jumper: Yes
- Joystick Jumper: Yes
- 1-WIRE Jumper: Yes
- LEDs Jumper: Yes
- PS/2 Jumper: Yes
- LCD Interface Selection Jumper: Selects between dot-matrix and multi-color LCD
- VDD Selection Jumper: Yes
- Crystal Selection Jumper: Yes
- VREF Selection Jumper: Yes
- Package Contents: Open8S208Q80 development board, 4-pin wire, 2-pin wire, USB power cable, user guide CD
