Product details
Description

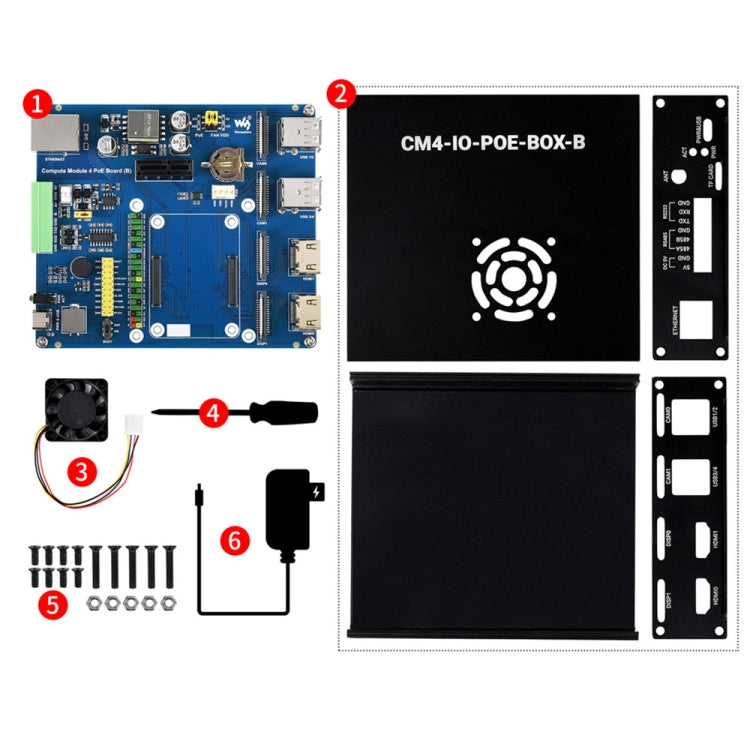

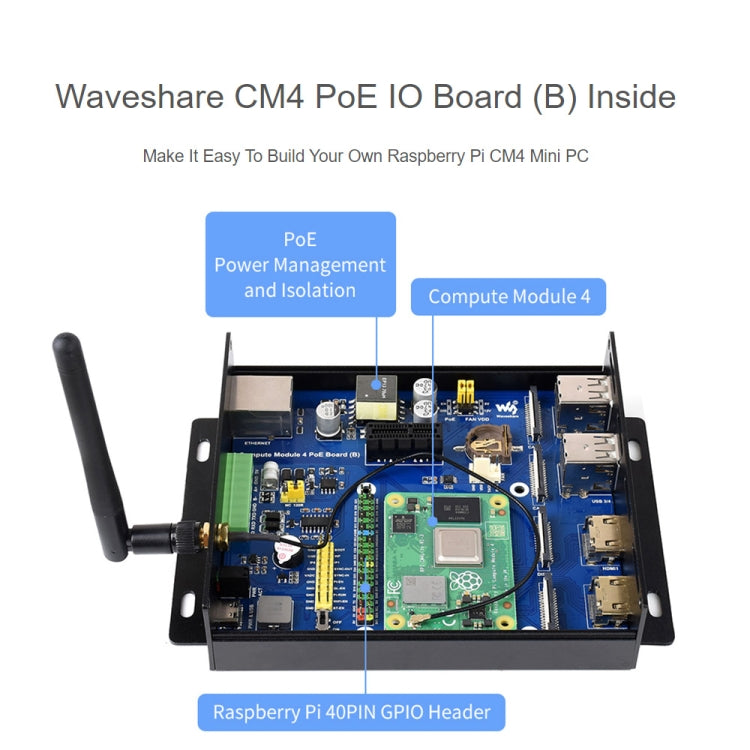

The Waveshare PoE Mini-Computer Type B Base Box is a mini PC accessory designed for the Raspberry Pi Compute Module 4. It is suitable for everyday use, providing integrated Power over Ethernet (PoE) functionality.
- Product Type: Mini PC Accessory
- Compatibility: Raspberry Pi Compute Module 4
- Material: Metal
- Integrated PoE Circuit: 802.3af-compliant (5V/2.5A)

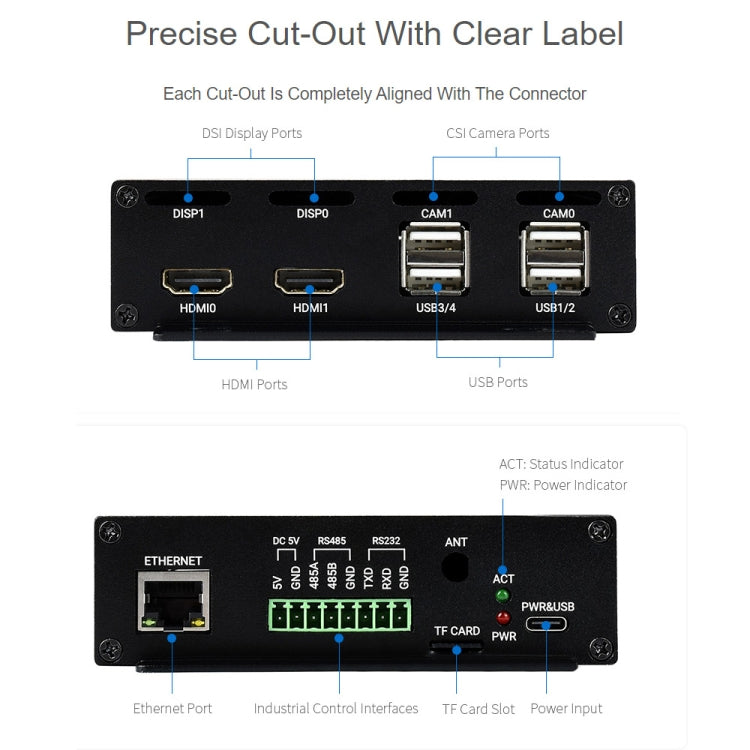

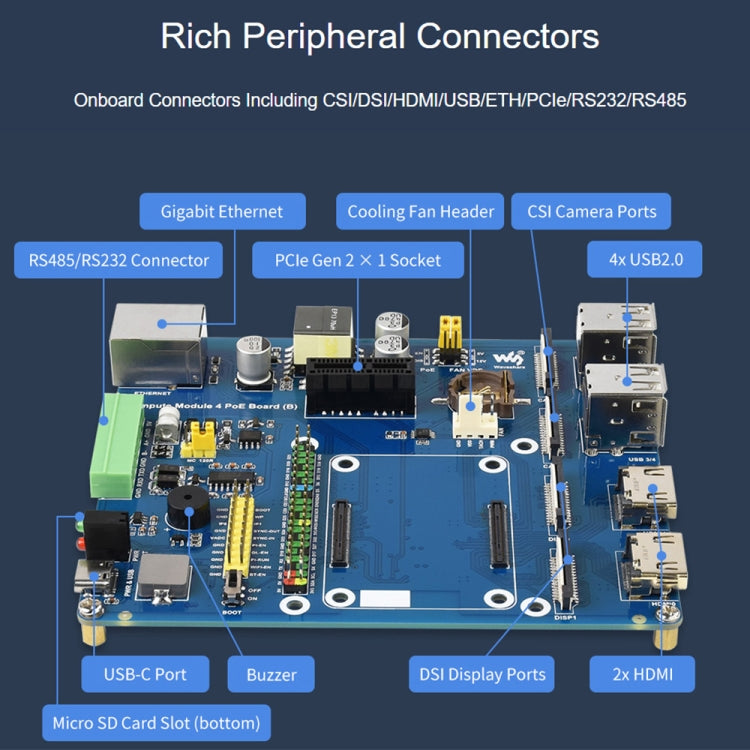

- USB Ports: 4 x USB 2.0
- GPIO: 1 x 40 PIN GPIO for Raspberry Pi
- Headers: 1 x RS485, 1 x RS232, 1 x PCIe Gen 2
- HDMI Ports: 2 x HDMI, supports 4K at 30fps output
- DSI Display: 2 x MIPI DSI (15pin 1.0mm FPC)
- CSI Camera: 2 x MIPI CSI-2 (15pin 1.0mm FPC)
- Power Input: 5V

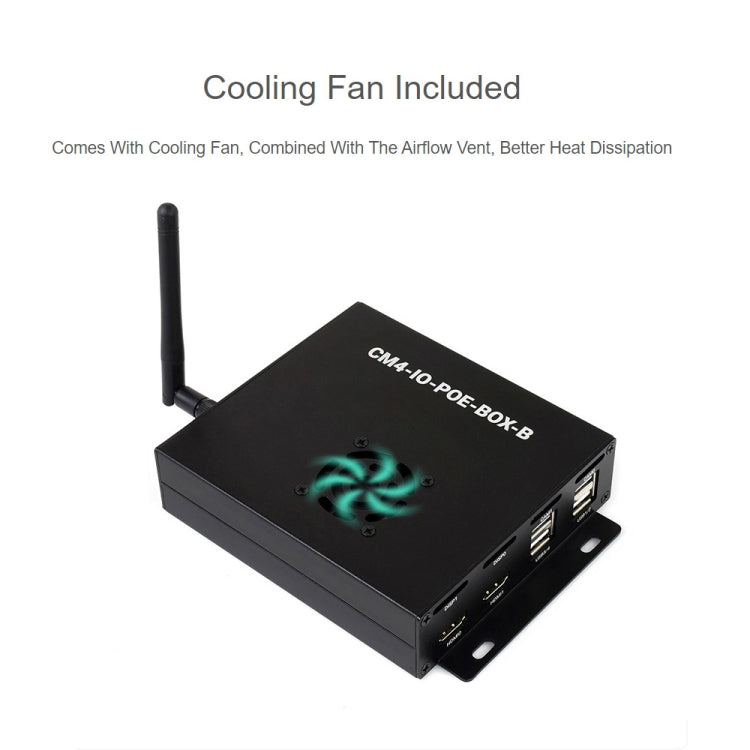

- Fan: 5V / 12V with speed adjustment and measurement
- RTC: Real-time clock with battery socket
- RJ45 Ethernet: Gigabit Ethernet
- CM4 Slot: Compatible with all variants of Compute Module 4
- SD Card Slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

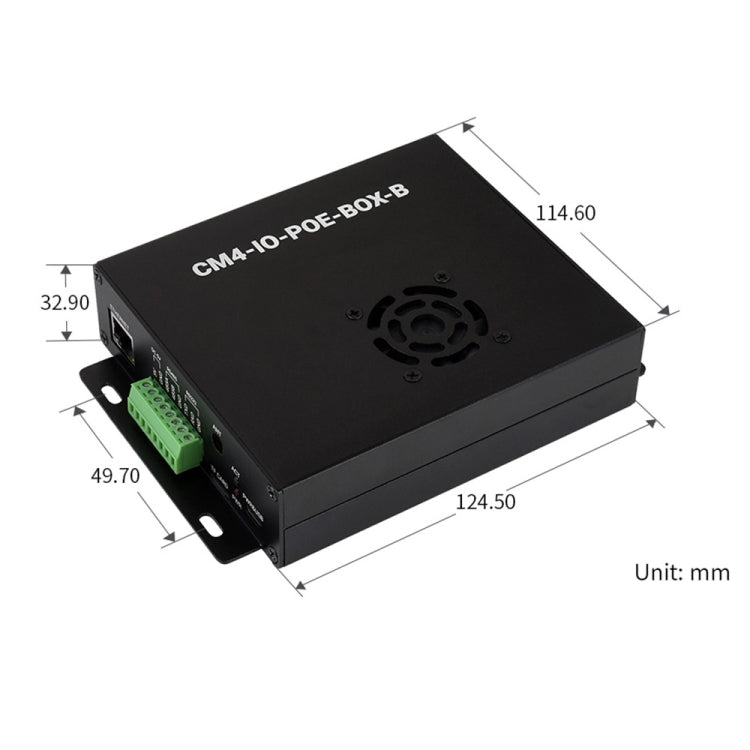

- Dimensions: 124.50 x 108.80 mm
