Product details
Description
The Waveshare PoE Mini-Computer Type B Base Box is a mini PC accessory designed for Raspberry Pi CM4. It is suitable for everyday use, providing essential connectivity and cooling features.
- Product Type: Mini PC Accessory
- Compatibility: Raspberry Pi CM4
- Material: Metal
- Color: Black
- Power Input: 5V

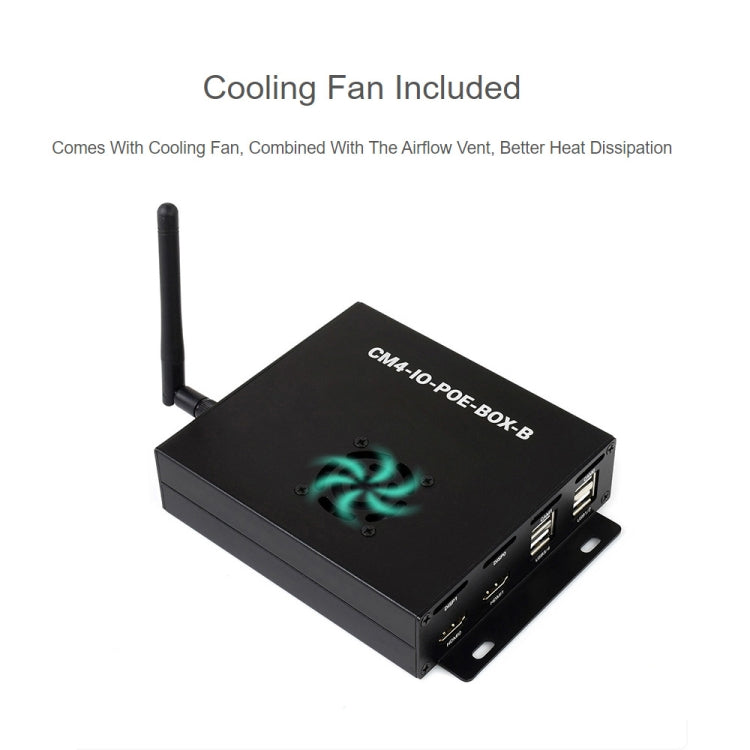

- Cooling Fan: 5V / 12V with speed adjustment and measurement
- POE: Integrates 802.3af-compliant PoE circuit (5V/2.5A)
- USB Ports: 4 x USB 2.0
- GPIO: 1 x 40 PIN GPIO for Raspberry Pi
- Header Ports: 1 x RS485, 1 x RS232, 1 x PCIe Gen 2
- HDMI Ports: 2 x HDMI, supports 4K 30fps output
- DSI Display: 2 x MIPI DSI (15pin 1.0mm FPC)
- CSI Camera: 2 x MIPI CSI-2 (15pin 1.0mm FPC)
- RTC: Real-time clock with battery socket
- RJ45 Ethernet: Gigabit Ethernet
- CM4 Slot: Compatible with all variants of Compute Module 4
- SD Card Slot: MicroSD card socket for Compute Module 4 Lite variants

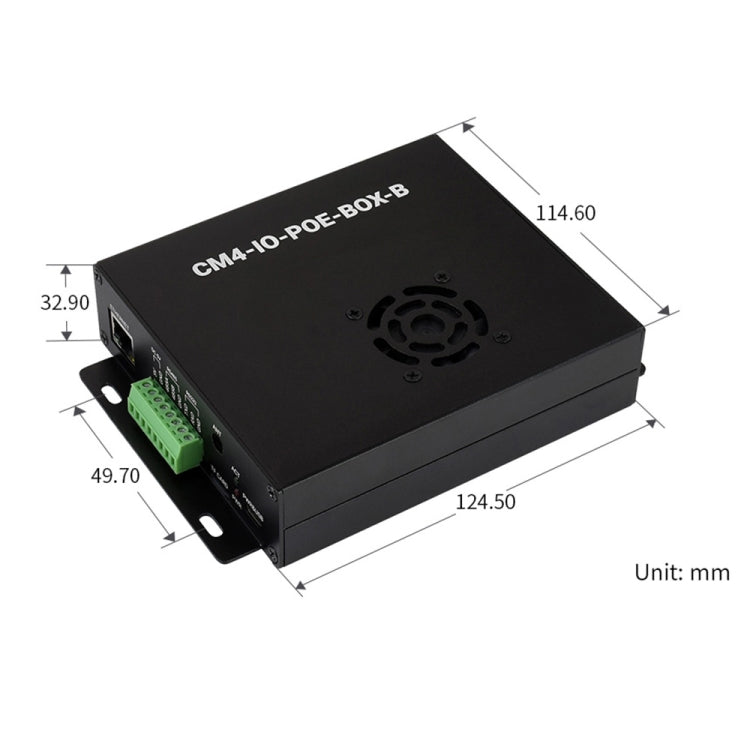

- Dimensions: 124.50 x 108.80 mm

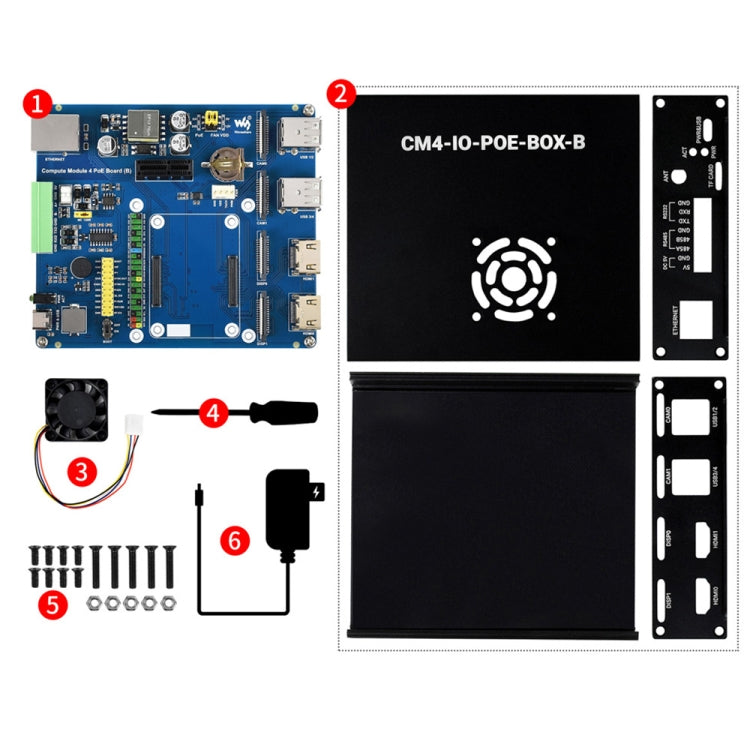

- Package Includes: Compute Module 4 PoE Board (B), Metal case (top and bottom), Fan-4010-PWM-12V, Screwdriver, Screws pack, 5V 3A USB-C power adapter
