Product details
Description

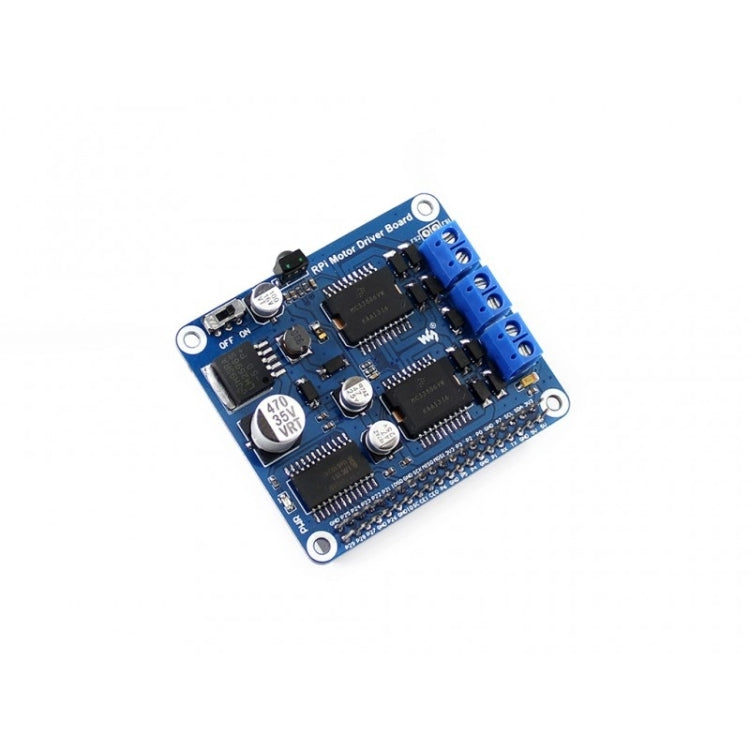

The Waveshare RPi Motor Driver Board is a module designed to control DC motors in both directions. It is suitable for robotics applications, allowing users to build and operate remote-controlled robots.
- Product Type: Modules Expansions Accessories

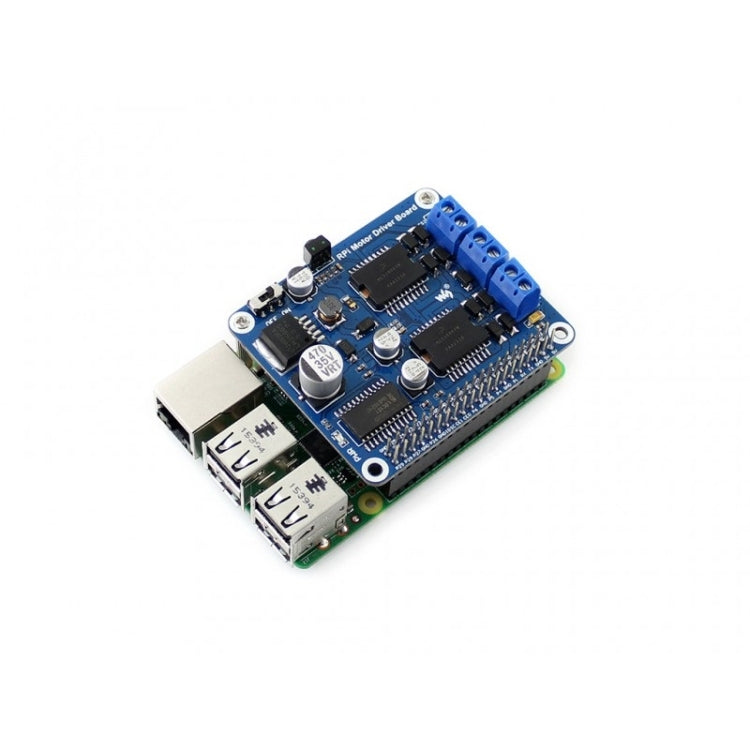

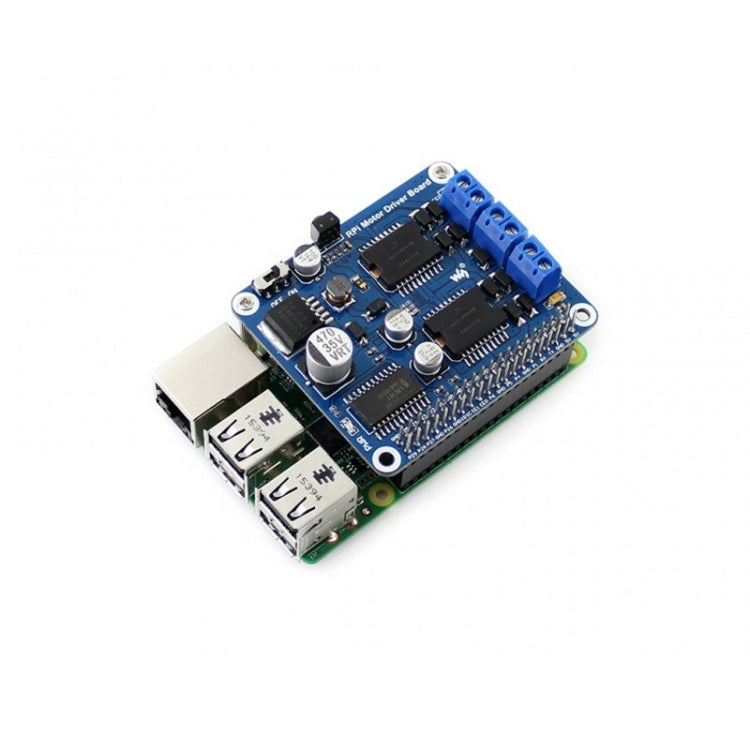

- Compatibility: Raspberry Pi A+/B+/2B/3B/3B+
- Material: Not specified
- Key Feature: Controls DC motors in both directions
- Color/Variant: Not specified
- Category: Electronics Module Raspberry Pi Expansion Board, DC Motor / Stepper Motor Driver
- Power Input Range: 7V~40V
- Single Motor Output Current: Up to 5A
- Power Supply Current for Raspberry Pi: Up to 2A
- Onboard Components:
- Freescale H-bridge driver MC33886
- Onboard 5V regulator
- Onboard IR receiver
- 74LVC4245AD voltage level conversion chip
- LM2596-5.0 5V regulator
- 2A self-recovery fuse
- Power indicator
- Raspberry Pi power selection switch
- Motor screw terminal for connecting motors
- External power input
- Schottky diodes for motor driver protection
- Anti-reverse diode for power supply
- Multi-protection circuit features:
- 2A self-recovery fuse for safety
- Short-Circuit Shutdown for large output current
- Undervoltage disable function
- Reversed polarity protection for motor output
- Package Contents:
- RPi Motor Driver Board x 1
- RPi screws pack (2pcs) x 1
