Product details
Description

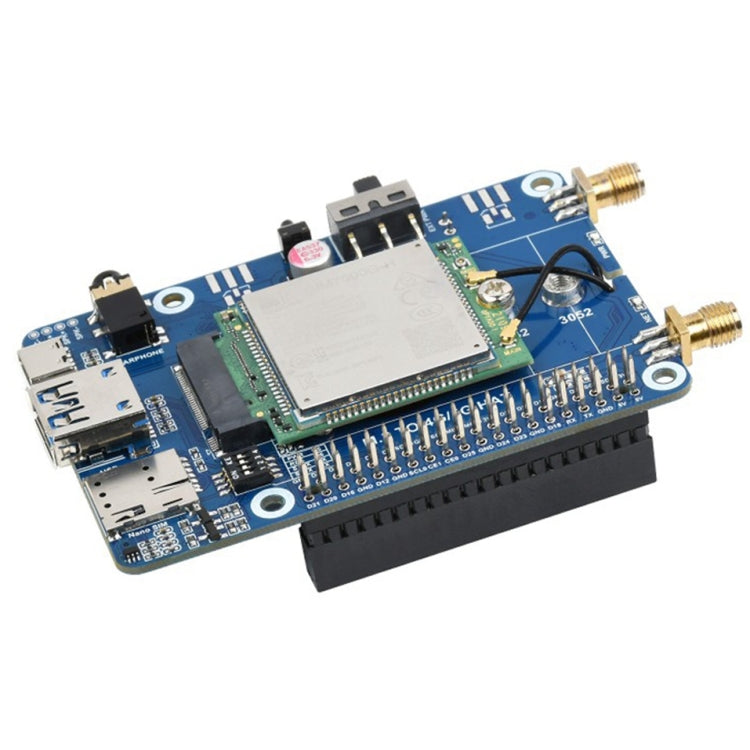

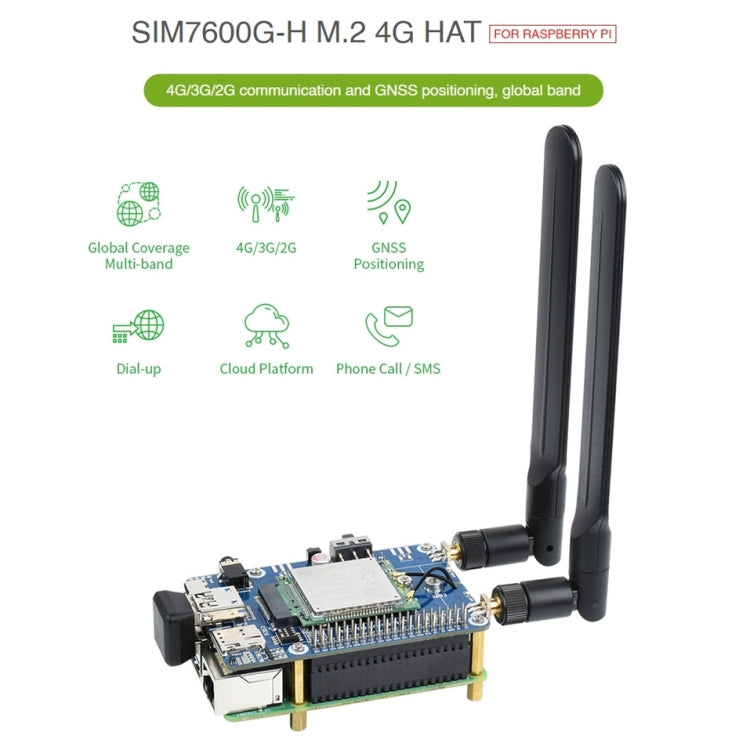

The Waveshare SIM7600G-H M.2 4G HAT is a communication module designed for Raspberry Pi. It enables high-speed 4G networking, cloud communication, and GNSS positioning.
- Product Type: M.2 4G HAT
- Compatibility: Raspberry Pi
- Material: Not specified
- Key Feature: High-speed LTE CAT4 connection
- Intended Use: Everyday use
- Frequency Bands:
- LTE Cat-4: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
- LTE-TDD: B34, B38, B39, B40, B41
- 3G: UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
- 2G: GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
- GNSS Positioning:
- Satellite Systems: GPS, Beidou, GLONASS, GALILEO, QZSS
- Receiver Type: 16-channel, C/A Code
- Sensitivity: -159 dBm (GPS), -158 dBm (GLONASS), TBD (BeiDou)
- Cold Starts: -148 dBm
- Time-To-First-Fix (open air):
- Cold Starts: Less than 35s
- Hot Starts: Less than 1s
- Audio Features:
- Supported SMS Types: MT, MO, CB, Text, PDU
- Storage: USIM card and ME (default)
- Audio Features: Echo cancellation, noise reduction
- Power Supply:
- High efficiency power supply circuit, up to 3A output current
- Onboard power supply on/off switch
- Reset button and LED indicator
- Connectivity:

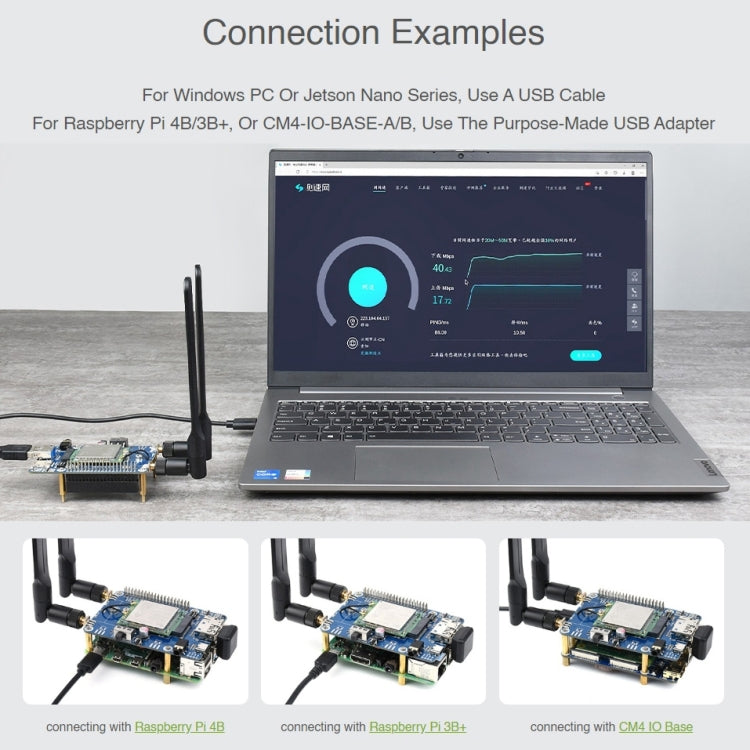

- USB 3.1 port (USB 2.0 compatible)
- Onboard UART, PWR, and RST control pin
- Onboard USB-C connector for standalone power supply
- Reserved 4x SMA to IPEX antenna interfaces with pre-soldered 2x connectors
- Onboard audio jack and audio decoder
- Package List:
- M.2 TO 4G/5G HAT x 1
- SIM7600G-H-M.2 x 1
- Antenna 2pcs x 1
- IPEX adapter cable 2pcs x 1
- 2*20PIN pin header x 1
- Passive GPS antenna x 1
- Dual plug USB3.0 cable x 1
- USB3.0 adapter x 1
- USB2.0 adapter x 1
- SMA protective cap 2pcs x 1
- Screws pack x 1
