Product details
Description

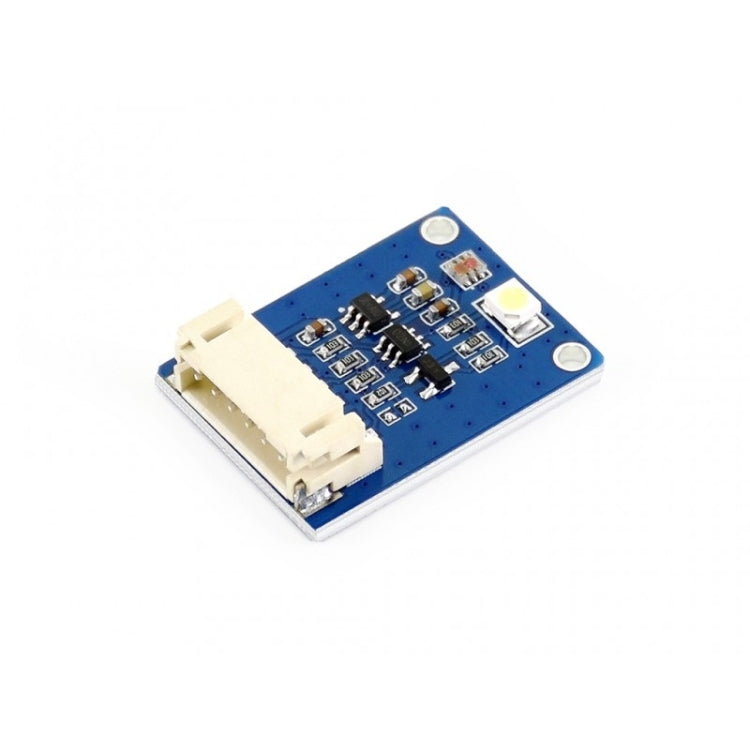

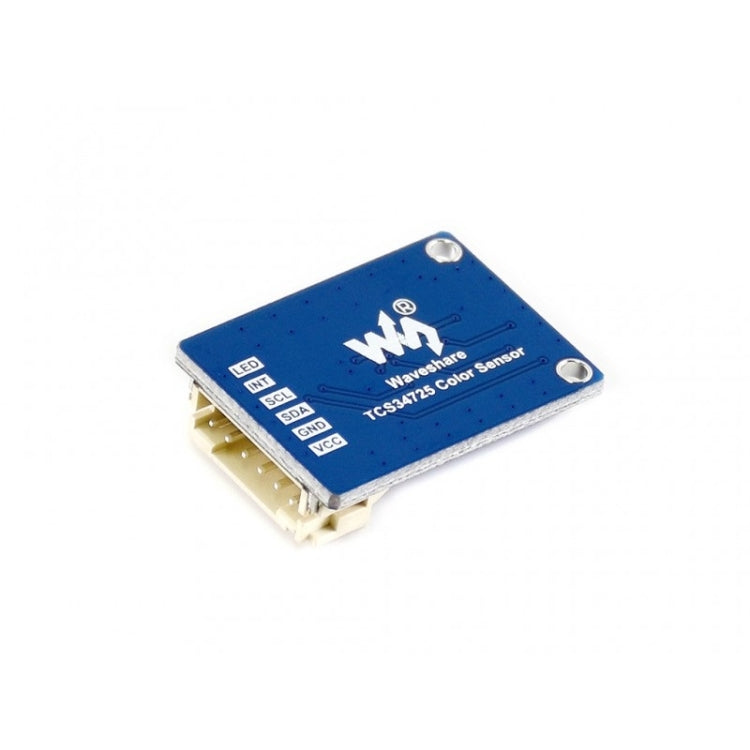

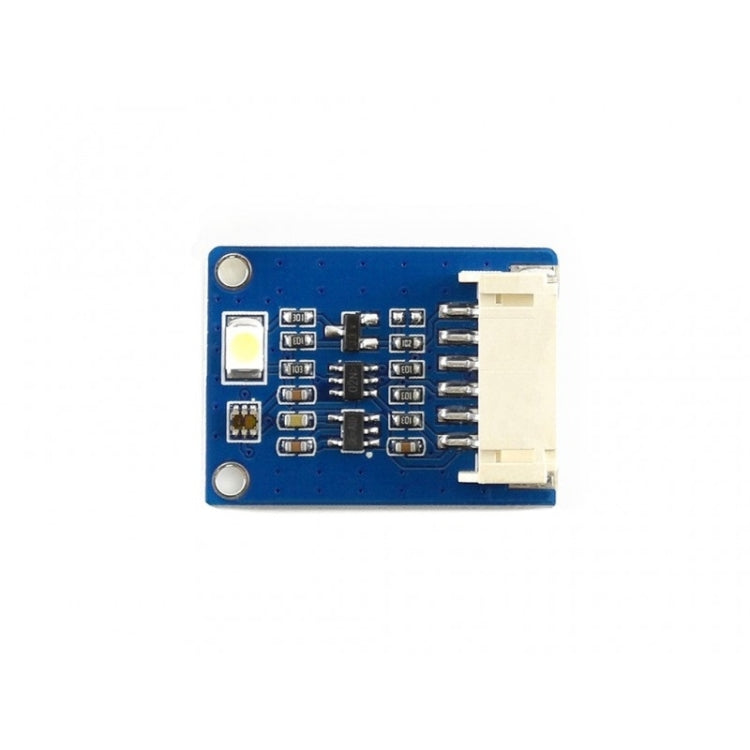

The Waveshare TCS34725 Color Sensor Module is a color sensor module that outputs RGB data and light intensity through the I2C interface. It is suitable for applications such as color sorting, ambient light sensing, and product color identification.
- Product Type: Color Sensor Module
- Sensor: TCS34725FN
- Communication Interface: I2C
- Operating Voltage: 3.3V/5V
- Dimensions: 27mm × 20mm
- Resolution: 4-channel RGBC, 16-bit per channel
- Recommended Measuring Distance: 2mm
- Features: High sensitivity, wide dynamic range, accurate measuring
- IR Blocking Filter: Yes
- Light Intensity Interrupt Output: Programmable upper and lower thresholds
- Fill-light Support: Onboard LED with adjustable brightness via PWM
- Voltage Level Translator: Compatible with 3.3V/5V operating voltage
- Development Resources: Includes examples for Raspberry Pi, Arduino, and STM32

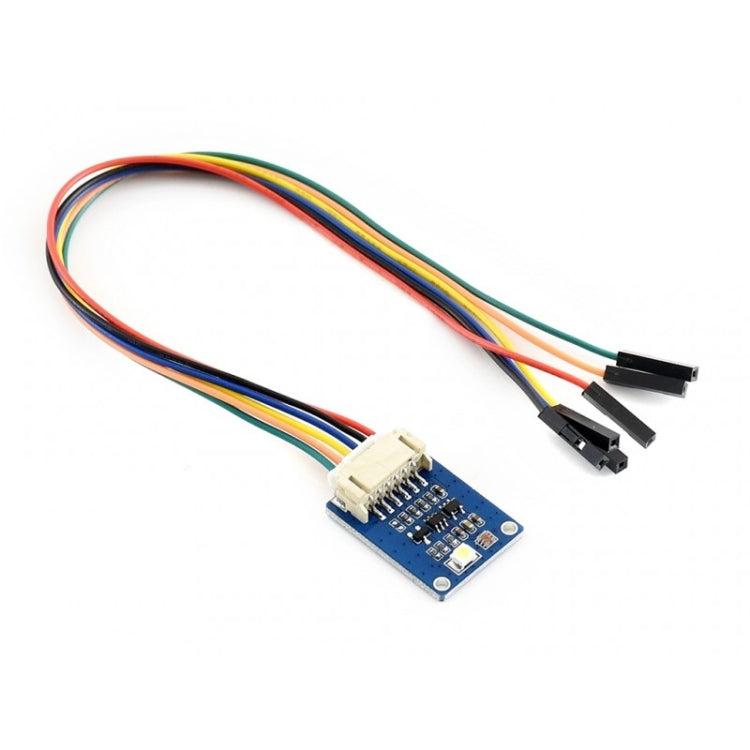

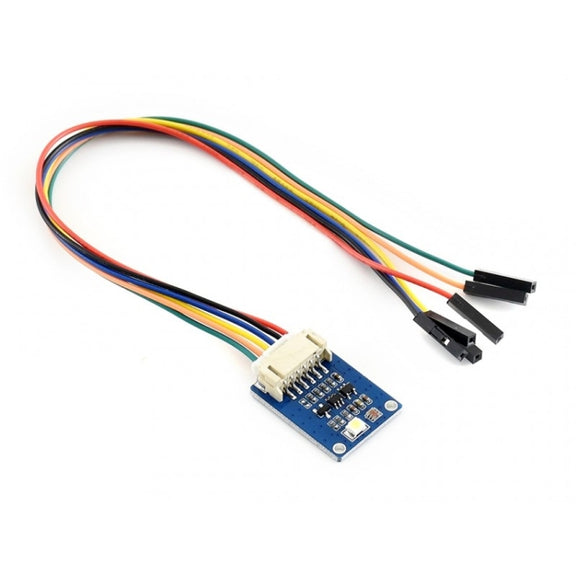

- Package Contents: TCS34725 Color Sensor x1, PH2.0 6PIN wire 20cm x1
