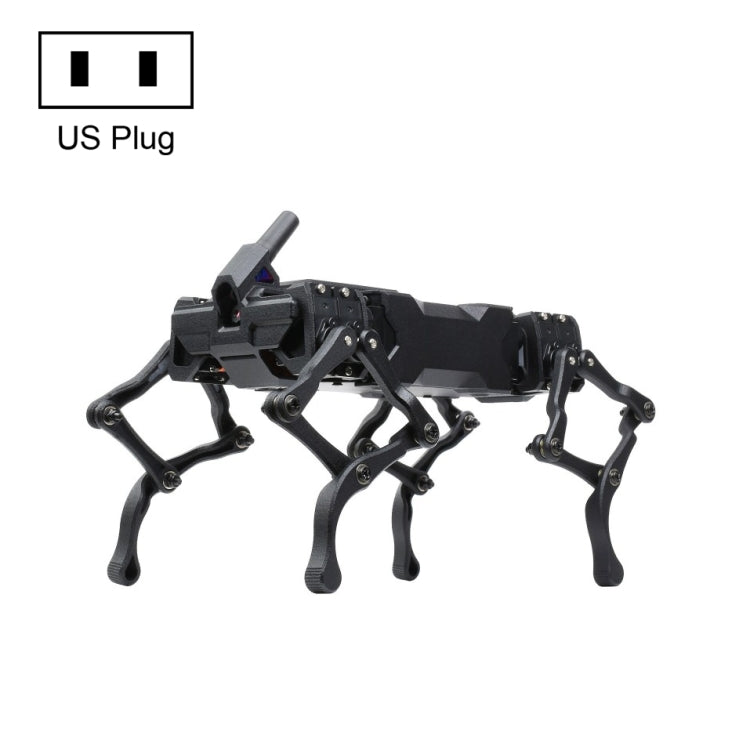

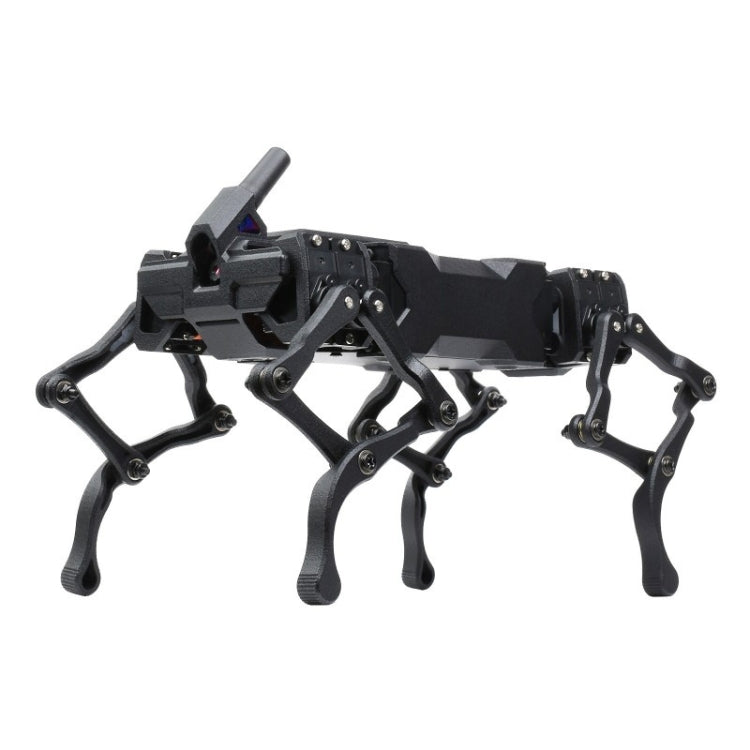

Waveshare WAVEGO 12-DOF Bionic Dog-Like Robot, Basic Version(US Plug)
Waveshare WAVEGO 12-DOF Bionic Dog-Like Robot, Basic Version(US Plug)
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

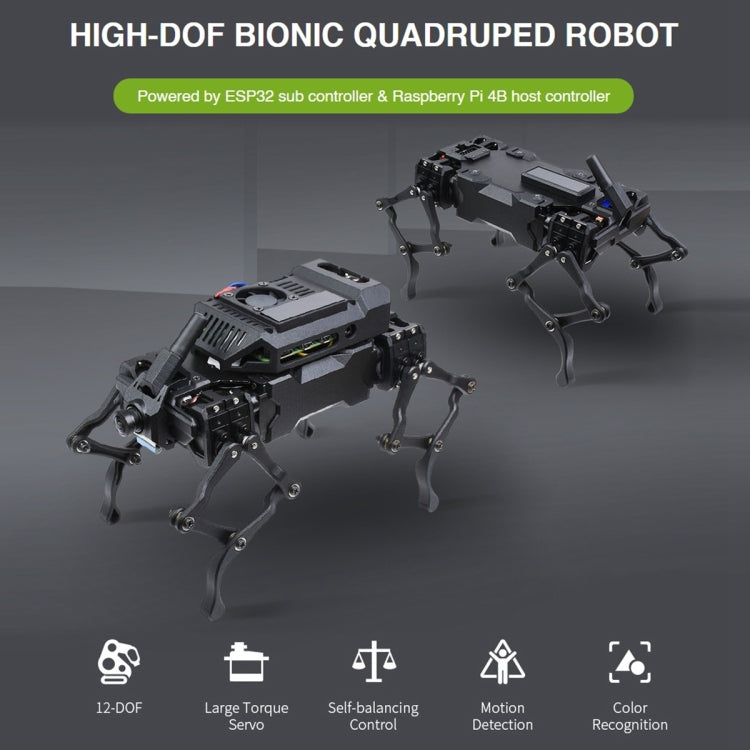

The WAVEGO is a high-degree-of-freedom bionic quadruped robot designed for various robotic applications. It can perform multiple gaits such as shaking hands, standing up, and self-balancing, making it suitable for educational and research purposes.
- Product Name: WAVEGO high-DOF bionic quadruped robot

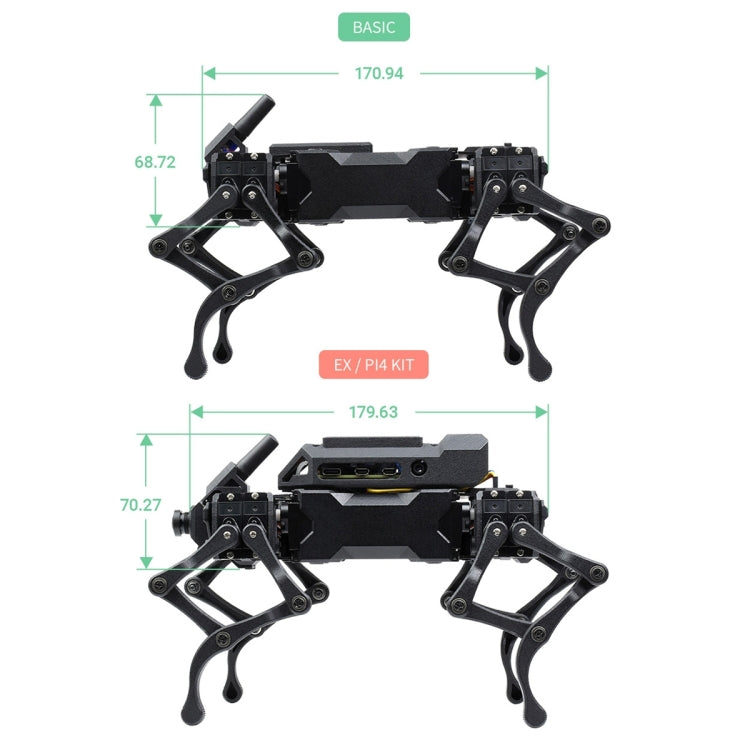

- Dimensions (Stand Up): Length 218mm, Width 116mm, Height 152mm
- Dimensions (Lie Down): Length 228mm, Width 116mm, Height 127mm
- Overall Weight: 465g (with batteries)
- Degrees of Freedom (DOF): 12 overall, 3 per leg
- Operating System: FreeRTOS + Raspberry Pi OS
- Available Gaits: Shake hands, stand up, crouch slowly, diagonal gait, jump, self-balancing
- Load Capacity: 300g
- Servo Dimensions: 23.2 x 12.1 x 25.25 mm
- Servo Weight: 13.0 +/- 1g
- Servo Operating Voltage: 6V
- Servo Idle Speed: 0.1 sec/60 degrees (100 RPM)
- Servo Stalling Torque: 2.3 kg.cm (31.99 oz.in)
- Servo Rated Load: 0.7 kg.cm
- Servo Rated Current: 350mA
- Control Method: Pulse width modulation
- Control System Type: Digital comparator

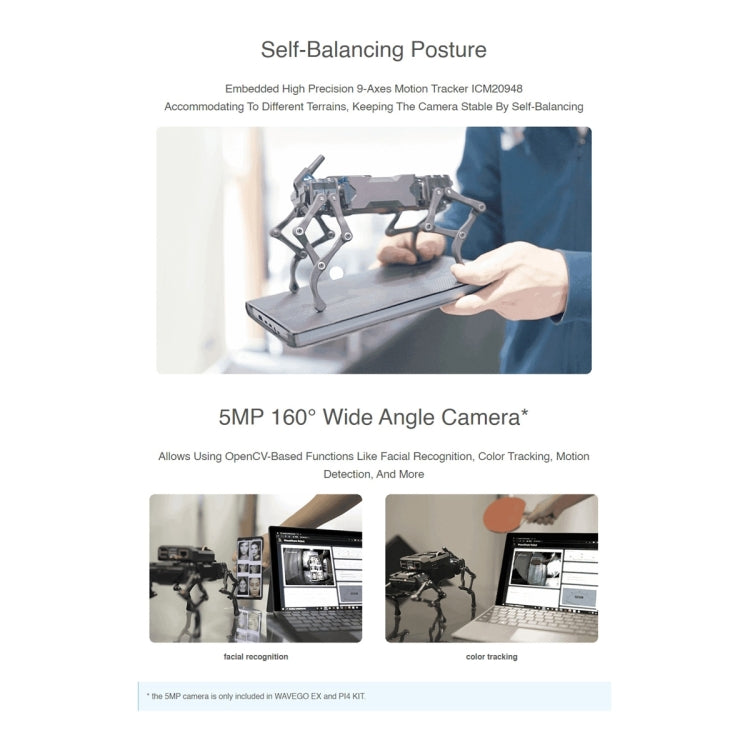

- Visual Function: Web-based real-time video streaming, facial recognition, color tracking, moving object detection
- Processor: ESP32 sub controller with Xtensa LX6 dual-core processor at 240MHz
- Memory: SRAM 520KB + 8MB, Flash 448KB + 4MB
- WiFi Standard: 802.11b/g/n
- Bluetooth Standard: Bluetooth 4.2 (BR/EDR and BLE)
- External Ports: 2 x 5P multi-function extension ports
- DC Battery Charger Jack: Type-C
- Battery Type: 18650 Li-ion batteries (not included)
- Supply Voltage: 7-8.4V
- Recharge Voltage: 8.4V
- Protection Features: Overcharge, discharge protection, overcurrent protection, short circuit protection, reverse proof, equalizing charge
- Output Voltage: 5V output for other host controllers

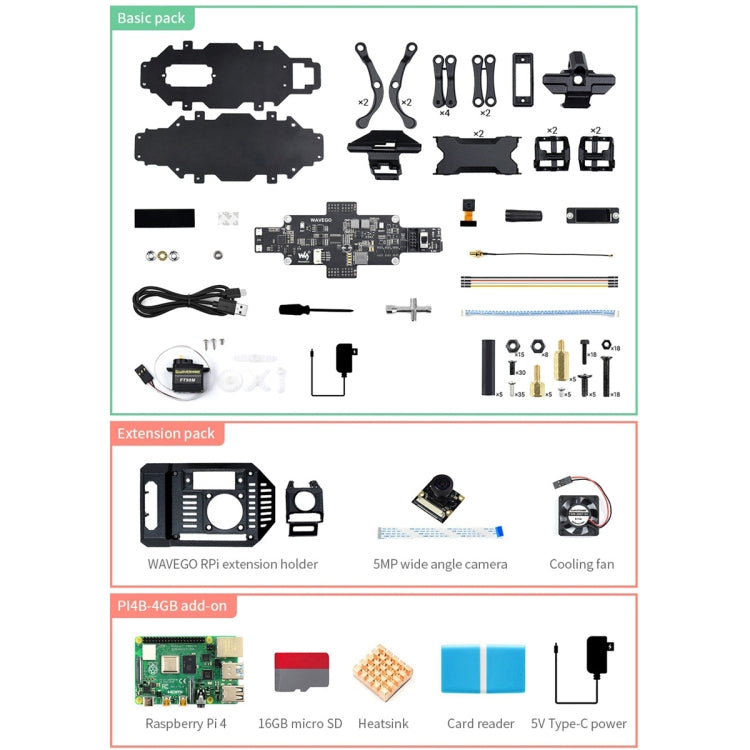

- Package Includes: WAVEGO body case, basic parts, semi-transparent acrylic panel, double-sided sticker, base board, 2MP camera, 2.4G antenna, 0.91 inch OLED display, micro thrust bearings, micro ball flange bearings, USB cable (~1m), plus screwdriver, cross wrench sleeve, IPEX 1 to SMA cable (~17cm), jumper wires (~20cm), 4PIN PH2.0 cable, servo pack, 8.4V 2A battery charger, screws and standoffs
